Z6 - Torica

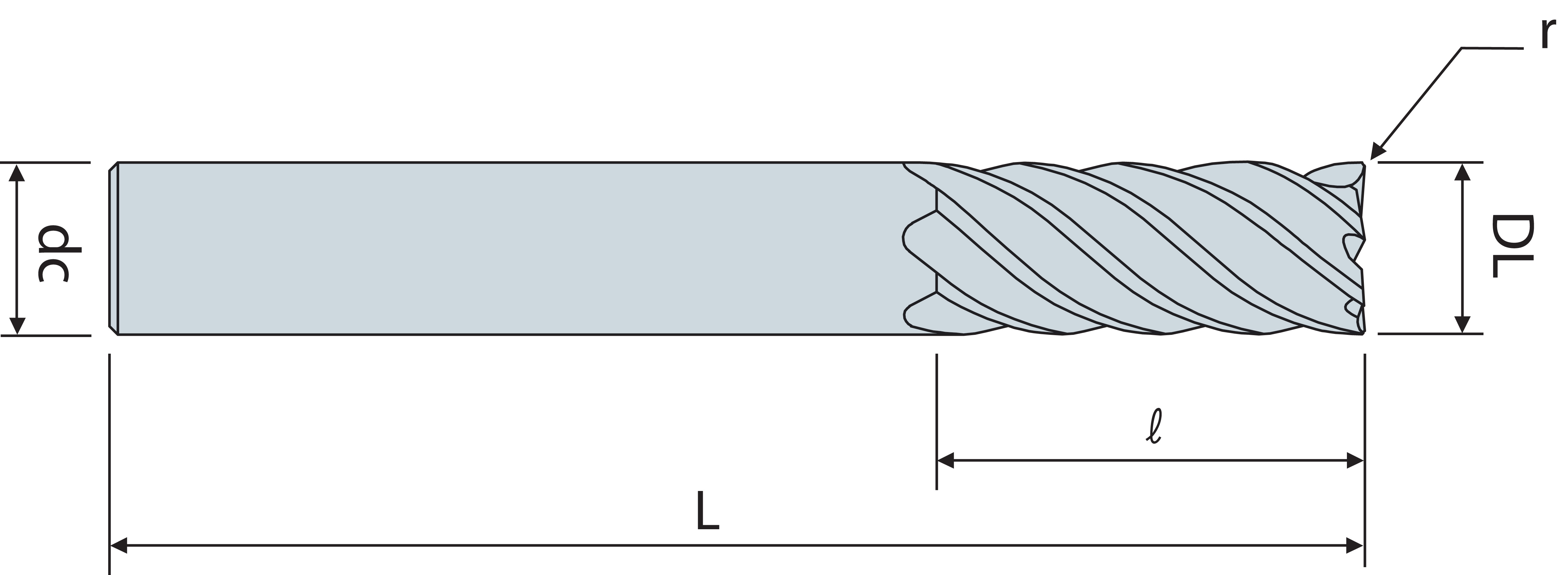

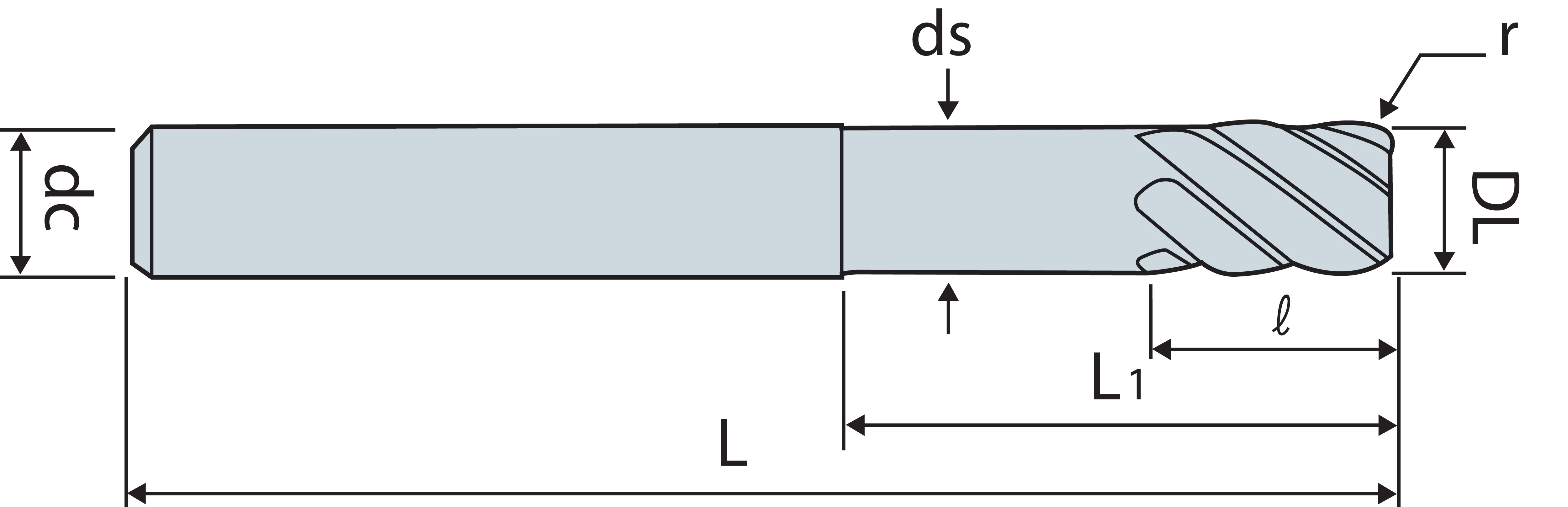

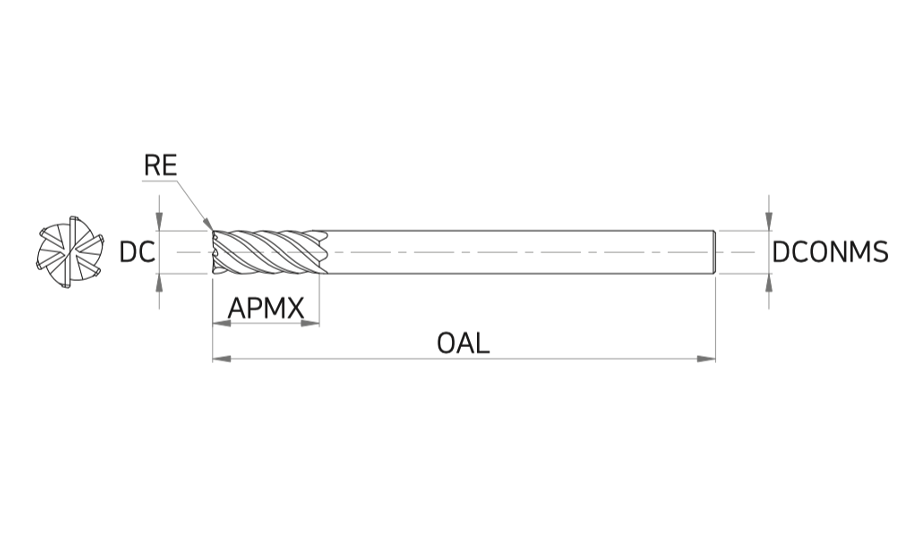

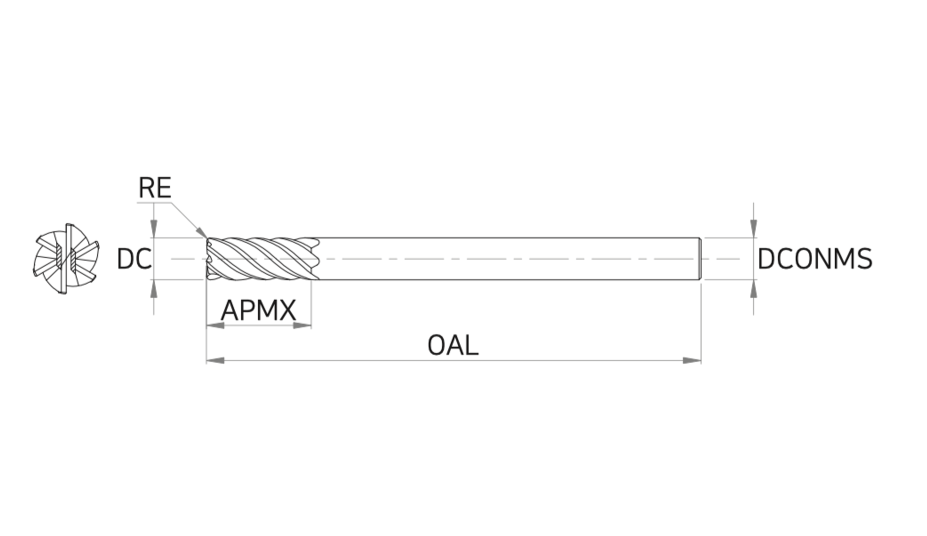

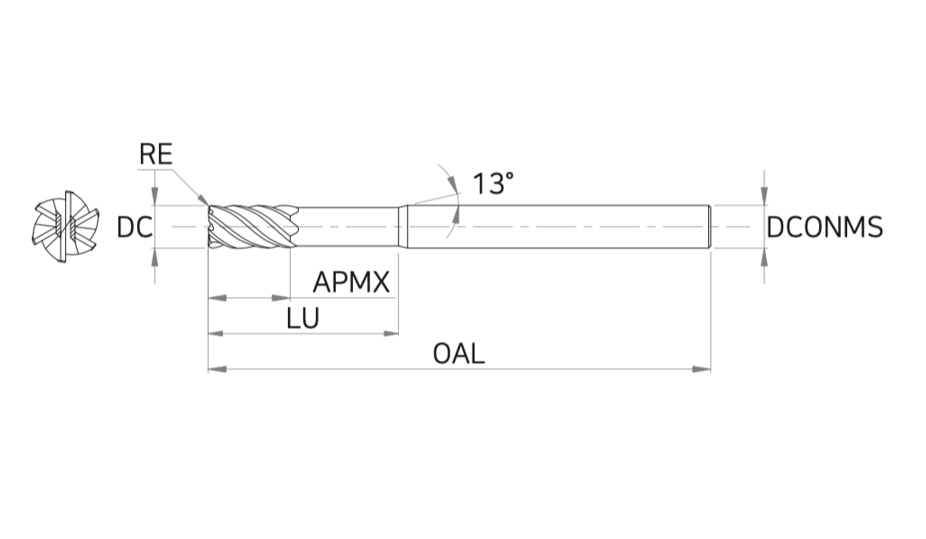

| Codice | Descrizione | Diametro Lavoro (DL) DC | Numero Taglienti (Z) | Diametro Attacco (dc) DCONS-MS (CIL) | HRc | Lunghezza Utile (l) LE/LU/APMX/LCF | Lunghezza (L) OAL | Lunghezza (L1) LU | Raggio RE | Angolo/Elica | Inclinazione (y') BHTA | DN2 | Disp. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
- ESR706 E-STAR   | |||||||||||||||||||||||
| 41554974 | ESR7060600314 - E-STAR FRESA IN MD 6F D6.0 X R0.3X6/14/50-6 | 6.0 | 6 | 6 | 50-63 | 6 | 50 | 14 | 0.3 | 45 | 45 | 1.39 | |||||||||||
| 22316394 | ESR7060600514 - E-STAR FRESA IN MD 6F D6.0XR0.5X6/14/50-6 | 6.0 | 6 | 6 | 50-63 | 6 | 50 | 14 | 0.5 | 45 | 45 | 1.07 | |||||||||||
| 63546883 | ESR7060800524 - E-STAR FRESA IN MD 6F D8,0/R0,5/8/24/60/8 | 8.0 | 6 | 8 | 50-63 | 8 | 60 | 24 | 0.5 | 45 | 45 | 1.54 | |||||||||||
| 63526523 | ESR7060801024 - E-STAR FRESA IN MD 6F D8,0/R1,0/8/24/60/8 | 8.0 | 6 | 8 | 50-63 | 8 | 60 | 24 | 1 | 45 | 45 | 1.21 | |||||||||||
| 73818876 | ESR7061000530 - E-STAR FRESA IN MD 6F D10,0/R0,5/10/30/70/10 | 10.0 | 6 | 10 | 50-63 | 10 | 70 | 30 | 0.5 | 45 | 45 | 1.7 | |||||||||||
| 33954872 | ESR7061001030 - E-STAR FRESA IN MD 6F D10,0/R1,0/10/30/70/10 | 10.0 | 6 | 10 | 50-63 | 10 | 70 | 30 | 1 | 45 | 45 | 1.23 | |||||||||||
| 91589171 | ESR7061200530 - E-STAR FRESA IN MD 6F D12,0/R0,5/12/30/75/12 | 12.0 | 6 | 12 | 50-63 | 12 | 75 | 30 | 0.5 | 45 | 45 | 1.86 | |||||||||||
| 81256100 | ESR7061201030 - E-STAR FRESA IN MD 6F D12,0/R1,0/12/30/75/12 | 12.0 | 6 | 12 | 50-63 | 12 | 75 | 30 | 1 | 45 | 45 | 1.35 | |||||||||||
- ESR736 E-STAR   | |||||||||||||||||||||||
| 39344133 | ESR73606005 - E-STAR FRESA IN MD 6F D6,0/R0,5/15/90/6 | 6.0 | 6 | 6 | 50-63 | 15 | 90 | 0.5 | 45 | 45 | |||||||||||||
| 99792840 | ESR73606010 - E-STAR FRESA IN MD 6F D6,0/R1,0/15/90/6 | 6.0 | 6 | 6 | 50-63 | 15 | 90 | 1 | 45 | 45 | |||||||||||||
| 49616125 | ESR73608005 - E-STAR FRESA IN MD 6F D8,0/R0,5/20/100/8 | 8.0 | 6 | 8 | 50-63 | 20 | 100 | 0.5 | 45 | 45 | |||||||||||||
| 99269480 | ESR73608010 - E-STAR FRESA IN MD 6F D8,0/R1,0/20/100/8 | 8.0 | 6 | 8 | 50-63 | 20 | 100 | 1 | 45 | 45 | |||||||||||||
| 38780053 | ESR73610005 - E-STAR FRESA IN MD 6F D10,0/R0,5/25/100/10 | 10.0 | 6 | 10 | 50-63 | 25 | 100 | 0.5 | 45 | 45 | |||||||||||||
| 38759693 | ESR73610010 - E-STAR FRESA IN MD 6F D10,0/R1,0/25/100/10 | 10.0 | 6 | 10 | 50-63 | 25 | 100 | 1 | 45 | 45 | |||||||||||||
| 59364757 | ESR73612005 - E-STAR FRESA IN MD 6F D12,0/R0,5/30/110/12 | 12.0 | 6 | 12 | 50-63 | 30 | 110 | 0.5 | 45 | 45 | |||||||||||||
| 50438889 | ESR73612010 - E-STAR FRESA IN MD 6F D12,0/R1,0/30/110/12 | 12.0 | 6 | 12 | 50-63 | 30 | 110 | 1 | 45 | 45 | |||||||||||||
- UR506 U-WING   | |||||||||||||||||||||||
| 99829163 | UR50606003 - U-WING FRESA IN MD 6F D6,0/R0,3/15/90/6 | 6.0 | 6 | 6 | 30-50 | 15 | 90 | 0.3 | 45 | ||||||||||||||
| 37952891 | UR50606005 - U-WING FRESA IN MD 6F D6,0/R0,5/15/90/6 | 6.0 | 6 | 6 | 30-50 | 15 | 90 | 0.5 | 45 | ||||||||||||||
| 15920262 | UR50606010 - U-WING FRESA IN MD 6F D6,0/R1,0/15/90/6 | 6.0 | 6 | 6 | 30-50 | 15 | 90 | 1 | 45 | ||||||||||||||
| 73574921 | UR50608003 - U-WING FRESA IN MD 6F D8,0/R0,3/20/100/8 | 8.0 | 6 | 8 | 30-50 | 20 | 100 | 0.3 | 45 | ||||||||||||||
| 11698649 | UR50608005 - U-WING FRESA IN MD 6F D8,0/R0,5/20/100/8 | 8.0 | 6 | 8 | 30-50 | 20 | 100 | 0.5 | 45 | ||||||||||||||
| 79666021 | UR50608010 - U-WING FRESA IN MD 6F D8,0/R1,0/20/100/8 | 8.0 | 6 | 8 | 30-50 | 20 | 100 | 1 | 45 | ||||||||||||||
| 67946104 | UR50610003 - U-WING FRESA IN MD 6F D10,0/R0,3/25/100/10 | 10.0 | 6 | 10 | 30-50 | 25 | 100 | 0.3 | 45 | ||||||||||||||
| 45913476 | UR50610005 - U-WING FRESA IN MD 6F D10,0/R0,5/25/100/10 | 10.0 | 6 | 10 | 30-50 | 25 | 100 | 0.5 | 45 | ||||||||||||||
| 84349915 | UR50610010 - U-WING FRESA IN MD 6F D10,0/R1,0/25/100/10 | 10.0 | 6 | 10 | 30-50 | 25 | 100 | 1 | 45 | ||||||||||||||
| 32786355 | UR50612003 - U-WING FRESA IN MD 6F D12,0/R0,3/30/110/12 | 12.0 | 6 | 12 | 30-50 | 30 | 110 | 0.3 | 45 | ||||||||||||||
| 21066438 | UR50612005 - U-WING FRESA IN MD 6F D12,0/R0,5/30/110/12 | 12.0 | 6 | 12 | 30-50 | 30 | 110 | 0.5 | 45 | ||||||||||||||
| 19659234 | UR50612010 - U-WING FRESA IN MD 6F D12,0/R1,0/30/110/12 | 12.0 | 6 | 12 | 30-50 | 30 | 110 | 1 | 45 | ||||||||||||||
| 68408386 | UR50616005 - U-WING FRESA IN MD 6F D16,0/R0,5/32/150/16 | 16.0 | 6 | 16 | 30-50 | 32 | 150 | 0.5 | 45 | ||||||||||||||
| 16844825 | UR50616010 - U-WING FRESA IN MD 6F D16,0/R1,0/32/150/16 | 16.0 | 6 | 16 | 30-50 | 32 | 150 | 1 | 45 | ||||||||||||||
| 44968553 | UR50616015 - U-WING FRESA IN MD 6F D16,0/R1,5/32/150/16 | 16.0 | 6 | 16 | 30-50 | 32 | 150 | 1.5 | 45 | ||||||||||||||
| 83404993 | UR50616020 - U-WING FRESA IN MD 6F D16,0/R2,0/32/150/16 | 16.0 | 6 | 16 | 30-50 | 32 | 150 | 2.0 | 45 | ||||||||||||||
| 31841431 | UR50620005 - U-WING FRESA IN MD 6F D20,0/R0,5/38/150/20 | 20.0 | 6 | 20 | 30-50 | 38 | 150 | 0.5 | 45 | ||||||||||||||
| 59965159 | UR50620010 - U-WING FRESA IN MD 6F D20,0/R1,0/38/150/20 | 20.0 | 6 | 20 | 30-50 | 38 | 150 | 1 | 45 | ||||||||||||||
| 58557955 | UR50620015 - U-WING FRESA IN MD 6F D20,0/R1,5/38/150/20 | 20.0 | 6 | 20 | 30-50 | 38 | 150 | 1.5 | 45 | ||||||||||||||
| 36525327 | UR50620020 - U-WING FRESA IN MD 6F D20,0/R2,0/38/150/20 | 20.0 | 6 | 20 | 30-50 | 38 | 150 | 2.0 | 45 | ||||||||||||||
- ZR706 ZAMUS STAR   | |||||||||||||||||||||||
| 12372919 | ZR7060600314 - ZAMUS STAR FRESA IN MD 6F D6,0/R0,3/6/14/50/6 | 6.0 | 6 | 6 | Fino a 70 | 6 | 50 | 14 | 0.3 | 45 | 45 | ||||||||||||
| 12372920 | ZR7060600514 - ZAMUS STAR FRESA IN MD 6F D6,0/R0,5/6/14/50/6 | 6.0 | 6 | 6 | Fino a 70 | 6 | 50 | 14 | 0.5 | 45 | 45 | ||||||||||||
| 12371779 | ZR7060800524 - ZAMUS STAR FRESA IN MD 6F D8,0/R0,5/8/24/60/8 | 8.0 | 6 | 8 | Fino a 70 | 8 | 60 | 24 | 0.5 | 45 | 45 | ||||||||||||
| 12371780 | ZR7060801024 - ZAMUS STAR FRESA IN MD 6F D8,0/R1,0/8/24/60/8 | 8.0 | 6 | 8 | Fino a 70 | 8 | 60 | 24 | 1 | 45 | 45 | ||||||||||||
| 12370810 | ZR7061000530 - ZAMUS STAR FRESA IN MD 6F D10,0/R0,5/10/30/70/10 | 10.0 | 6 | 10 | Fino a 70 | 10 | 70 | 30 | 0.5 | 45 | 45 | ||||||||||||
| 12370809 | ZR7061001030 - ZAMUS STAR FRESA IN MD 6F D10,0/R1,0/10/30/70/10 | 10.0 | 6 | 10 | Fino a 70 | 10 | 70 | 30 | 1 | 45 | 45 | ||||||||||||
| 12371823 | ZR7061200530 - ZAMUS STAR FRESA IN MD 6F D12,0/R0,5/12/30/75/12 | 12.0 | 6 | 12 | Fino a 70 | 12 | 75 | 30 | 0.5 | 45 | 45 | ||||||||||||
| 12371824 | ZR7061201030 - ZAMUS STAR FRESA IN MD 6F D12,0/R1,0/12/30/75/12 | 12.0 | 6 | 12 | Fino a 70 | 12 | 75 | 30 | 1 | 45 | 45 | ||||||||||||
- ZR736 ZAMUS STAR   | |||||||||||||||||||||||
| 12373087 | ZR73606005 - ZAMUS STAR FRESA IN MD 6F D6,0/R0,5/15/90/6 | 6.0 | 6 | 6 | Fino a 70 | 15 | 90 | 0.5 | 45 | 45 | |||||||||||||
| 59796991 | ZR73606010 - ZAMUS STAR FRESA IN MD 6F D6,0/R1,0/15/90/6 | 6.0 | 6 | 6 | Fino a 70 | 15 | 90 | 1 | 45 | 45 | |||||||||||||
| 12372056 | ZR73608005 - ZAMUS STAR FRESA IN MD 6F D8,0/R0,5/20/100/8 | 8.0 | 6 | 8 | Fino a 70 | 20 | 100 | 0.5 | 45 | 45 | |||||||||||||
| 36357158 | ZR73608010 - ZAMUS STAR FRESA IN MD 6F D8,0/R1,0/20/100/8 | 8.0 | 6 | 8 | Fino a 70 | 20 | 100 | 1 | 45 | 45 | |||||||||||||
| 12372058 | ZR73610005 - ZAMUS STAR FRESA IN MD 6F D10,0/R0,5/25/100/10 | 10.0 | 6 | 10 | Fino a 70 | 25 | 100 | 0.5 | 45 | 45 | |||||||||||||
| 12371908 | ZR73610010 - ZAMUS STAR FRESA IN MD 6F D10,0/R1,0/25/100/10 | 10.0 | 6 | 10 | Fino a 70 | 25 | 100 | 1 | 45 | 45 | |||||||||||||
| 12371909 | ZR73612005 - ZAMUS STAR FRESA IN MD 6F D12,0/R0,5/30/110/12 | 12.0 | 6 | 12 | Fino a 70 | 30 | 110 | 0.5 | 45 | 45 | |||||||||||||
| 12371910 | ZR73612010 - ZAMUS STAR FRESA IN MD 6F D12,0/R1,0/30/110/12 | 12.0 | 6 | 12 | Fino a 70 | 30 | 110 | 1 | 45 | 45 | |||||||||||||
