Punte da Centro

Diametro

D2 D.Gambo

L1 L.Utile

Angolo

HRc

Codice	Descrizione	Diametro	D2 D.Gambo	L1 L.Utile	L2	Angolo
61628080	CESP45-30203 45° D3 TIALN PUNTA DA CENTRO

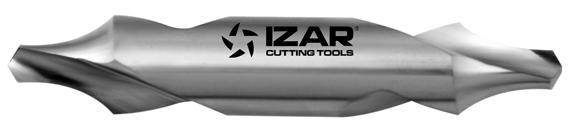

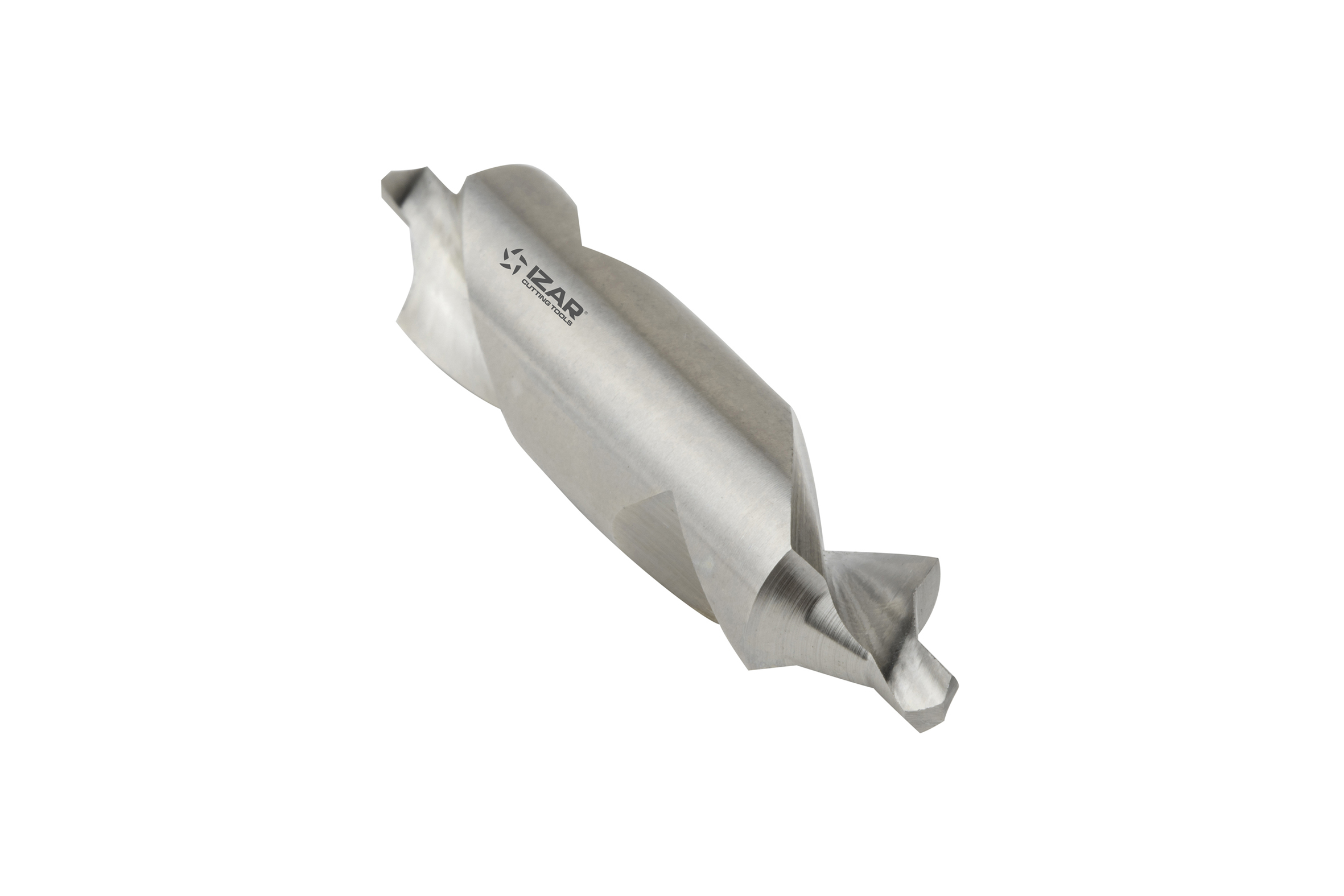

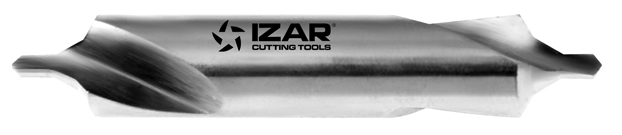

CDS
12367244	CDS020 D2.0X3/45-5-120°	2	5	3	45	120
12368336	CDS010 D1.0X1.5/40-3-120°	1	3	1,5	40	120
12369040	CDS030 D3.0X4.8/55-8-120°	3	8	4,8	55	120
12369124	CDS015 D1.5X2.2/40-4-120°	1,5	4	2,2	40	120
12370367	CDS040 D4.0X6/60-10-120°	4	10	6	60	120
12372524	CDS025 D2.5X3.8/45-6-120°	2,5	6	3,8	45	120
12373257	CDS050 D5.0X7.5/65-12-120°	5	12	7,5	65	120
LDF
12373264	LDF0360W D3.0X9/50-3-60°	5	5	12	50	60

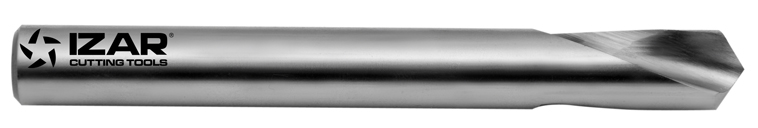

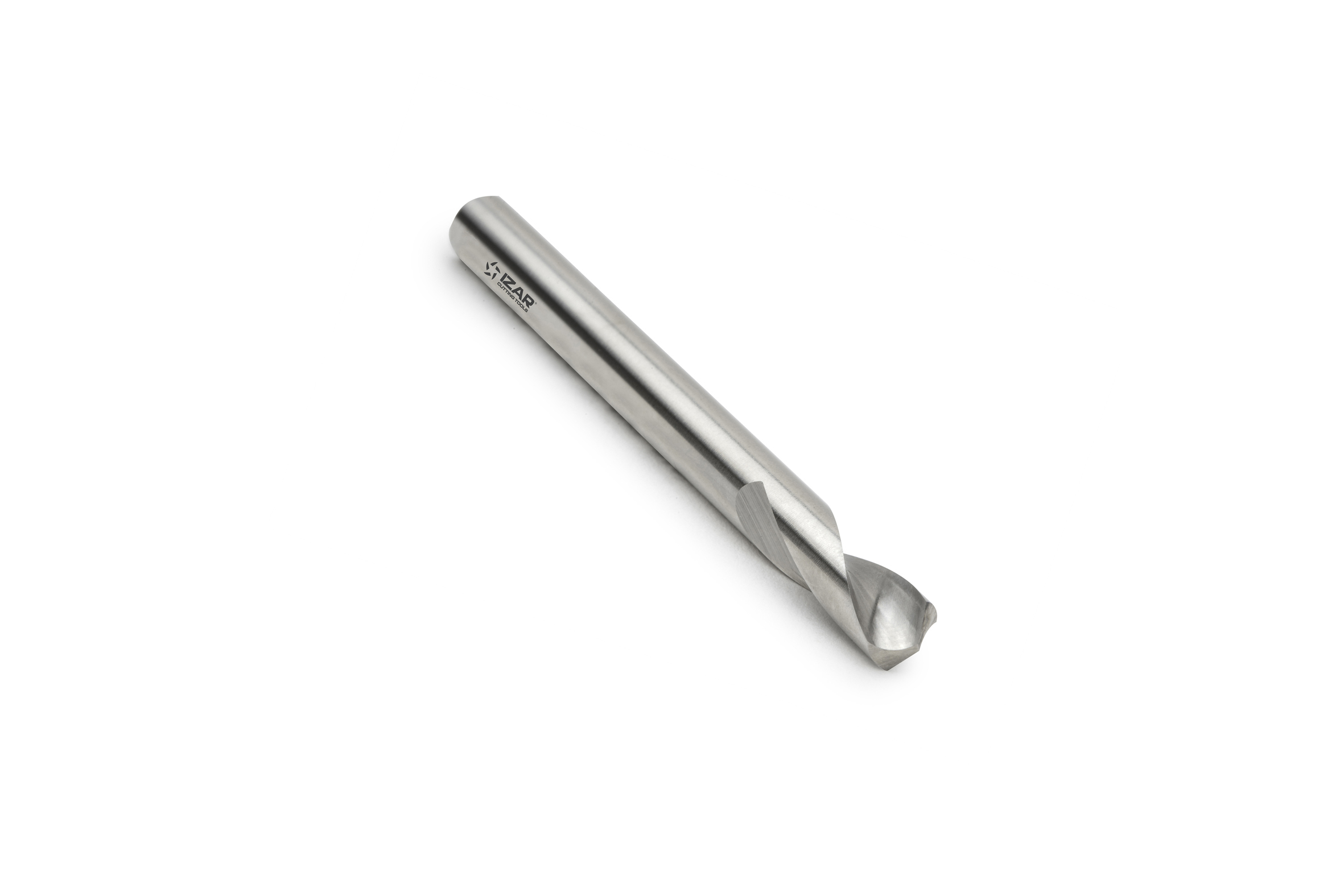

LDS
10733702	LDS120 D12.0X28/80-12 90°	12	12	28	80	90
12369320	LDS030A D3.0X9/50-3-120°	3	3	9	50	120
12373137	LDS160A D16.0X32/90-16-120°	16	16	32	90	120
12373157	LDS050A D5.0X12/50-5-120°	5	5	12	50	120
12373565	LDS050 D5.0X12/50-5-90°	5	5	12	50	90
12374344	LDS200A D20.0X35/100-20-120°	20	20	35	100	120
12374569	LDS200 D20.0X35/100-20 90°	20	20	35	100	90
12794075	LDS100A D10.0X24/80-10-120°	10	10	24	80	120
26674168	LDS100 D10.0X24/80-10 90°	10	10	24	80	90
40917800	LDS120A D12.0X28/80-12-120°	12	12	28	80	120
43691151	LDS080 D8.0X23/70-8 90°	8	8	23	70	90
46546617	LDS060A D6.0X13/60-6-120°	6	6	13	60	120
54466143	LDS060 D6.0X13/60-6-90°	6	6	13	60	90
60577602	LDS030 D3.0X9/50-3 90°	3	3	9	50	90
68579244	LDS040A D4.0X10/50-4-120°	4	4	10	50	120
69041525	LDS160 D16.0X32/90-16 90°	16	16	32	90	90
74670342	LDS080A D8.0X23/70-8-120°	8	8	23	70	120
84479714	LDS040 D4.0X10/50-4 90°	4	4	10	50	90
LPSP
11491135	LPSP080 PUNTA METALLO DURO LUNGA D8.0 X 17/165-8
83680112	LPSP060 PUNTA METALLO DURO LUNGA D6.0 X 15/139-6
