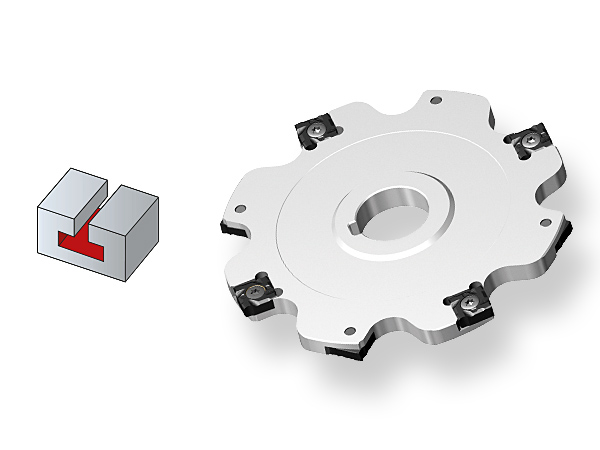

Frese a Disco

Diametro Lavoro (DL)

Numero Taglienti (Z)

Spessore di Lavoro (W)

Spessore Totale (E)

Profondit� Massima (T max)

Diametro Attacco a Manicotto (dm)

Altezza (H)

Diametro Attacco (dc)

Lunghezza Utile (l)

Lunghezza (L)

Diametro (D)

F/L

Diametro (d)

Interasse (D1)

Codice	Descrizione	Diametro Lavoro (DL)	Numero Taglienti (Z)	Spessore di Lavoro (W)	Spessore Totale (E)	Profondit� Massima (T max)	Diametro Attacco a Manicotto (dm)	Altezza (H)	Diametro Attacco (dc)	Lunghezza Utile (l)	Lunghezza (L)	Diametro (D)	F/L	Diametro (d)	Interasse (D1)

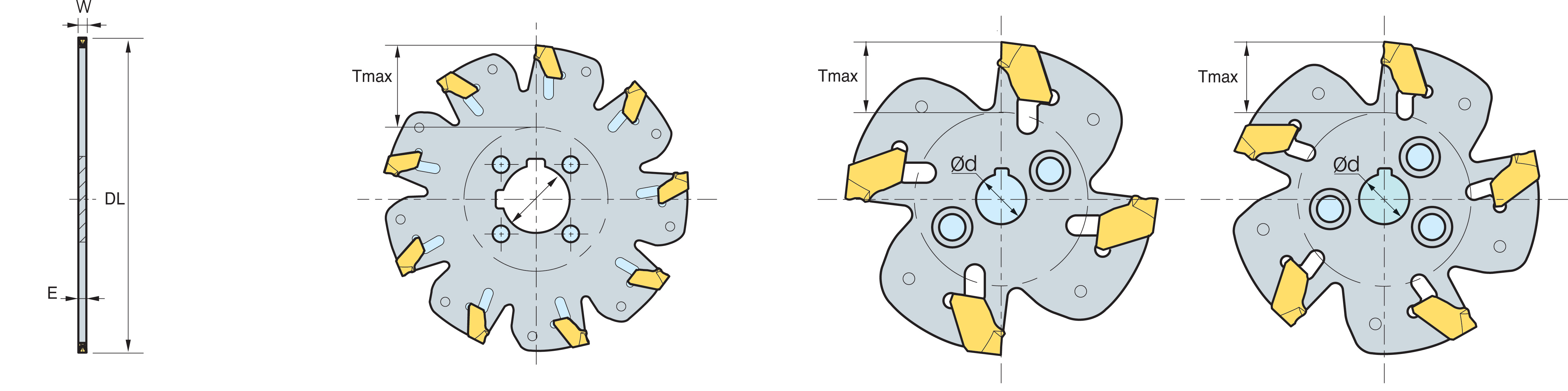

SPS..2
12356071	SPS050-0204-08R CORPO FRESA A DISCO	50	4	2.2	1.8	11	8
12356072	SPS063-0205-10R CORPO FRESA A DISCO
12356073	SPS080-0207-22R/F CORPO FRESA A DISCO	80	7	2.2	1.8	17	22
12356075	SPS100-0209-22R/F CORPO FRESA A DISCO	100	9	2.2	1.8	27	22
12356077	SPS125-0211-32F CORPO FRESA A DISCO	125	11	2.2	1.8	35	32
12356078	SPS160-0214-32F CORPO FRESA A DISCO	160	14	2.2	1.8	52.5	32
49116550	SPS200-0417-40F CORPO FRESA A DISCO	200	17	4.0	3.4	60	40
SPS..3
12356155	SPS063-0305-10R CORPO FRESA A DISCO	63	5	3.0	2.55	15.5	10
12356074	SPS080-0307-22R/F CORPO FRESA A DISCO	80	7	3.0	2.55	17	22
12356076	SPS100-0309-22R/F CORPO FRESA A DISCO	100	9	3.0	2.55	27	22
12356156	SPS125-0311-32F CORPO FRESA A DISCO	125	11	3.0	2.55	35	32
12356157	SPS160-0314-32F CORPO FRESA A DISCO	160	14	3.0	2.55	52.5	32
12356158	SPS200-0318-40F CORPO FRESA A DISCO	200	18	3.0	2.55	60	40
SPS..4
95649676	SPS080-0406-22R/F CORPO FRESA A DISCO	80	6	4.0	3.4	17	22
26717023	SPS100-0408-22R/F CORPO FRESA A DISCO	100	8	4.0	3.4	27	22
72631407	SPS125-0410-32F CORPO FRESA A DISCO	125	10	4.0	3.4	35	32
40265707	SPS160-0413-32F CORPO FRESA A DISCO	160	13	4.0	3.4	52.5	32

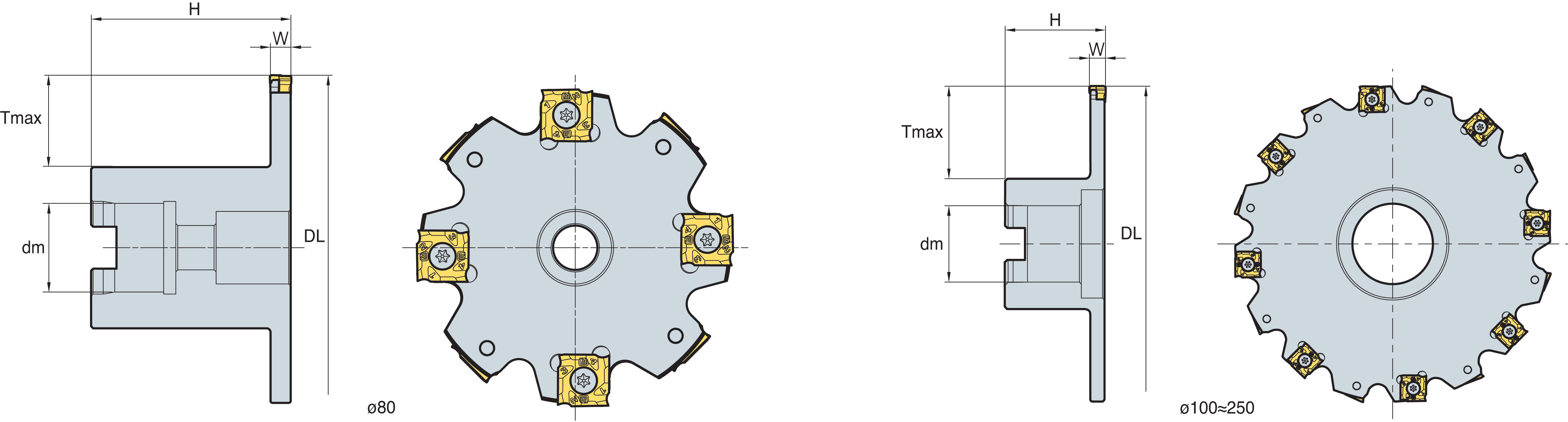

WFSBM-04
12356160	WFSBM080R-T04 CORPO FRESA A DISCO - MANICOTTO	80	8	4		17	22	50
12356163	WFSBM100R-T04 CORPO FRESA A DISCO - MANICOTTO	100	10	4		21	27	50
12356170	WFSBM125R-T04 CORPO FRESA A DISCO - MANICOTTO	125	12	4		30	32	50
12356176	WFSBM160R-T04 CORPO FRESA A DISCO - MANICOTTO	160	16	4		43	40	60
WFSBM-05
12356161	WFSBM080R-T05 CORPO FRESA A DISCO - MANICOTTO	80	8	5		17	22	50
12356164	WFSBM100R-T05 CORPO FRESA A DISCO - MANICOTTO	100	10	5		21	27	50
12356171	WFSBM125R-T05 CORPO FRESA A DISCO - MANICOTTO	125	12	5		30	32	50
12356177	WFSBM160R-T05 CORPO FRESA A DISCO - MANICOTTO	160	16	5		43	40	60
WFSBM-06
12356162	WFSBM080R-T06 CORPO FRESA A DISCO - MANICOTTO	80	8	6		17	22	50
12356165	WFSBM100R-T06 CORPO FRESA A DISCO - MANICOTTO	100	10	6		21	27	50
12356172	WFSBM125R-T06 CORPO FRESA A DISCO - MANICOTTO	125	12	6		30	32	50
12356178	WFSBM160R-T06 CORPO FRESA A DISCO - MANICOTTO	160	16	6		43	40	60
21600220	WFSBM200R-T06 CORPO FRESA A DISCO - MANICOTTO	200	18	6		53	40	65
67450825	WFSBM250R-T06 CORPO FRESA A DISCO - MANICOTTO	250	20	6		78	40	65
68820009	WFSBM250R-T07 CORPO FRESA A DISCO - MANICOTTO	250	20	7		78	40	65
WFSBM-07
12356166	WFSBM100R-T07 CORPO FRESA A DISCO - MANICOTTO	100	10	7		21	27	50
12356173	WFSBM125R-T07 CORPO FRESA A DISCO - MANICOTTO	125	12	7		30	32	50
12356179	WFSBM160R-T07 CORPO FRESA A DISCO - MANICOTTO	160	16	7		43	40	60
30485368	WFSBM200R-T07 CORPO FRESA A DISCO - MANICOTTO	200	18	7		53	40	65
58751641	WFSPM200-T07 CORPO FRESA A DISCO	200	18	7	10	60	50						10
WFSBM-08
12356167	WFSBM100R-T08 CORPO FRESA A DISCO - MANICOTTO	100	10	8		21	27	50
12356174	WFSBM125R-T08 CORPO FRESA A DISCO - MANICOTTO	125	12	8		30	32	50
12356180	WFSBM160R-T08 CORPO FRESA A DISCO - MANICOTTO	160	16	8		43	40	60
12356189	WFSBM200R-T08 CORPO FRESA A DISCO - MANICOTTO	200	18	8		53	40	65
49581429	WFSBM250R-T08 CORPO FRESA A DISCO - MANICOTTO	250	20	8		78	40	65
WFSBM-09
12356168	WFSBM100R-T09 CORPO FRESA A DISCO - MANICOTTO	100	10	9		21	27	50
12356175	WFSBM125R-T09 CORPO FRESA A DISCO - MANICOTTO	125	12	9		30	32	50
12356181	WFSBM160R-T09 CORPO FRESA A DISCO - MANICOTTO	160	16	9		43	40	60
37963312	WFSBM200R-T09 CORPO FRESA A DISCO - MANICOTTO	200	18	9		53	40	65
49561070	WFSBM250R-T09 CORPO FRESA A DISCO - MANICOTTO	250	20	9		78	40	65
WFSBM-10
12356169	WFSBM100R-T10 CORPO FRESA A DISCO - MANICOTTO	100	10	10		21	27	50
12356159	WFSBM125R-T10 CORPO FRESA A DISCO - MANICOTTO	125	12	10		30	32	50
12356182	WFSBM160R-T10 CORPO FRESA A DISCO - MANICOTTO	160	16	10		43	40	60
12356191	WFSBM200R-T10 CORPO FRESA A DISCO - MANICOTTO	200	18	10		53	40	65
58446217	WFSBM250R-T10 CORPO FRESA A DISCO - MANICOTTO	250	20	10		78	40	65
WFSBM-11
12356183	WFSBM160R-T11 CORPO FRESA A DISCO - MANICOTTO	160	16	11		43	40	60
68881088	WFSBM200R-T11 CORPO FRESA A DISCO - MANICOTTO	200	18	11		53	40	65
85142380	WFSBM250R-T11 CORPO FRESA A DISCO - MANICOTTO	250	20	11		78	40	65
WFSBM-12
12356184	WFSBM160R-T12 CORPO FRESA A DISCO - MANICOTTO	160	16	12		43	40	60
88078948	WFSBM200R-T12 CORPO FRESA A DISCO - MANICOTTO	200	18	12		53	40	65
65903801	WFSBM250R-T12 CORPO FRESA A DISCO - MANICOTTO	250	20	12		78	40	65
WFSBM-13
12356185	WFSBM160R-T13 CORPO FRESA A DISCO - MANICOTTO	160	16	13		43	40	60
68840370	WFSBM200R-T13 CORPO FRESA A DISCO - MANICOTTO	200	18	13		53	40	65
96821576	WFSBM250R-T13 CORPO FRESA A DISCO - MANICOTTO	250	20	13		78	40	65
WFSBM-14
12356186	WFSBM160R-T14 CORPO FRESA A DISCO - MANICOTTO	160	16	14		43	40	60
12356195	WFSBM200R-T14 CORPO FRESA A DISCO - MANICOTTO	200	18	14		53	40	65
73361385	WFSBM250R-T14 CORPO FRESA A DISCO - MANICOTTO	250	20	14		78	40	65
12356241	WFSPM200-T14 CORPO FRESA A DISCO	200	18	14	16	60	50						16

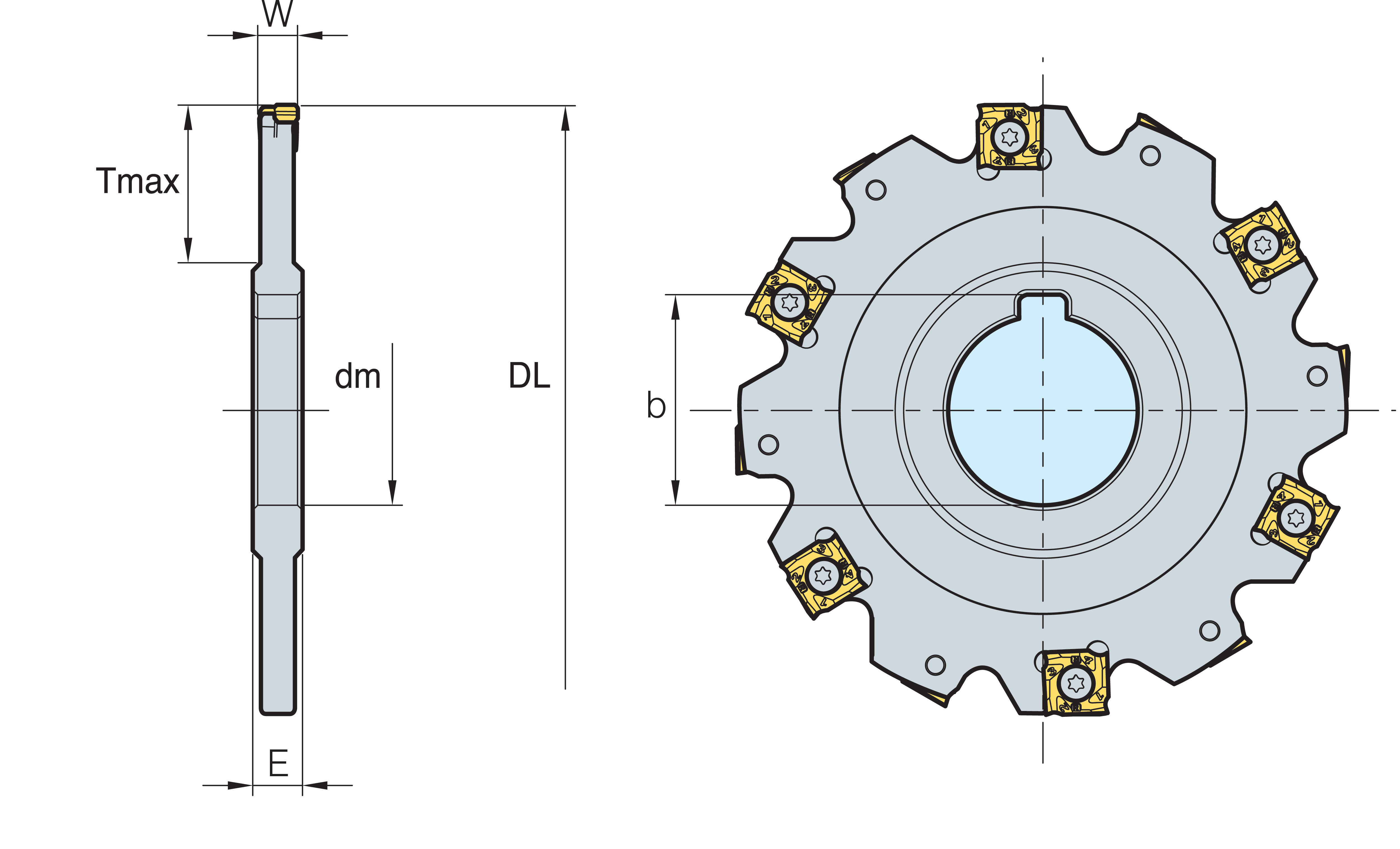

WFSPM-04
12356205	WFSPM080-T04 CORPO FRESA A DISCO	80	8	4	8	20	27						8
12356208	WFSPM100-T04 CORPO FRESA A DISCO	100	10	4	8	24	32						8
12356215	WFSPM125-T04 CORPO FRESA A DISCO	125	12	4	8	32	40						8
12356222	WFSPM160-T04 CORPO FRESA A DISCO	160	16	4	8	45	40						8
WFSPM-05
12356206	WFSPM080-T05 CORPO FRESA A DISCO	80	8	5	8	20	27						8
12356209	WFSPM100-T05 CORPO FRESA A DISCO	100	10	5	8	24	32						8
12356216	WFSPM125-T05 CORPO FRESA A DISCO	125	12	5	8	32	40						8
12356223	WFSPM160-T05 CORPO FRESA A DISCO	160	16	5	8	45	40						8
WFSPM-06
12356207	WFSPM080-T06 CORPO FRESA A DISCO	80	8	6	8	20	27						8
12356210	WFSPM100-T06 CORPO FRESA A DISCO	100	10	6	8	24	32						8
12356217	WFSPM125-T06 CORPO FRESA A DISCO	125	12	6	8	32	40						8
12356224	WFSPM160-T06 CORPO FRESA A DISCO	160	16	6	8	45	40						8
52765809	WFSPM200-T06 CORPO FRESA A DISCO	200	18	6	8	60	50						8
66219951	WFSPM250-T06 CORPO FRESA A DISCO	250	20	6	8	88	50						8
WFSPM-07
12356211	WFSPM100-T07 CORPO FRESA A DISCO	100	10	7	10	24	32						10
12356218	WFSPM125-T07 CORPO FRESA A DISCO	125	12	7	10	32	40						10
12356225	WFSPM160-T07 CORPO FRESA A DISCO	160	16	7	10	45	40						10
86825016	WFSPM250-T07 CORPO FRESA A DISCO	250	20	7	10	88	50						10
WFSPM-08
12356212	WFSPM100-T08 CORPO FRESA A DISCO	100	10	8	10	24	32						10
12356219	WFSPM125-T08 CORPO FRESA A DISCO	125	12	8	10	32	40						10
12356226	WFSPM160-T08 CORPO FRESA A DISCO	160	16	8	10	45	40						10
78966230	WFSPM200-T08 CORPO FRESA A DISCO	200	18	8	10	60	50						10
46961013	WFSPM250-T08 CORPO FRESA A DISCO	250	20	8	10	88	50						10
WFSPM-09
12356213	WFSPM100-T09 CORPO FRESA A DISCO	100	10	9	12	24	32						12
12356220	WFSPM125-T09 CORPO FRESA A DISCO	125	12	9	12	32	40						12
12356227	WFSPM160-T09 CORPO FRESA A DISCO	160	16	9	12	45	40						12
65818750	WFSPM200-T09 CORPO FRESA A DISCO	200	18	9	12	60	50						12
73657176	WFSPM250-T09 CORPO FRESA A DISCO	250	20	9	12	88	50						12
WFSPM-10
12356214	WFSPM100-T10 CORPO FRESA A DISCO	100	10	10	12	24	32						12
12356221	WFSPM125-T10 CORPO FRESA A DISCO	125	12	10	12	32	40						12
12356228	WFSPM160-T10 CORPO FRESA A DISCO	160	16	10	12	45	40						12
73794615	WFSPM200-T10 CORPO FRESA A DISCO	200	18	10	12	60	50						12
15982156	WFSPM250-T10 CORPO FRESA A DISCO	250	20	10	12	88	50						12
WFSPM-11
12356229	WFSPM160-T11 CORPO FRESA A DISCO	160	16	11	14	45	40						14
64391184	WFSPM200-T11 CORPO FRESA A DISCO	200	18	11	14	60	50						14
10332980	WFSPM250-T11 CORPO FRESA A DISCO	250	20	11	14	88	50						14
WFSPM-12
12356230	WFSPM160-T12 CORPO FRESA A DISCO	160	16	12	14	45	40						14
17769631	WFSPM200-T12 CORPO FRESA A DISCO	200	18	12	14	60	50						14
39843551	WFSPM250-T12 CORPO FRESA A DISCO	250	20	12	14	88	50						14
WFSPM-13
12356231	WFSPM160-T13 CORPO FRESA A DISCO	160	16	13	16	45	40						16
92494552	WFSPM200-T13 CORPO FRESA A DISCO	200	18	13	16	60	50						16
10292261	WFSPM250-T13 CORPO FRESA A DISCO	250	20	13	16	88	50						16
WFSPM-14
12356232	WFSPM160-T14 CORPO FRESA A DISCO	160	16	14	16	45	40						16
72148172	WFSPM250-T14 CORPO FRESA A DISCO	250	20	14	16	88	50						16

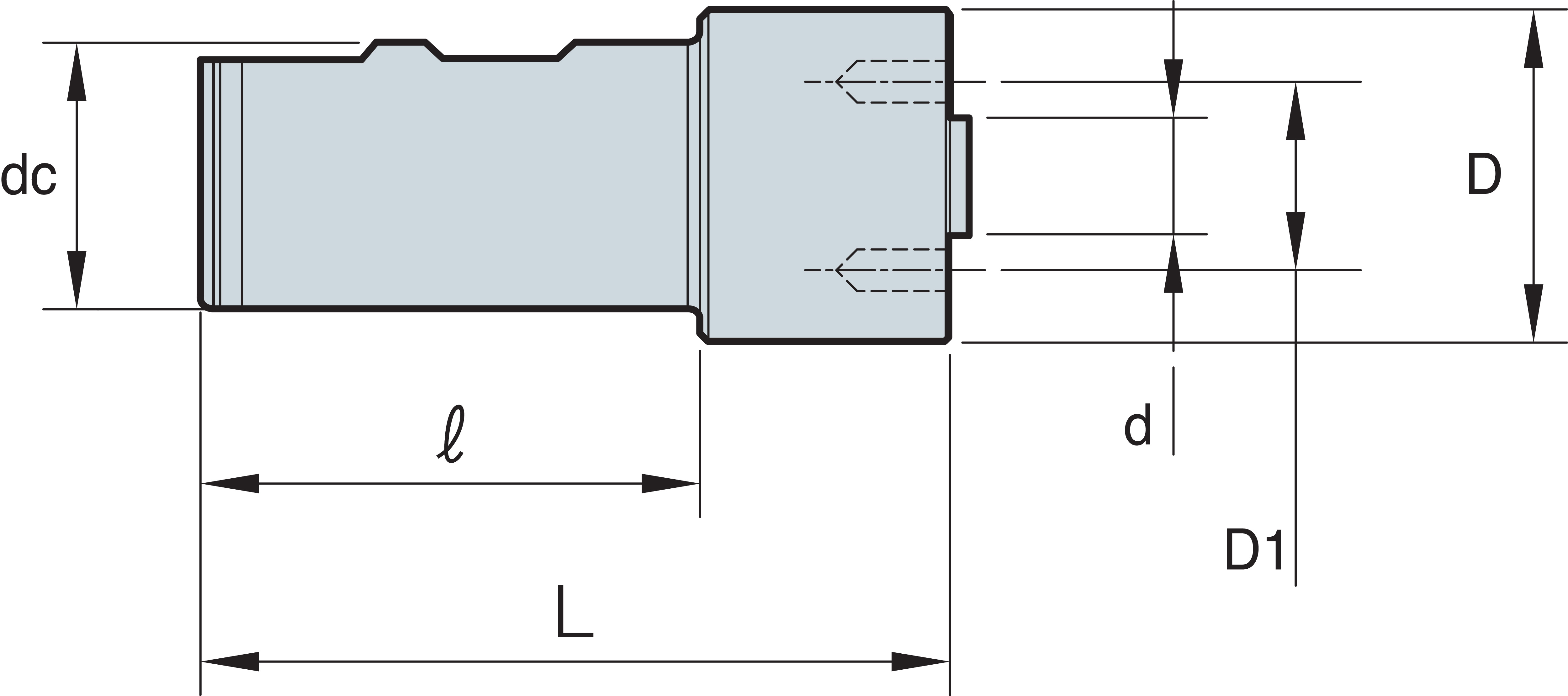

WS2528

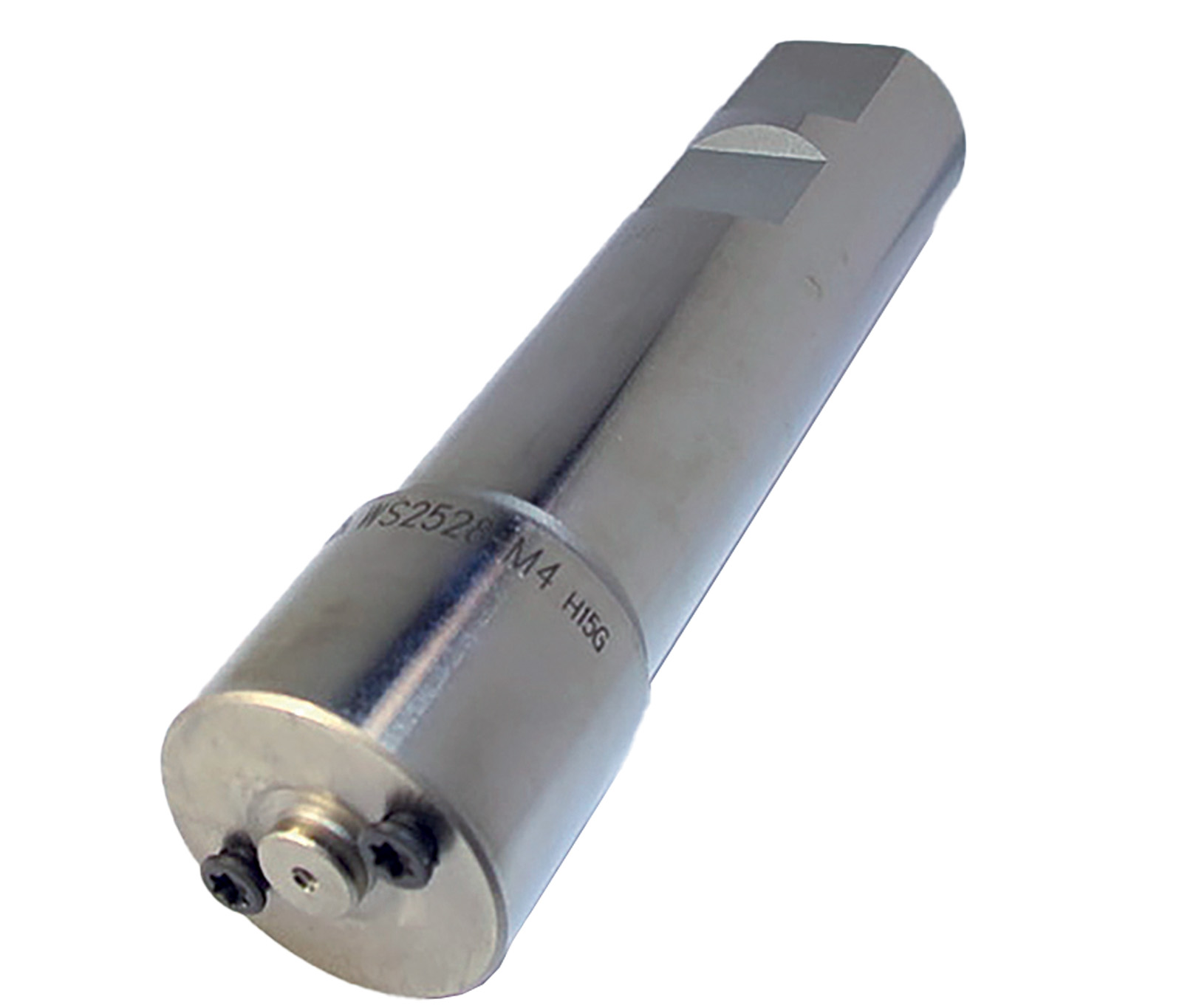

12356280	WS2528-M4 ATTACCO FRESA A DISCO								25	85	110	28		8	18
WS2532
12356281	WS2532-M5 ATTACCO FRESA A DISCO								25	85	110	32		10	22
WS3240
12356282	WS3240-M5 ATTACCO FRESA A DISCO								32	90	120	40		22	32
