Z3 - PIANA

Codice Descrizione DiametroHRcL2L1 L.UtileL3 L.ScaricoD2 D.Gambo Disp.

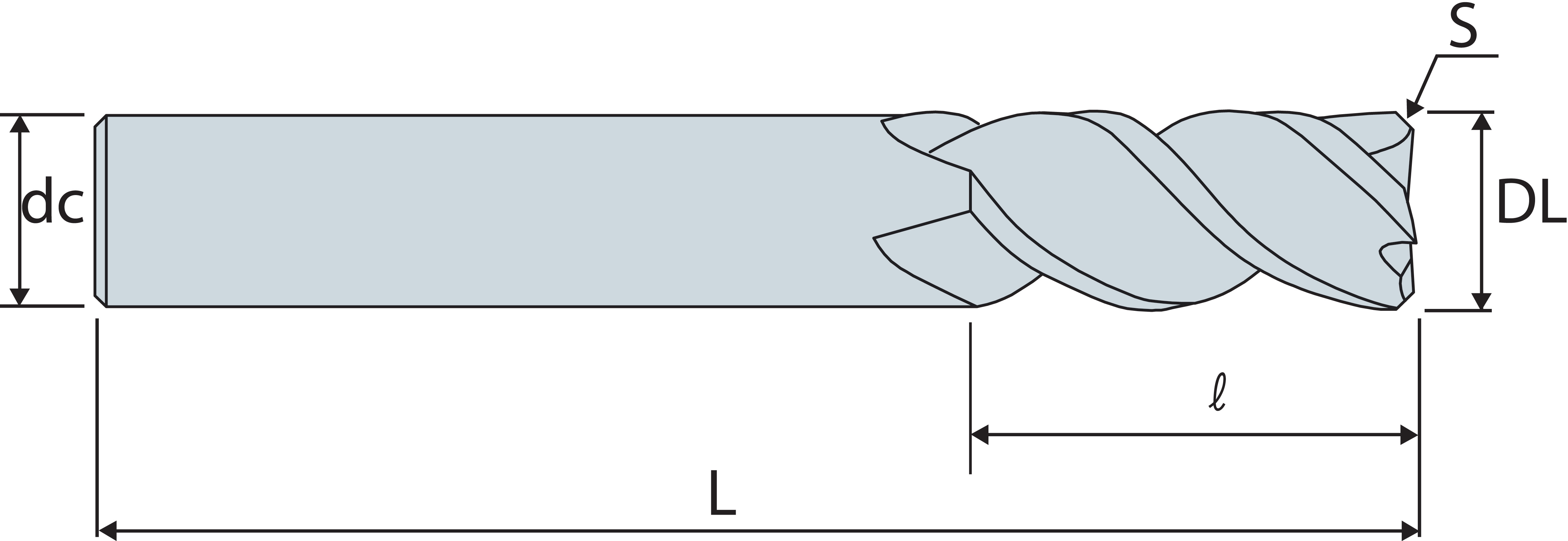

SE503 S-WING
25657497 SE503010 - S-WING FRESA IN MD 3F D1,0/2,5/7,5/50/6 1INOX502.57.56
73718673 SE503012 - S-WING FRESA IN MD 3F D1,2/3/8/50/6 1.2INOX50386
61998756 SE503015 - S-WING FRESA IN MD 3F D1,5/4/9/50/6 1.5INOX50496
98834420 SE503020 - S-WING FRESA IN MD 3F D2,0/6/11/50/6 2INOX506116
59184347 SE503025 - S-WING FRESA IN MD 3F D2,5/7/12/50/6 2.5INOX507126
25787860 SE503030 - S-WING FRESA IN MD 3F D3,0/8/13/55/6 3INOX558136
66682651 SE50303010 - S-WING FRESA IN MD 3F D3,0/10/15/60/6 3INOX6010156
85685623 SE503040 - S-WING FRESA IN MD 3F D4,0/10/15/55/6 4INOX5510156
53555529 SE50304012 - S-WING FRESA IN MD 3F D4,0/12/17/60/6 4INOX6012176
22928728 SE503050 - S-WING FRESA IN MD 3F D5,0/13/18/55/6 5INOX5513186
61053833 SE503060 - S-WING FRESA IN MD 3F D6,0/15/22/60/6 6INOX6015226
89177560 SE50306020 - S-WING FRESA IN MD 3F D6,0/20/27/65/6 6INOX6520276
67144932 SE503080 - S-WING FRESA IN MD 3F D8,0/20/27/70/8 8INOX7020278
55425016 SE50308030 - S-WING FRESA IN MD 3F D8,0/30/37/80/8 8INOX8030378
83548743 SE503100 - S-WING FRESA IN MD 3F D10,0/25/33/75/10 10INOX75253310
31985182 SE50310035 - S-WING FRESA IN MD 3F D10,0/35/43/85/10 10INOX85354310
99952555 SE503120 - S-WING FRESA IN MD 3F D12,0/30/40/80/12 12INOX80304012
38076282 SE50312040 - S-WING FRESA IN MD 3F D12,0/40/45/90/12 12INOX90405012
66200009 SE503140 - S-WING FRESA IN MD 3F D14,0/35/45/90/16 14INOX90354516
54480093 SE503160 - S-WING FRESA IN MD 3F D16,0/42/52/100/16 16INOX100425216
82603820 SE503180 - S-WING FRESA IN MD 3F D18,0/45/100/16 18INOX1004516
70883903 SE503200 - S-WING FRESA IN MD 3F D20,0/48/58/100/20 20INOX100485820

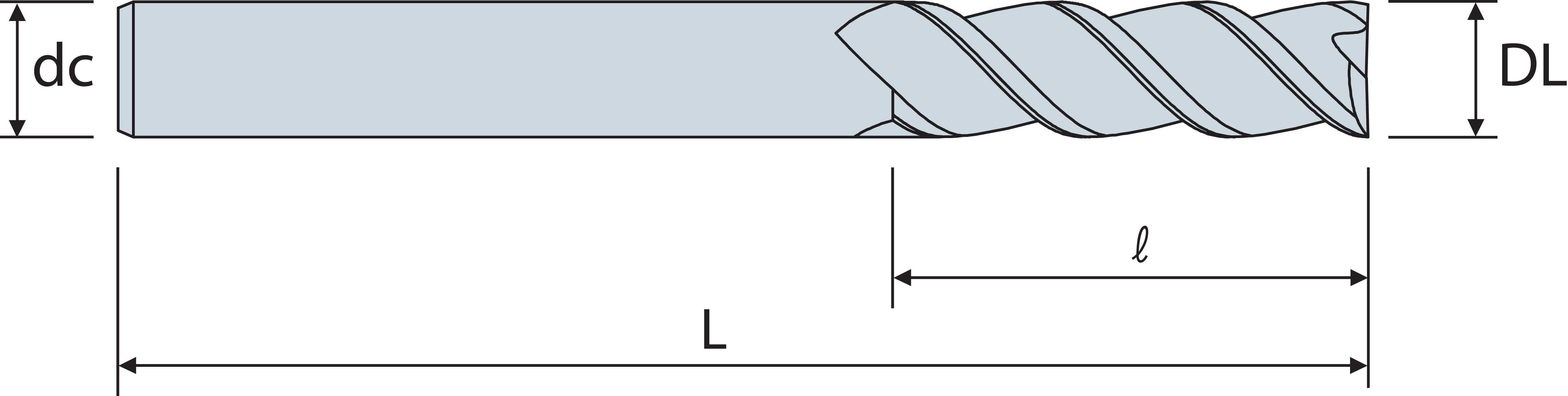

WAE303 ALU-WAVE
12368267 WAE303010 - ALU-WAVE FRESA IN MD 3F D1,0/3/50/6 1ALU5036
55416112 WAE303010-02 - ALU-WAVE FRESA IN MD 3F D1,0/2/40/6 1ALU4026
33383484 WAE303010-025 - ALU-WAVE FRESA IN MD 3F D1,0/2,5/40/6 1ALU402.56
21663567 WAE303010-04 - ALU-WAVE FRESA IN MD 3F D1,0/4/60/6 1ALU6046
12368257 WAE303010-06 - ALU-WAVE FRESA IN MD 3F D1,0/6/60/6 1ALU6066
29161870 WAE303012 - ALU-WAVE FRESA IN MD 3F D1,2/4/50/6 1.2ALU5046
12369246 WAE303015 - ALU-WAVE FRESA IN MD 3F D1,5/5/50/6 1.5ALU5056
12369119 WAE303015-03 - ALU-WAVE FRESA IN MD 3F D1,5/3/40/6 1.5ALU4036
24940257 WAE303015-06 - ALU-WAVE FRESA IN MD 3F D1,5/6/60/6 1.5ALU6066
53063984 WAE303015-08 - ALU-WAVE FRESA IN MD 3F D1,5/8/60/6 1.5ALU6086
12369083 WAE303015-10 - ALU-WAVE FRESA IN MD 3F D1,5/10/60/6 1.5ALU60106
12367351 WAE303020 - ALU-WAVE FRESA IN MD 3F D2,0/6/50/6 2ALU5066
29624152 WAE303020-03 - ALU-WAVE FRESA IN MD 3F D2,0/3/40/6 2ALU4036
12367178 WAE303020-08 - ALU-WAVE FRESA IN MD 3F D2,0/8/60/6 2ALU6086
12367350 WAE303020-10 - ALU-WAVE FRESA IN MD 3F D2,0/10/60/6 2ALU60106
12367285 WAE303020-12 - ALU-WAVE FRESA IN MD 3F D2,0/12/60/6 2ALU60126
12372400 WAE303025 - ALU-WAVE FRESA IN MD 3F D2,5/8/40/6 2.5ALU4086
12372369 WAE303025-10 - ALU-WAVE FRESA IN MD 3F D2,5/10/55/6 2.5ALU55106
81649994 WAE303025-12 - ALU-WAVE FRESA IN MD 3F D2,5/12/60/6 2.5ALU60126
71934484 WAE303030 - ALU-WAVE FRESA IN MD 3F D3,0/12/55/6 3ALU55126
12370051 WAE303030-08 - ALU-WAVE FRESA IN MD 3F D3,0/8/45/6 3ALU4586
12370189 WAE303030-4 - ALU-WAVE FRESA IN MD 3F D3,0/4/45/6 3ALU4546
12370054 WAE303031 - ALU-WAVE FRESA IN MD 3F D3,0/15/65/6 3ALU65156
12375583 WAE303035 - ALU-WAVE FRESA IN MD 3F D3,5/12/55/6 3.5ALU55126
12370291 WAE303040 - ALU-WAVE FRESA IN MD 3F D4,0/14/55/6 4ALU55146
12370256 WAE303040-05 - ALU-WAVE FRESA IN MD 3F D4,0/5/45/6 4ALU4556
91017783 WAE303040-08 - ALU-WAVE FRESA IN MD 3F D4,0/8/45/6 4ALU4586
12370290 WAE303040-11 - ALU-WAVE FRESA IN MD 3F D4,0/11/45/6 4ALU45116
29061360 WAE303040-11DLC FRESA IN MD 3F D4,0/11/45/6+DLC 4ALU45116
12370191 WAE303040-16 - ALU-WAVE FRESA IN MD 3F D4,0/16/65/6 4ALU65166
12370067 WAE303041 - ALU-WAVE FRESA IN MD 3F D4,0/20/70/6 4ALU70206
12375582 WAE303045 - ALU-WAVE FRESA IN MD 3F D4,5/15/55/6 4.5ALU55156
12373469 WAE303050 - ALU-WAVE FRESA IN MD 3F D5,0/17/55/6 5ALU55176
12373227 WAE303050-06 - ALU-WAVE FRESA IN MD 3F D5,0/6/45/6 5ALU4566
12373442 WAE303051 - ALU-WAVE FRESA IN MD 3F D5,0/22/60/6 5ALU60226
12373455 WAE303052 - ALU-WAVE FRESA IN MD 3F D5,0/26/70/6 5ALU70266
12375353 WAE303055 - ALU-WAVE FRESA IN MD 3F D5,5/17/55/6 5.5ALU55176
12372399 WAE303060 - ALU-WAVE FRESA IN MD 3F D6,0/17/60/6 6ALU60176
12372183 WAE303060-07 - ALU-WAVE FRESA IN MD 3F D6,0/7/50/6 6ALU5076
12372396 WAE303060-13 - ALU-WAVE FRESA IN MD 3F D6,0/13/50/6 6ALU50136
12372328 WAE303061 - ALU-WAVE FRESA IN MD 3F D6,0/22/60/6 6ALU60226
12372161 WAE303062 - ALU-WAVE FRESA IN MD 3F D6,0/26/70/6 6ALU70266
12372395 WAE303063 - ALU-WAVE FRESA IN MD 3F D6,0/31/75/6 6ALU75316
12375372 WAE303070 - ALU-WAVE FRESA IN MD 3F D7,0/23/65/8 7ALU65238
12372118 WAE303080 - ALU-WAVE FRESA IN MD 3F D8,0/23/70/8 8ALU70238
12372394 WAE303080-10 - ALU-WAVE FRESA IN MD 3F D8,0/10/60/8 8ALU60108
12372223 WAE303080-20 - ALU-WAVE FRESA IN MD 3F D8,0/20/60/8 8ALU60208
12372397 WAE303080-29 - ALU-WAVE FRESA IN MD 3F D8,0/29/80/8 8ALU80298
12372398 WAE303081 - ALU-WAVE FRESA IN MD 3F D8,0/31/80/8 8ALU80318
12372208 WAE303082 - ALU-WAVE FRESA IN MD 3F D8,0/36/85/8 8ALU85368
12375580 WAE303090 - ALU-WAVE FRESA IN MD 3F D9,0/28/70/10 9ALU702810
12371331 WAE303100 - ALU-WAVE FRESA IN MD 3F D10,0/28/75/10 10ALU752810
12371166 WAE303100-12 - ALU-WAVE FRESA IN MD 3F D10,0/12/65/10 10ALU651210
12371367 WAE303100-23 - ALU-WAVE FRESA IN MD 3F D10,0/23/65/10 10ALU652310
12371301 WAE303100-33 - ALU-WAVE FRESA IN MD 3F D10,0/33/90/10 10ALU903310
12371153 WAE303100-41 - ALU-WAVE FRESA IN MD 3F D10,0/41/90/10 10ALU904110
12371133 WAE303101 - ALU-WAVE FRESA IN MD 3F D10,0/36/90/10 10ALU903610
12371363 WAE303102 - ALU-WAVE FRESA IN MD 3F D10,0/46/100/10 10ALU1004610
12371364 WAE303103 - ALU-WAVE FRESA IN MD 3F D10,0/51/100/10 10ALU1005110
12375418 WAE303110 - ALU-WAVE FRESA IN MD 3F D11,0/30/80/12 11ALU803012
12371090 WAE303120 - ALU-WAVE FRESA IN MD 3F D12,0/33/80/12 12ALU803312
12371074 WAE303120-14 - ALU-WAVE FRESA IN MD 3F D12,0/14/70/12 12ALU701412
12371366 WAE303120-27 - ALU-WAVE FRESA IN MD 3F D12,0/27/70/12 12ALU702712
51073626 WAE303120DLC FRESA IN MD 3F D12,0/33/80/12+DLC 12ALU803312
12371208 WAE303121 - ALU-WAVE FRESA IN MD 3F D12,0/41/95/12 12ALU954112
12371362 WAE303122 - ALU-WAVE FRESA IN MD 3F D12,0/46/100/12 12ALU1004612
12371219 WAE303122-51 - ALU-WAVE FRESA IN MD 3F D12,0/51/100/12 12ALU1005112
12371348 WAE303123 - ALU-WAVE FRESA IN MD 3F D12,0/56/110/12 12ALU1105612
12371365 WAE303124-61 - ALU-WAVE FRESA IN MD 3F D12,0/61/110/12 12ALU1106112
12375301 WAE303130 - ALU-WAVE FRESA IN MD 3F D13,0/35/85/14 13ALU853514
12375581 WAE303140 - ALU-WAVE FRESA IN MD 3F D14,0/38/90/14 14ALU903814
12375524 WAE303150 - ALU-WAVE FRESA IN MD 3F D15,0/40/90/16 15ALU904016
12373203 WAE303160 - ALU-WAVE FRESA IN MD 3F D16,0/45/100/16 16ALU1004516
12373470 WAE303160-19 - ALU-WAVE FRESA IN MD 3F D16,0/19/90/16 16ALU901916
12373448 WAE303160-33 - ALU-WAVE FRESA IN MD 3F D16,0/33/90/16 16ALU903316
12373211 WAE303160-53 - ALU-WAVE FRESA IN MD 3F D16,0/53/105/16 16ALU1055316
12373280 WAE303161 - ALU-WAVE FRESA IN MD 3F D16,0/56/110/16 16ALU1105616
12373468 WAE303162 - ALU-WAVE FRESA IN MD 3F D16,0/66/130/16 16ALU1306616
12373444 WAE303163 - ALU-WAVE FRESA IN MD 3F D16,0/76/150/16 16ALU1507616
12375220 WAE303180 - ALU-WAVE FRESA IN MD 3F D18,0/49/100/18 18ALU1004918
12374488 WAE303200 - ALU-WAVE FRESA IN MD 3F D20,0/50/100/20 20ALU1005020
12374489 WAE303200-23 - ALU-WAVE FRESA IN MD 3F D20,0/23/90/20 20ALU902320
12374387 WAE303200-39 - ALU-WAVE FRESA IN MD 3F D20,0/39/90/20 20ALU903920
12374170 WAE303201 - ALU-WAVE FRESA IN MD 3F D20,0/60/110/20 20ALU1106020
12374487 WAE303202 - ALU-WAVE FRESA IN MD 3F D20,0/70/130/20 20ALU1307020
12374342 WAE303203 - ALU-WAVE FRESA IN MD 3F D20,0/76/150/20 20ALU1507620
12375578 WAE303250 - ALU-WAVE FRESA IN MD 3F D25,0/50/120/25 25ALU1205025

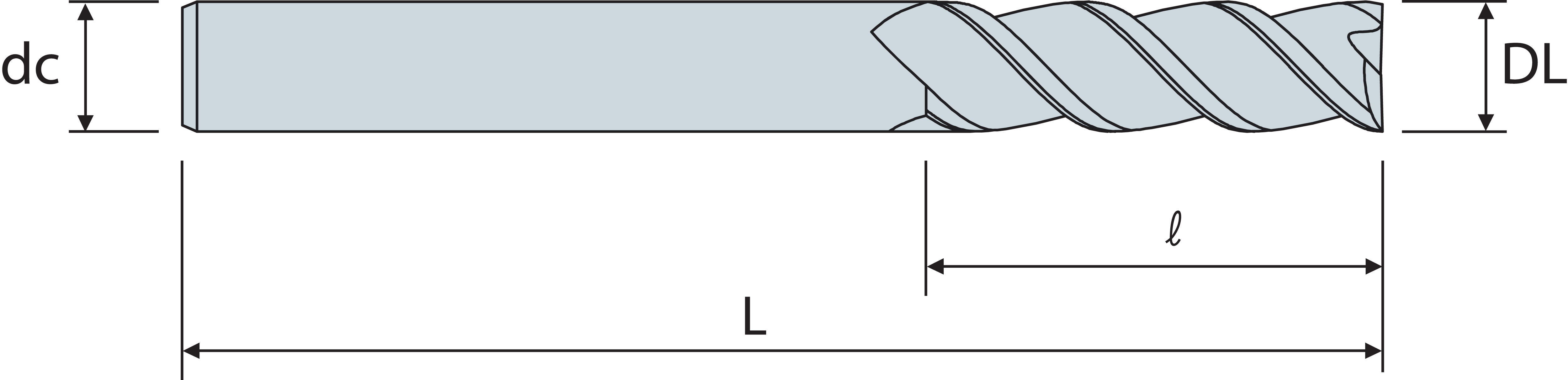

WAE323 ALU-WAVE
12369132 WAE323030 - ALU-WAVE FRESA IN MD 3F D3,0/20/70/6 3ALU70206
12369255 WAE323031 - ALU-WAVE FRESA IN MD 3F D3,0/25/75/6 3ALU75256
12369236 WAE323032 - ALU-WAVE FRESA IN MD 3F D3,0/30/80/6 3ALU80306
12370131 WAE323040 - ALU-WAVE FRESA IN MD 3F D4,0/26/75/6 4ALU75266
12373478 WAE323041 - ALU-WAVE FRESA IN MD 3F D4,0/30/80/6 4ALU80306
12373391 WAE323050 - ALU-WAVE FRESA IN MD 3F D5,0/31/75/6 5ALU75316
12373145 WAE323051 - ALU-WAVE FRESA IN MD 3F D5,0/36/80/6 5ALU80366
12373477 WAE323052 - ALU-WAVE FRESA IN MD 3F D5,0/41/85/6 5ALU85416
12373335 WAE323053 - ALU-WAVE FRESA IN MD 3F D5,0/46/90/6 5ALU90466
12372412 WAE323060 - ALU-WAVE FRESA IN MD 3F D6,0/36/80/6 6ALU80366
12372411 WAE323061 - ALU-WAVE FRESA IN MD 3F D6,0/43/90/6 6ALU90436
12372246 WAE323062 - ALU-WAVE FRESA IN MD 3F D6,0/51/100/6 6ALU100516
12372410 WAE323080 - ALU-WAVE FRESA IN MD 3F D8,0/41/90/8 8ALU90418
12372365 WAE323081 - ALU-WAVE FRESA IN MD 3F D8,0/46/95/8 8ALU95468
12372207 WAE323082 - ALU-WAVE FRESA IN MD 3F D8,0/51/100/8 8ALU100518
12372409 WAE323083 - ALU-WAVE FRESA IN MD 3F D8,0/56/105/8 8ALU105568
12372387 WAE323084 - ALU-WAVE FRESA IN MD 3F D8,0/66/110/8 8ALU110668
12371173 WAE323100 - ALU-WAVE FRESA IN MD 3F D10,0/56/110/10 10ALU1105610
12371374 WAE323100-61 - ALU-WAVE FRESA IN MD 3F D10,0/61/110/10 10ALU1106110
12371329 WAE323101 - ALU-WAVE FRESA IN MD 3F D10,0/66/120/10 10ALU1206610
12371111 WAE323120 - ALU-WAVE FRESA IN MD 3F D12,0/66/120/12 12ALU1206612
12371375 WAE323120-71 - ALU-WAVE FRESA IN MD 3F D12,0/71/120/12 12ALU1207112
12371086 WAE323121 - ALU-WAVE FRESA IN MD 3F D12,0/76/135/12 12ALU1357612
12373476 WAE323160 - ALU-WAVE FRESA IN MD 3F D16,0/86/160/16 16ALU1608616
12373443 WAE323161 - ALU-WAVE FRESA IN MD 3F D16,0/96/180/16 16ALU1809616
12373200 WAE323162 - ALU-WAVE FRESA IN MD 3F D16,0/106/190/16 16ALU19010616
12373475 WAE323163 - ALU-WAVE FRESA IN MD 3F D16,0/116/200/16 16ALU20011616
12374371 WAE323200 - ALU-WAVE FRESA IN MD 3F D20,0/86/160/20 20ALU1608620
12374169 WAE323201 - ALU-WAVE FRESA IN MD 3F D20,0/96/180/20 20ALU1809620
12374495 WAE323202 - ALU-WAVE FRESA IN MD 3F D20,0/106/190/20 20ALU19010620
12374316 WAE323203 - ALU-WAVE FRESA IN MD 3F D20,0/116/200/20 20ALU20011620
12374494 WAE323204 - ALU-WAVE FRESA IN MD 3F D20,0/126/220/20 20ALU22012620

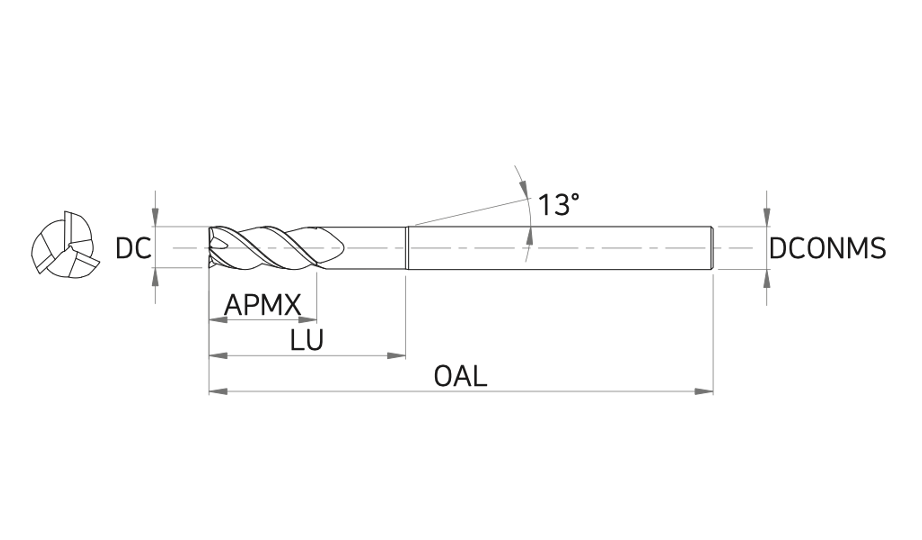

XCE503 X-STAR
12367816 XCE503020 - X-STAR FRESA IN MD 3F D2,0/6/50/6 2Fino a 355066
50101065 XCE503025 - X-STAR FRESA IN MD 3F D2,5 /8/50/6 2.5Fino a 355086
12369688 XCE503030 - X-STAR FRESA IN MD 3F D3,0 /10/50/6 3Fino a 3550106
12376004 XCE503035 - X-STAR FRESA IN MD 3F D3,5/10/50/6 3.5Fino a 3550106
12370773 XCE503040 - X-STAR FRESA IN MD 3F D4,0 /12/50/6 4Fino a 3550126
12376005 XCE503045 - X-STAR FRESA IN MD 3F D4,5 /14/50/6 4.5Fino a 3550146
12373973 XCE503050 - X-STAR FRESA IN MD 3F D5,0/15/50/6 5Fino a 3550156
12376006 XCE503055 - X-STAR FRESA IN MD 3F D5,5 /15/50/6 5.5Fino a 3550156
12372910 XCE503060 - X-STAR FRESA IN MD 3F D6,0/15/50/6 6Fino a 3550156
12371762 XCE503080 - X-STAR FRESA IN MD 3F D8,0 /20/60/8 8Fino a 3560208
12370774 XCE503100 - X-STAR FRESA IN MD 3F D10,0 /25/70/10 10Fino a 35702510
12371763 XCE503120 - X-STAR FRESA IN MD 3F D12,0 /30/75/12 12Fino a 35753012
12373974 XCE503160 - X-STAR FRESA IN MD 3F D16,0 /40/90/16 16Fino a 35904016
12374962 XCE503200 - X-STAR FRESA IN MD 3F D20,0 /45/100/20 20Fino a 351004520
33214612 XCE503250 - X-STAR FRESA IN MD 3F D25,0 /50/120/25 25Fino a 351205025

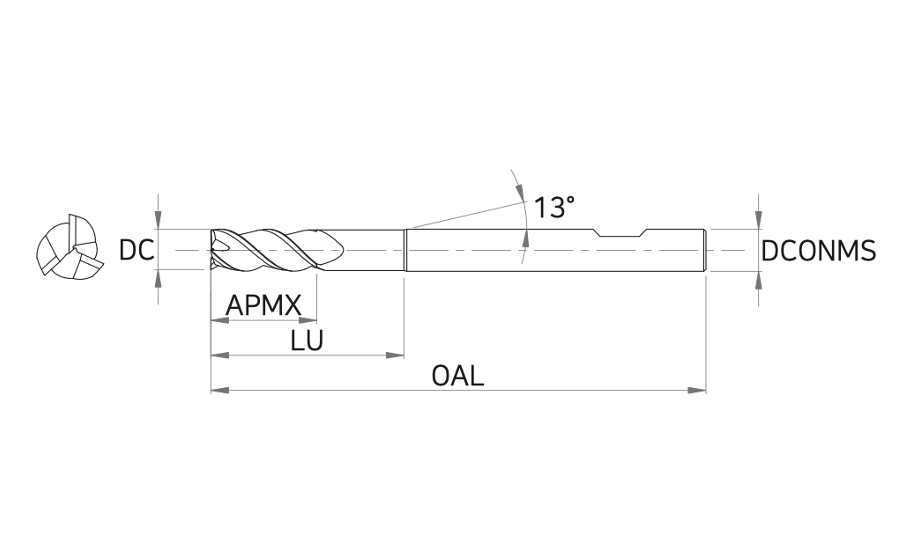

ZE503
12373851 ZE503050 - ZAMUS CLASSIC FRESA IN MD 3F D5X13/55-6 510-3055136
12372708 ZE503060 - ZAMUS CLASSIC FRESA IN MD 3F D6,0/15/50/6 6Fino a 5550156
12375915 ZE503070 - ZAMUS CLASSIC FRESA IN MD 3F D7,0/18/60/8 7Fino a 5560188
12371664 ZE503080 - ZAMUS CLASSIC FRESA IN MD 3F D8,0/18/60/8 8Fino a 5560188
12375916 ZE503090 - ZAMUS CLASSIC FRESA IN MD 3F D9,0/22/70/10 9Fino a 55702210
12371927 ZE503100 - ZAMUS CLASSIC FRESA IN MD 3F D10,0/22/70/10 10Fino a 55702210

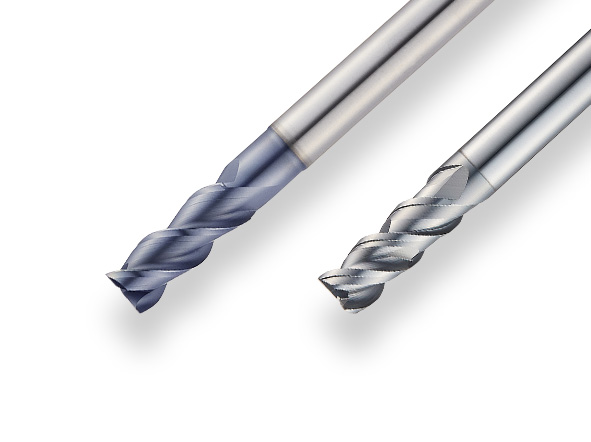

12376062 ZE503110 - ZAMUS CLASSIC FRESA IN MD 3F D11,0/26/75/12 11Fino a 55752612
12371928 ZE503120 - ZAMUS CLASSIC FRESA IN MD 3F D12,0/26/75/12 12Fino a 55752612
12376064 ZE503140 - ZAMUS CLASSIC FRESA IN MD 3F D14,0/32/85/14 14Fino a 55853214
12376065 ZE503150 - ZAMUS CLASSIC FRESA IN MD 3F D15,0/35/90/16 15Fino a 55903516
12374047 ZE503160 - ZAMUS CLASSIC FRESA IN MD 3F D16,0/35/90/16 16Fino a 55903516
12375036 ZE503200 - ZAMUS CLASSIC FRESA IN MD 3F D20,0/40/100/20 20Fino a 551004020
