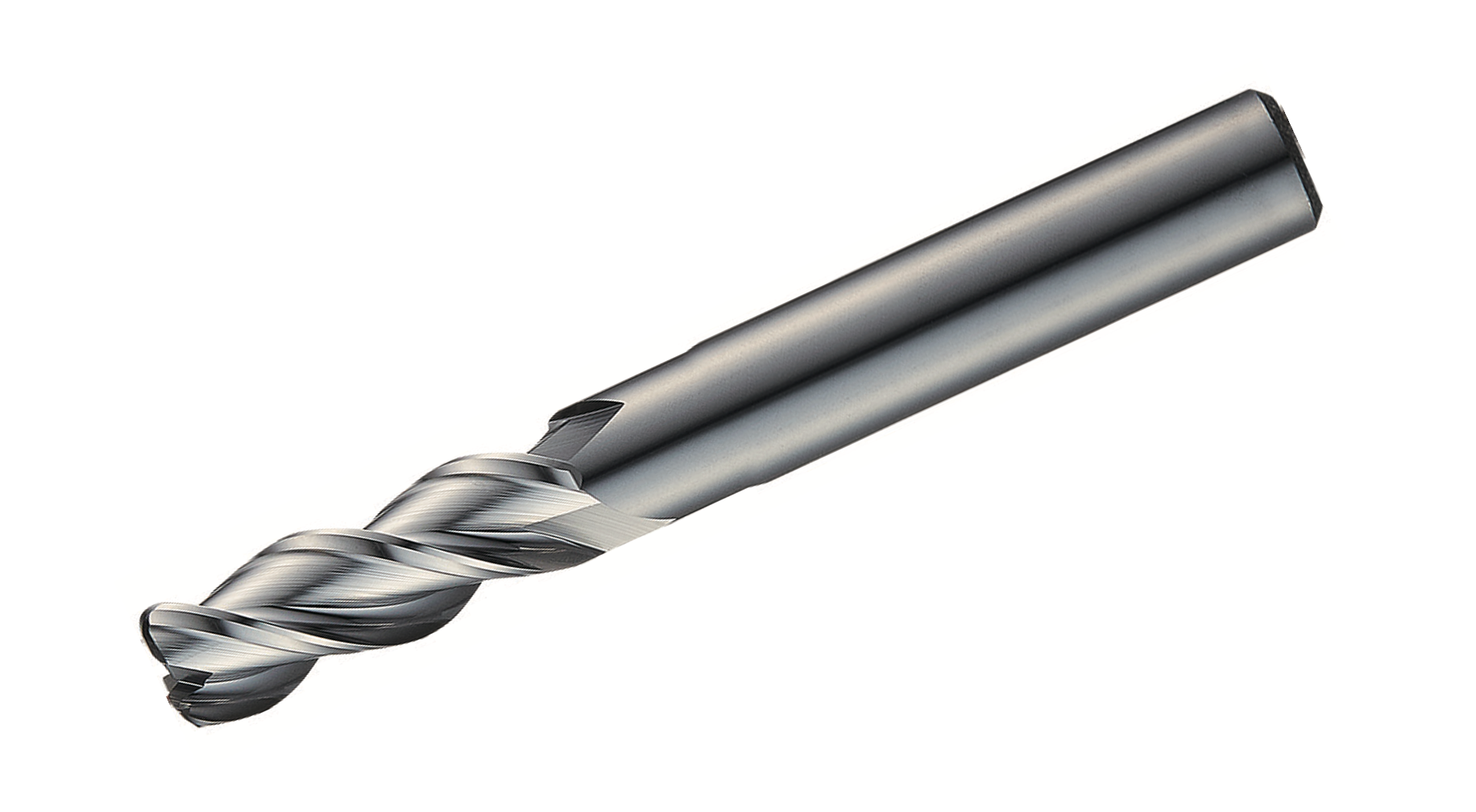

Z3 - Torica

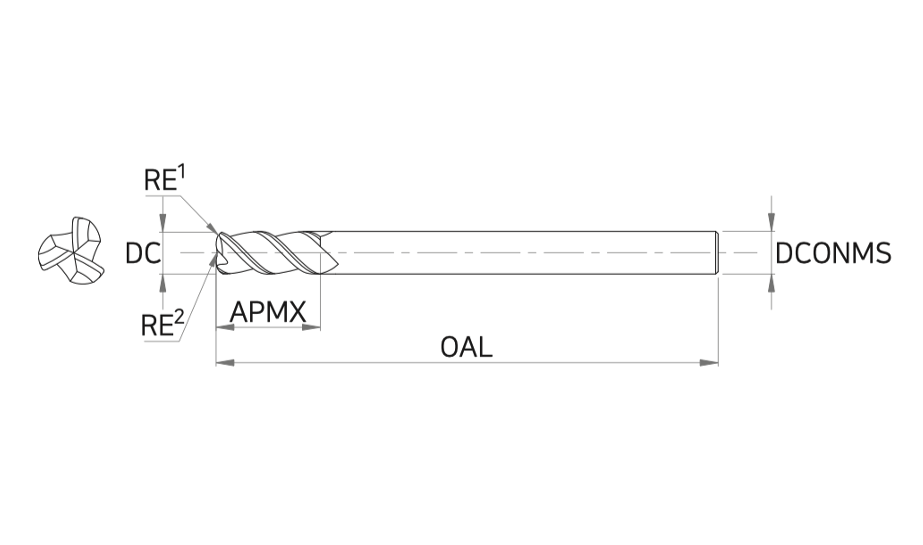

| Codice | Descrizione | Diametro Lavoro (DL) DC | Numero Taglienti (Z) | Diametro Attacco (dc) DCONS-MS (CIL) | HRc | Lunghezza Utile (l) LE/LU/APMX/LCF | Lunghezza (L) OAL | Lunghezza (L1) LU | Raggio RE | Angolo/Elica | DN2 | Disp. | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

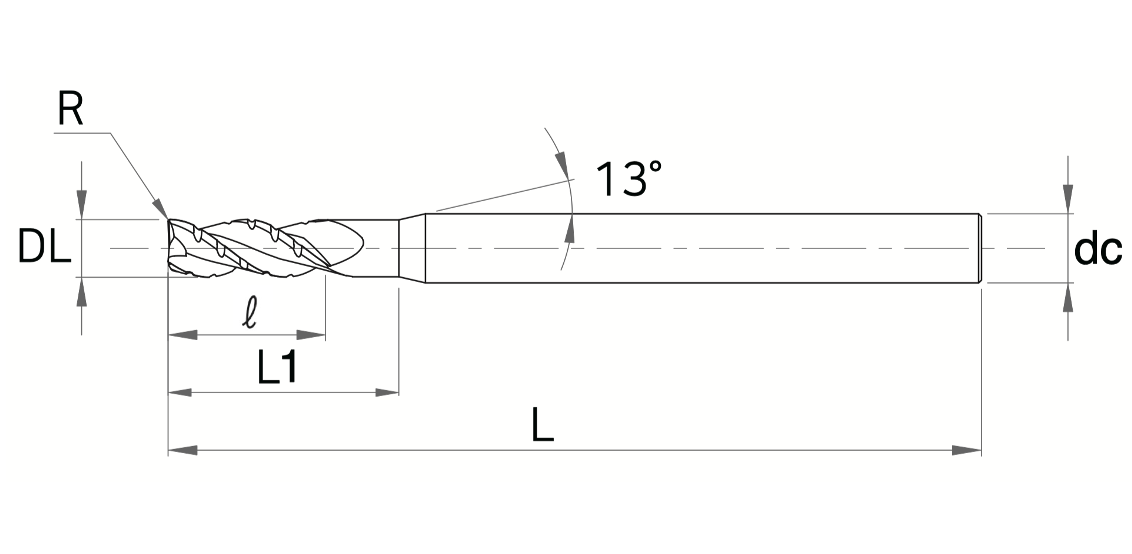

- PA-WAR303 ALU-WAVE   | |||||||||||||||||||||||
| 41540072 | PA-WAR3030605 - ALU-WAVE FRESA IN MD 3F D6.0XR0.5X19-30/72-6 | 6.0 | 3 | 6 | ALU | 19 | 72 | 30 | 0.5 | ||||||||||||||
| 73649635 | PA-WAR3030605 - ALU-WAVE FRESA IN MD 3F D6.0XR0.5X19-30/72-6 + DL | 6.0 | 3 | 6 | ALU | 19 | 72 | 30 | 0.5 | ||||||||||||||
| 18952246 | PA-WAR3030605 - ALU-WAVE FRESA IN MD 3F D6.0XR0.5X19-30/72-6+DLT | 6.0 | 3 | 6 | ALU | 15 | 50 | 30 | 0.5 | ||||||||||||||
| 86919611 | PA-WAR3030610 - ALU-WAVE FRESA IN MD 3F D6XR1.0X19-30/72-6 | 6.0 | 3 | 6 | ALU | 19 | 72 | 30 | 1 | ||||||||||||||
| 75199696 | PA-WAR3030615 - ALU-WAVE FRESA IN MD 3F D6XR1.5X19-30/72-6 | 6.0 | 3 | 6 | ALU | 19 | 72 | 30 | 1.5 | ||||||||||||||
| 63479781 | PA-WAR3030620 - ALU-WAVE FRESA IN MD 3F D6XR2.0X19-30/72-6 | 6.0 | 3 | 6 | ALU | 19 | 72 | 30 | 2.0 | ||||||||||||||
| 41447154 | PA-WAR3030805 - ALU-WAVE FRESA IN MD 3F D8XR0.5X23-38/83-8 | 8.0 | 3 | 8 | ALU | 23 | 83 | 38 | 0.5 | ||||||||||||||
| 69570879 | PA-WAR3030805 - ALU-WAVE FRESA IN MD 3F D8XR0.5X23-38/83-8+DLT | 8.0 | 3 | 8 | ALU | 23 | 83 | 38 | 0.5 | ||||||||||||||
| 97694604 | PA-WAR3030810 - ALU-WAVE FRESA IN MD 3F D8XR1.0X23-38/83-8 | 8.0 | 3 | 8 | ALU | 23 | 83 | 38 | 1 | ||||||||||||||
| 35818337 | PA-WAR3030815 - ALU-WAVE FRESA IN MD 3F D8XR1.5X23-38/83-8 | 8.0 | 3 | 8 | ALU | 23 | 83 | 38 | 1.5 | ||||||||||||||
| 63942063 | PA-WAR3030820 - ALU-WAVE FRESA IN MD 3F D8XR2.0X23-38/83-8 | 8.0 | 3 | 8 | ALU | 23 | 83 | 38 | 2.0 | ||||||||||||||
| 81753076 | PA-WAR3030825 - ALU-WAVE FRESA IN MD 3F D8XR2.5X23-38/83-8 | 8.0 | 3 | 8 | ALU | 23 | 83 | 38 | 2.5 | ||||||||||||||
| 19876809 | PA-WAR3030830 - ALU-WAVE FRESA IN MD 3F D8XR3.0X23-38/83-8 | 8.0 | 3 | 8 | ALU | 23 | 83 | 38 | 3 | ||||||||||||||
| 87844175 | PA-WAR3031005 - ALU-WAVE FRESA IN MD 3F D10XR0.5X26-40/85-10 | 10.0 | 3 | 10 | ALU | 26 | 85 | 40 | 0.5 | ||||||||||||||
| 25967908 | PA-WAR3031005 - ALU-WAVE FRESA IN MD 3F D10XR0.5X26-40/85-10+DLT | 10.0 | 3 | 10 | ALU | 26 | 85 | 40 | 0.5 | ||||||||||||||
| 14247992 | PA-WAR3031010 - ALU-WAVE FRESA IN MD 3F D10XR1.0X26/40-85/10 | 10.0 | 3 | 10 | ALU | 26 | 85 | 40 | 1 | ||||||||||||||
| 42371717 | PA-WAR3031015 - ALU-WAVE FRESA IN MD 3F D10XR1.5X26-40/85-10 | 10.0 | 3 | 10 | ALU | 26 | 85 | 40 | 1.5 | ||||||||||||||
| 30651801 | PA-WAR3031020 - ALU-WAVE FRESA IN MD 3F D10XR2.0X26-40/85-10 | 10.0 | 3 | 10 | ALU | 26 | 85 | 40 | 2.0 | ||||||||||||||
| 48462816 | PA-WAR3031025 - ALU-WAVE FRESA IN MD 3F D10XR2.5X26-40/85-10 | 10.0 | 3 | 10 | ALU | 26 | 85 | 40 | 2.5 | ||||||||||||||
| 76586541 | PA-WAR3031030 - ALU-WAVE FRESA IN MD 3F D10XR3.0X26-40/85-10 | 10.0 | 3 | 10 | ALU | 26 | 85 | 40 | 3 | ||||||||||||||
| 14361270 | PA-WAR3031205 - ALU-WAVE FRESA IN MD 3F D12.0XR0.5X30/43/90-12 | 12.0 | 3 | 12 | ALU | 30 | 90 | 43 | 0.5 | ||||||||||||||
| 39752025 | PA-WAR3031205DLC FRESA IN MD D12.0XR0.5X30/43/90-12+DLC | 12.0 | 3 | 12 | ALU | 30 | 90 | 43 | 0.5 | ||||||||||||||
| 54553914 | PA-WAR3031205DLT - ALU-WAVE FRESA IN MD D12.0XR0.5X30/43/90-12+DLT | 12.0 | 3 | 12 | ALU | 30 | 90 | 43 | 0.5 | ||||||||||||||
| 42833999 | PA-WAR3031210 - ALU-WAVE FRESA IN MD 3F D12XR1.0X30-43/90-12 | 12.0 | 3 | 12 | ALU | 30 | 90 | 43 | 1 | ||||||||||||||
| 33290745 | PA-WAR3031215 - ALU-WAVE FRESA IN MD 3F D12XR1.5X30-43/90-12 | 12.0 | 3 | 12 | ALU | 30 | 90 | 43 | 1.5 | ||||||||||||||
| 48925097 | PA-WAR3031220 - ALU-WAVE FRESA IN MD 3F D12XR2.0X30-43/90-12 | 12.0 | 3 | 12 | ALU | 30 | 90 | 43 | 2.0 | ||||||||||||||
| 26892470 | PA-WAR3031225 - ALU-WAVE FRESA IN MD 3F D12XR2.5X30-43/97-12 | 12.0 | 3 | 12 | ALU | 30 | 97 | 43 | 2.5 | ||||||||||||||
| 85843649 | PA-WAR3031230 - ALU-WAVE FRESA IN MD 3F D12XR3.0X30-43/90-12 | 12.0 | 3 | 12 | ALU | 30 | 90 | 43 | 3 | ||||||||||||||
| 17397171 | PA-WAR3031240 - ALU-WAVE FRESA IN MD 3F D12X4.0X30-43/90-12 | 12.0 | 3 | 12 | ALU | 30 | 90 | 43 | 0.5 | ||||||||||||||
| 97546733 | PA-WAR3031250 - ALU-WAVE FRESA IN MD 3F D12XR5.0X30-43/90-12 | 12.0 | 3 | 12 | ALU | 30 | 90 | 43 | 5.0 | ||||||||||||||
| 86289099 | PA-WAR3031605 - ALU-WAVE FRESA IN MD 3F D16XR0.5X32-48/97-16 | 16.0 | 3 | 16 | ALU | 32 | 97 | 48 | 0.5 | ||||||||||||||
| 15172555 | PA-WAR3031605 - ALU-WAVE FRESA IN MD 3F D16XR0.5X32-48/97-16+DLT | 16.0 | 3 | 16 | ALU | 32 | 97 | 48 | 0.5 | ||||||||||||||
| 83139920 | PA-WAR3031610 - ALU-WAVE FRESA IN MD 3F D16XR1.0X32-48/97-16 | 16.0 | 3 | 16 | ALU | 32 | 97 | 48 | 1 | ||||||||||||||
| 21263653 | PA-WAR3031615 - ALU-WAVE FRESA IN MD 3F D16XR1.5X32-48/97-16 | 16.0 | 3 | 16 | ALU | 32 | 97 | 48 | 1.5 | ||||||||||||||
| 89231019 | PA-WAR3031620 - ALU-WAVE FRESA IN MD 3F D16XR2.0X32-48/97-16 | 16.0 | 3 | 16 | ALU | 32 | 97 | 48 | 2.0 | ||||||||||||||
| 27354752 | PA-WAR3031625 - ALU-WAVE FRESA IN MD 3F D16XR2.5X32-48/97-16 | 16.0 | 3 | 16 | ALU | 32 | 97 | 48 | 2.5 | ||||||||||||||
| 95322118 | PA-WAR3031630 - ALU-WAVE FRESA IN MD 3F D16XR3.0X32-48/97-16 | 16.0 | 3 | 16 | ALU | 32 | 97 | 48 | 3 | ||||||||||||||
| 73289491 | PA-WAR3031640 - ALU-WAVE FRESA IN MD 3F D16XR4.0X32-48/97-16 | 16.0 | 3 | 16 | ALU | 32 | 97 | 48 | 4.0 | ||||||||||||||
| 11413224 | PA-WAR3031650 - ALU-WAVE FRESA IN MD 3F D16XR5.0X32-48/97-16 | 16.0 | 3 | 16 | ALU | 32 | 97 | 48 | 5.0 | ||||||||||||||
| 84750215 | PA-WAR3032005 - ALU-WAVE FRESA IN MD 3F D20XR0.5X38-52/105-20 | 20.0 | 3 | 20 | ALU | 38 | 105 | 52 | 0.5 | ||||||||||||||
| 39536949 | PA-WAR3032005DLT - ALU-WAVE FRESA IN MD 3F D20XR0.5X38-52/105-20+DLT | 20.0 | 3 | 20 | ALU | 38 | 105 | 52 | 0.5 | ||||||||||||||
| 67660674 | PA-WAR3032010 - ALU-WAVE FRESA IN MD 3F D20X1.0X32-52/105-20 | 20.0 | 3 | 20 | ALU | 32 | 105 | 52 | 1 | ||||||||||||||
| 95784399 | PA-WAR3032015 - ALU-WAVE FRESA IN MD 3F D20XR1.5X32-52/105-20 | 20.0 | 3 | 20 | ALU | 32 | 105 | 52 | 1.5 | ||||||||||||||
| 84064484 | PA-WAR3032025 - ALU-WAVE FRESA IN MD 3F D20XR2.5X32-52/105-20 | 20.0 | 3 | 20 | ALU | 32 | 105 | 52 | 2.5 | ||||||||||||||
| 22188217 | PA-WAR3032030 - ALU-WAVE FRESA IN MD 3F D20XR3.0X38-52/105-20 | 20.0 | 3 | 20 | ALU | 38 | 105 | 52 | 3 | ||||||||||||||
| 10468301 | PA-WAR3032040 - ALU-WAVE FRESA IN MD 3F D20XR4.0X32-52/105-20 | 20.0 | 3 | 20 | ALU | 32 | 105 | 52 | 4.0 | ||||||||||||||
| 78435667 | PA-WAR3032050 - ALU-WAVE FRESA IN MD 3F D20XR5.0X32-52/105-20 | 20.0 | 3 | 20 | ALU | 32 | 105 | 52 | 5.0 | ||||||||||||||

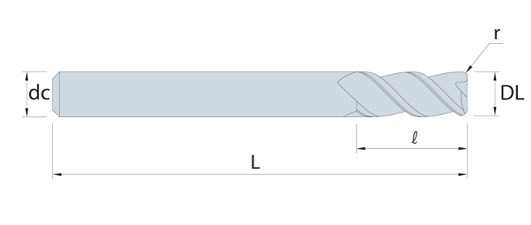

- WAR303 ALU-WAVE   | |||||||||||||||||||||||
| 12372436 | WAR3030605 - ALU-WAVE FRESA IN MD 3F D6,0/R0,5 /15/50/6 | 6.0 | 3 | 6 | ALU | 15 | 50 | 0.5 | |||||||||||||||
| 90519522 | WAR3030605DLT - ALU WAVE D. 6.0 Z3 TORI FRESA IN MD | 6.0 | 3 | 6 | ALU | 15 | 50 | 0.5 | |||||||||||||||
| 12372372 | WAR3030610 - ALU-WAVE FRESA IN MD 3F D6,0/R1,0 /15/50/6 | 6.0 | 3 | 6 | ALU | 15 | 50 | 1 | |||||||||||||||
| 12372237 | WAR3030615 - ALU-WAVE FRESA IN MD 3F D6,0/R1,5 /15/50/6 | 6.0 | 3 | 6 | ALU | 15 | 50 | 1.5 | |||||||||||||||
| 12372438 | WAR3030805 - ALU-WAVE FRESA IN MD 3F D8,0/R0,5 /20/60/8 | 8.0 | 3 | 8 | ALU | 20 | 60 | 0.5 | |||||||||||||||
| 73548175 | WAR3030805DLT FRESA IN MD | 8.0 | 3 | 8 | ALU | 20 | 60 | 0.5 | |||||||||||||||
| 12372357 | WAR3030810 - ALU-WAVE FRESA IN MD 3F D8,0/R1,0 /20/60/8 | 8.0 | 3 | 8 | ALU | 20 | 60 | 1 | |||||||||||||||
| 12372200 | WAR3030815 - ALU-WAVE FRESA IN MD 3F D8,0/R1,5 /20/60/8 | 8.0 | 3 | 8 | ALU | 20 | 60 | 1.5 | |||||||||||||||
| 36429261 | WAR3030820DLT - ALU WAVE D. 8.0 Z3 + DLT FRESA IN MD | 8.0 | 3 | ALU | |||||||||||||||||||
| 12371280 | WAR3031005 - ALU-WAVE FRESA IN MD 3F D10,0/R0,5 /25/70/10 | 10.0 | 3 | 10 | ALU | 25 | 70 | 0.5 | |||||||||||||||
| 66617410 | WAR3031005DLT - ALU WAVE D. 10.0 Z3 TOR FRESA IN MD | 10.0 | 3 | 10 | ALU | 25 | 70 | 0.5 | |||||||||||||||
| 12371390 | WAR3031015 - ALU-WAVE FRESA IN MD 3F D10,0/R1,5 /25/70/10 | 10.0 | 3 | 10 | ALU | 25 | 70 | 1.5 | |||||||||||||||
| 12371245 | WAR3031020 - ALU-WAVE FRESA IN MD 3F D10,0/R2,0 /25/70/10 | 10.0 | 3 | 10 | ALU | 25 | 70 | 2.0 | |||||||||||||||
| 12371389 | WAR3031030 - ALU-WAVE FRESA IN MD 3F D10,0/R3,0 /25/70/10 | 10.0 | 3 | 10 | ALU | 25 | 70 | 3 | |||||||||||||||
| 12371388 | WAR3031040 - ALU-WAVE FRESA IN MD 3F D10,0/R4,0 /25/70/10 | 10.0 | 3 | 10 | ALU | 25 | 70 | 4.0 | |||||||||||||||
| 12371287 | WAR3031210 - ALU-WAVE FRESA IN MD 3F D12,0/R1,0 /30/75/12 | 12.0 | 3 | 12 | ALU | 30 | 75 | 1 | |||||||||||||||
| 22446901 | WAR3031210DLT - ALU WAVE D. 12.0 Z3 TOR FRESA IN MD | 12.0 | 3 | 12 | ALU | 30 | 75 | 1 | |||||||||||||||
| 50570625 | WAR3031220DLC - ALU WAVE D. 12.0 Z3 TOR FRESA IN MD | 12.0 | 3 | 12 | ALU | 30 | 75 | 2.0 | |||||||||||||||
| 38850710 | WAR30312210 - ALU WAVE D. 12.0 Z3 TORIC FRESA IN MD | 12.0 | 3 | ALU | |||||||||||||||||||
| 27130794 | WAR30312220 - ALU WAVE D. 12.0 Z3 TORIC FRESA IN MD | 12.0 | 3 | ALU | |||||||||||||||||||
| 43534604 | WAR30312240 - ALU WAVE D. 12.0 Z3 TORIC FRESA IN MD | 12.0 | 3 | ALU | |||||||||||||||||||
| 12371247 | WAR3031230 - ALU-WAVE FRESA IN MD 3F D12,0/R3,0 /30/75/12 | 12.0 | 3 | 12 | ALU | 30 | 75 | 3 | |||||||||||||||
| 21501978 | WAR3031230DLC - ALU WAVE D. 12.0 Z3 TOR FRESA IN MD | 12.0 | 3 | 12 | ALU | 30 | 75 | 3 | |||||||||||||||
| 12371135 | WAR3031240 - ALU-WAVE FRESA IN MD 3F D12,0/R4,0 /30/75/12 | 12.0 | 3 | 12 | ALU | 30 | 75 | 4.0 | |||||||||||||||
| 49625703 | WAR3031240DLC - ALU WAVE D. 12.0 Z3 TOR FRESA IN MD | 12.0 | 3 | ALU | |||||||||||||||||||
| 12375602 | WAR3031410 - ALU-WAVE FRESA IN MD 3F D14,0/R1,0 /35/80/14 | 14.0 | 3 | 14 | ALU | 35 | 80 | 1 | |||||||||||||||
| 95900409 | WAR3031410DLC - ALU WAVE D. 14.0 Z3 TOR FRESA IN MD | 14.0 | 3 | 14 | ALU | 35 | 80 | 1 | |||||||||||||||
| 12375447 | WAR3031420 - ALU-WAVE FRESA IN MD 3F D14,0/R2,0 /35/80/14 | 14.0 | 3 | 14 | ALU | 35 | 80 | 2.0 | |||||||||||||||
| 12375601 | WAR3031430 - ALU-WAVE FRESA IN MD 3F D14,0/R3,0 /35/80/14 | 14.0 | 3 | 14 | ALU | 35 | 80 | 3 | |||||||||||||||
| 12375473 | WAR3031440 - ALU-WAVE FRESA IN MD 3F D14,0/R4,0 /35/80/14 | 14.0 | 3 | 14 | ALU | 35 | 80 | 4.0 | |||||||||||||||
| 12375603 | WAR3031450 - ALU-WAVE FRESA IN MD 3F D14,0/R5,0 /35/80/14 | 14.0 | 3 | 14 | ALU | 35 | 80 | 5.0 | |||||||||||||||
| 12373489 | WAR3031630 - ALU-WAVE FRESA IN MD 3F D16,0/R3,0 /40/90/16 | 16.0 | 3 | 16 | ALU | 40 | 90 | 3 | |||||||||||||||
| 12373246 | WAR3031640 - ALU-WAVE FRESA IN MD 3F D16,0/R4,0 /40/90/16 | 16.0 | 3 | 16 | ALU | 40 | 90 | 4.0 | |||||||||||||||
| 12373491 | WAR3031650 - ALU-WAVE FRESA IN MD 3F D16,0/R5,0 /40/90/16 | 16.0 | 3 | 16 | ALU | 40 | 90 | 5.0 | |||||||||||||||
| 12374312 | WAR3032010 - ALU-WAVE FRESA IN MD 3F D20,0/R1,0 /45/100/20 | 20.0 | 3 | 20 | ALU | 45 | 100 | 1 | |||||||||||||||
| 12374504 | WAR3032030 - ALU-WAVE FRESA IN MD 3F D20,0/R3,0 /45/100/20 | 20.0 | 3 | 20 | ALU | 45 | 100 | 3 | |||||||||||||||
| 12374278 | WAR3032040 - ALU-WAVE FRESA IN MD 3F D20,0/R4,0 /45/100/20 | 20.0 | 3 | 20 | ALU | 45 | 100 | 4.0 | |||||||||||||||

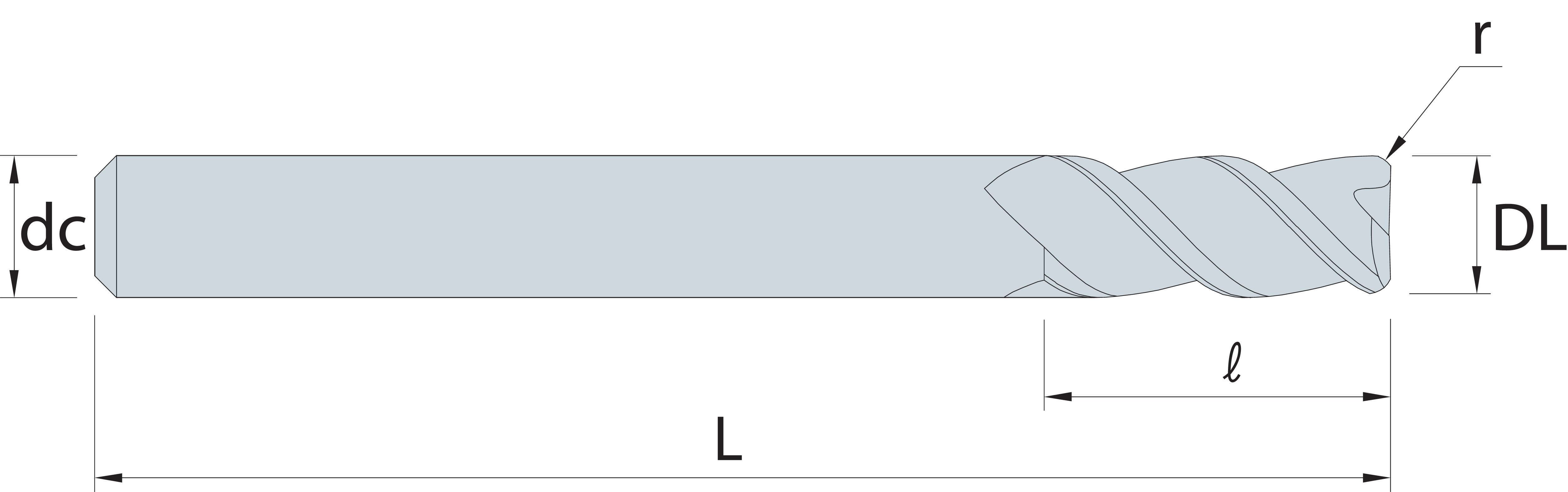

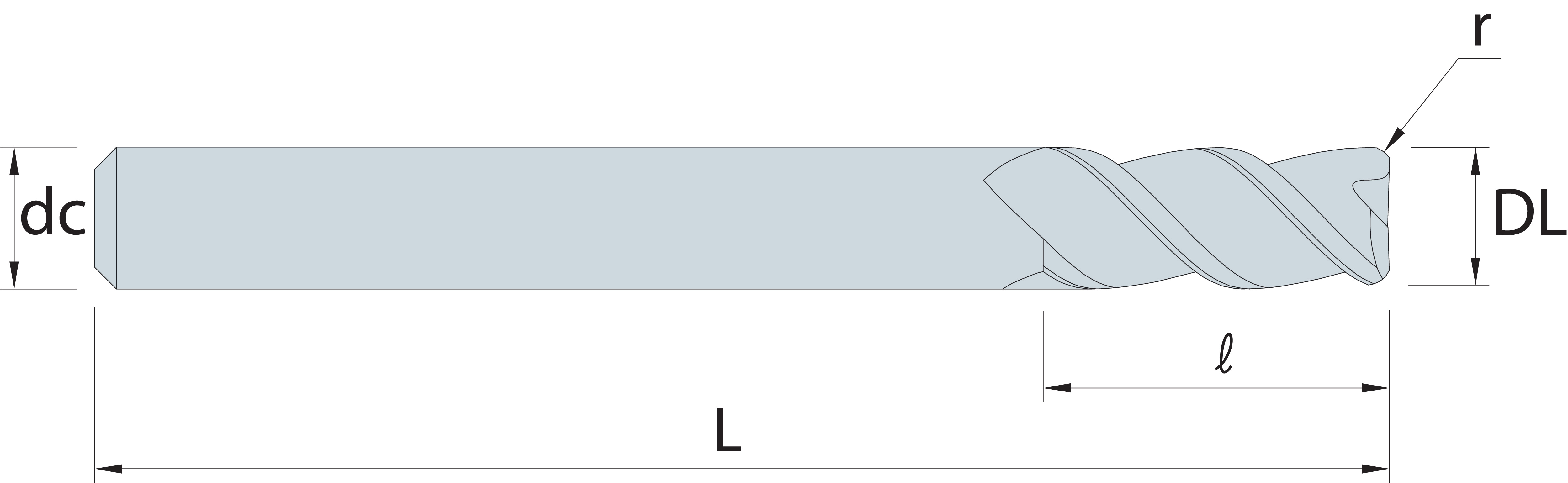

- WAR503 ALU-WAVE   | |||||||||||||||||||||||
| 12370271 | WAR503040 - ALU-WAVE FRESA IN MD 3F D4,0/R0,5/14/57/6 | 4.0 | 3 | 6 | ALU | 14 | 57 | 0.5 | |||||||||||||||
| 12372433 | WAR503060 - ALU-WAVE FRESA IN MD 3F D6,0/R0,5/16/57/6 | 6.0 | 3 | 6 | ALU | 16 | 57 | 0.5 | |||||||||||||||
| 12372265 | WAR503061 - ALU-WAVE FRESA IN MD 3F D6,0/R1,0/25/62/6 | 6.0 | 3 | 6 | ALU | 25 | 62 | 1 | |||||||||||||||
| 12372288 | WAR503080 - ALU-WAVE FRESA IN MD 3F D8,0/R0,5/22/63/8 | 8.0 | 3 | 8 | ALU | 22 | 63 | 0.5 | |||||||||||||||
| 12372434 | WAR503081 - ALU-WAVE FRESA IN MD 3F D8,0/R1,0/35/80/8 | 8.0 | 3 | 8 | ALU | 35 | 80 | 1 | 6.49 | ||||||||||||||
| 12371275 | WAR503100 - ALU-WAVE FRESA IN MD 3F D10,0/R0,5/28/72/10 | 10.0 | 3 | 10 | ALU | 28 | 72 | 0.5 | |||||||||||||||
| 12371251 | WAR503121 - ALU-WAVE FRESA IN MD 3F D12,0/R1,0/45/100/12 | 12.0 | 3 | 12 | ALU | 45 | 100 | 1 | |||||||||||||||
| 12373127 | WAR503160 - ALU-WAVE FRESA IN MD 3F D16,0/R0,5/45/90/16 | 16.0 | 3 | 16 | ALU | 45 | 90 | 0.5 | |||||||||||||||
| 12374301 | WAR503200 - ALU-WAVE FRESA IN MD 3F D20,0/R0,5/50/100/20 | 20.0 | 3 | 20 | ALU | 50 | 100 | 0.5 | |||||||||||||||

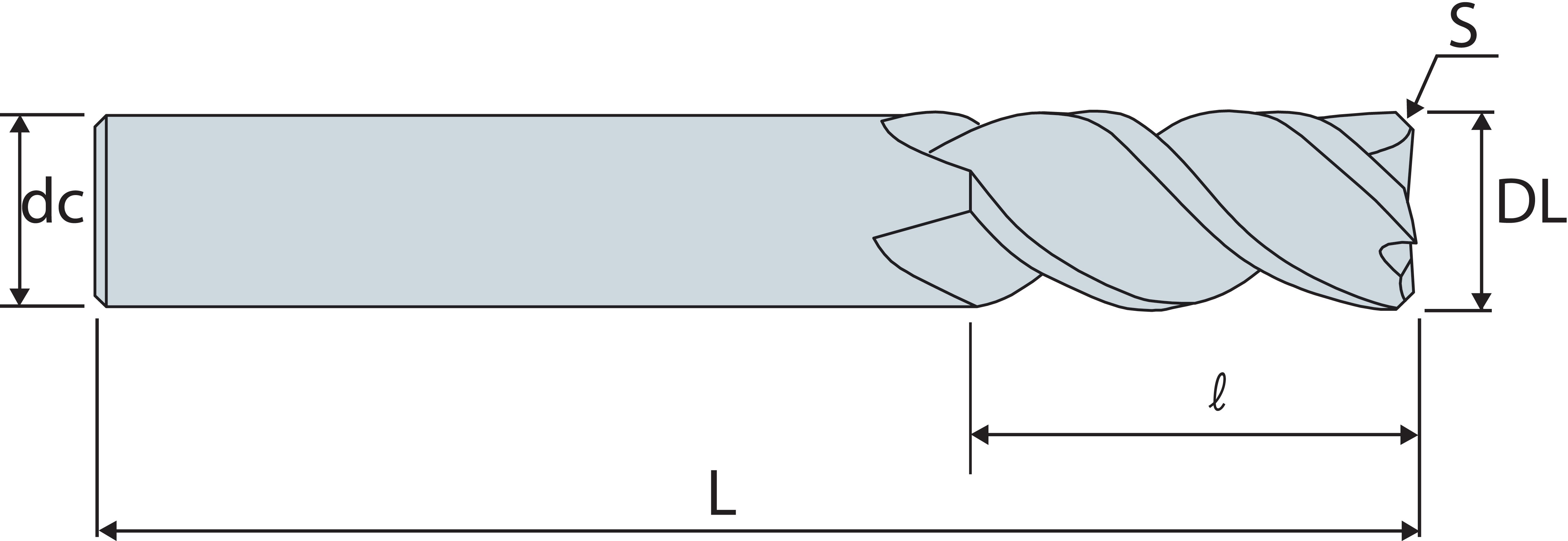

- XCR503 X-STAR   | |||||||||||||||||||||||
| 12374105 | XCR5030502 - X-STAR FRESA IN MD 3F D5,0/R0,2/15/50/6 | 5.0 | 3 | 6 | 10-35 | 15 | 50 | 0.2 | 48 | ||||||||||||||
| 12372758 | XCR5030602 - X-STAR FRESA IN MD 3F D6,0/R0,2/15/50/6 | 6.0 | 3 | 6 | 10-35 | 15 | 50 | 0.2 | 48 | ||||||||||||||
| 12372759 | XCR5030605 - X-STAR FRESA IN MD 3F D6,0/R0,5/15/50/6 | 6.0 | 3 | 6 | 10-35 | 15 | 50 | 0.5 | 48 | ||||||||||||||
| 12372760 | XCR5030610 - X-STAR FRESA IN MD 3F D6,0/R1,0/15/50/6 | 6.0 | 3 | 6 | 10-35 | 15 | 50 | 1 | 48 | ||||||||||||||
| 12371665 | XCR5030805 - X-STAR FRESA IN MD 3F D8,0/R0,5/20/60/8 | 8.0 | 3 | 8 | 10-35 | 20 | 60 | 0.5 | 48 | ||||||||||||||
| 12371666 | XCR5030810 - X-STAR FRESA IN MD 3F D8,0/R1,0/20/60/8 | 8.0 | 3 | 8 | 10-35 | 20 | 60 | 1 | 48 | ||||||||||||||
| 12370647 | XCR5031005 - X-STAR FRESA IN MD 3F D10,0/R0,5/25/70/10 | 10.0 | 3 | 10 | 10-35 | 25 | 70 | 0.5 | 48 | ||||||||||||||
| 12370648 | XCR5031010 - X-STAR FRESA IN MD 3F D10,0/R1,0/25/70/10 | 10.0 | 3 | 10 | 10-35 | 25 | 70 | 1 | 48 | ||||||||||||||
| 12371667 | XCR5031205 - X-STAR FRESA IN MD 3F D12,0/R0,5/30/75/12 | 12.0 | 3 | 12 | 10-35 | 30 | 75 | 0.5 | 48 | ||||||||||||||
| 12371668 | XCR5031210 - X-STAR FRESA IN MD 3F D12,0/R1,0/30/75/12 | 12.0 | 3 | 12 | 10-35 | 30 | 75 | 1 | 48 | ||||||||||||||
| 12373856 | XCR5031605 - X-STAR FRESA IN MD 3F D16,0/R0,5/40/90/16 | 16.0 | 3 | 16 | 10-35 | 40 | 90 | 0.5 | 48 | ||||||||||||||
| 12373857 | XCR5031610 - X-STAR FRESA IN MD 3F D16,0/R1,0/40/90/16 | 16.0 | 3 | 16 | 10-35 | 40 | 90 | 1 | 48 | ||||||||||||||
| 12374886 | XCR5032005 - X-STAR FRESA IN MD 3F D20,0/R0,5/45/100/20 | 20.0 | 3 | 20 | 10-35 | 45 | 100 | 0.5 | 48 | ||||||||||||||
| 12374887 | XCR5032010 - X-STAR FRESA IN MD 3F D20,0/R1,0/45/100/20 | 20.0 | 3 | 20 | 10-35 | 45 | 100 | 1 | 48 | ||||||||||||||
| 24268385 | XCR5032505 - X-STAR FRESA IN MD 3F D25,0/R0,5/50/120/25 | 25.0 | 3 | 25 | 10-35 | 50 | 120 | 0.5 | 48 | ||||||||||||||
| 52392113 | XCR5032510 - X-STAR FRESA IN MD 3F D25,0/R1,0/50/120/25 | 25.0 | 3 | 25 | 10-35 | 50 | 120 | 1 | 48 | ||||||||||||||

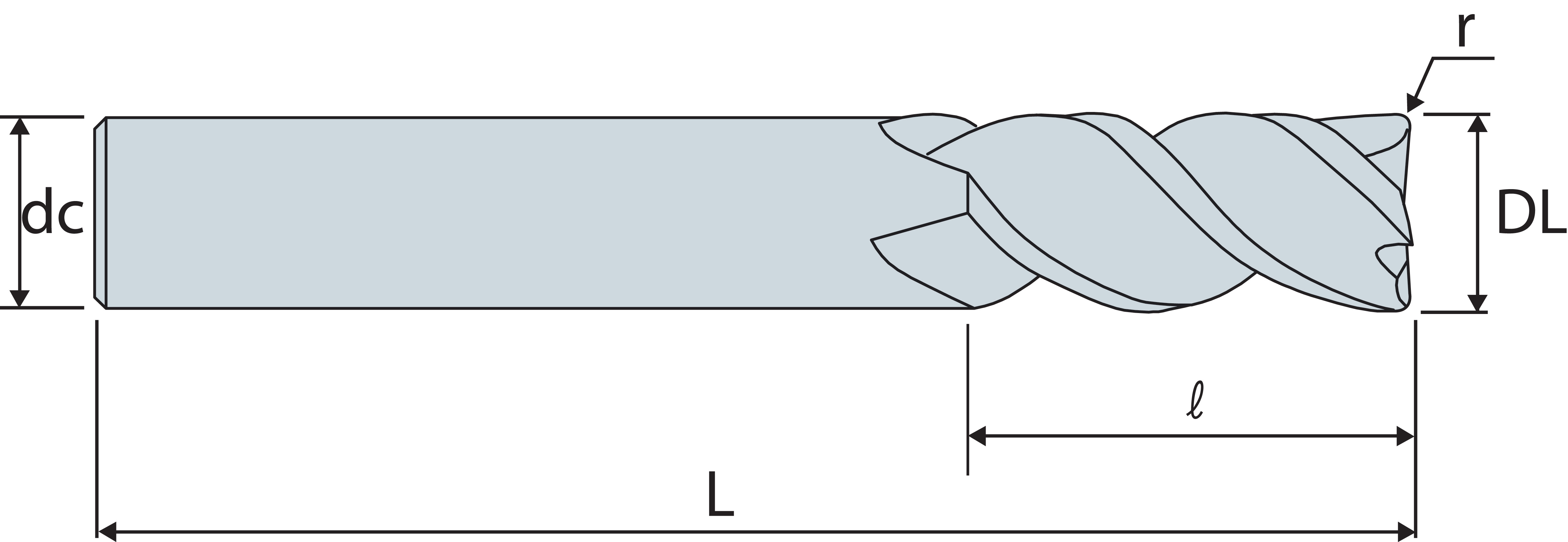

AWN513 A-WING   | |||||||||||||||||||||||
| 93086067 | AWN51303011 FRESA IN MD 3F D3.0XR0.2X11/16/55-6 | 3.0 | 3 | 6.0 | ALU | 11 | 55 | 16 | 0.2 | 38 | |||||||||||||
| 29700791 | AWN51304013 FRESA IN MD 3F D4.0XR0.2X13/18/55-6 | 4.0 | 3 | 6.0 | ALU | 13 | 55 | 18 | 0.2 | 38 | |||||||||||||
| 17960515 | AWN51305017 FRESA IN MD 3F D5.0XR0.2X17/22/55-6 | 5.0 | 3 | 6.0 | ALU | 17 | 55 | 22 | 0.2 | 38 | |||||||||||||
| 12311338 | AWN51306017 FRESA IN MD 3F D6.0XR0.3X17/24/60-6 | 6.0 | 3 | 6.0 | ALU | 17 | 60 | 24 | 0.3 | 38 | |||||||||||||
| 56818516 | AWN51306025 FRESA IN MD 3F D6.0XR0.3X25/32/80-6 | 6.0 | 3 | 6.0 | ALU | 25 | 80 | 32 | 0.3 | 38 | |||||||||||||
| 52576543 | AWN51308022 FRESA IN MD 3F D8.0XR0.3X22/29/70-8 | 8.0 | 3 | 8.0 | ALU | 22 | 70 | 29 | 0.3 | 38 | |||||||||||||
| 51148980 | AWN51308030 FRESA IN MD 3F D8.0XR0.3X30/37/90-8 | 8.0 | 3 | 8.0 | ALU | 30 | 90 | 37 | 0.3 | 38 | |||||||||||||
| 86750651 | AWN51310027 FRESA IN MD 3F D10.0XR0.5X27/35/75-10 | 10.0 | 3 | 10.0 | ALU | 27 | 75 | 35 | 0.5 | 38 | |||||||||||||
| 32352322 | AWN51310040 FRESA IN MD 3F D10.0XR0.5X40/48/100-10 | 10.0 | 3 | 10.0 | ALU | 40 | 100 | 48 | 0.5 | 38 | |||||||||||||
| 41237469 | AWN51312035 FRESA IN MD 3F D12.0XR0.5X35/45/90-12 | 12.0 | 3 | 12.0 | ALU | 35 | 90 | 45 | 0.5 | 38 | |||||||||||||
| 98871769 | AWN51312050 FRESA IN MD 3F D12.0XR0.5X50/60/110-12 | 12.0 | 3 | 12.0 | ALU | 50 | 110 | 60 | 0.5 | 38 | |||||||||||||
| 57600561 | AWN51316042 FRESA IN MD 3F D16.0XR0.5X42/52/100-16 | 16.0 | 3 | 16.0 | ALU | 42 | 100 | 52 | 0.5 | 38 | |||||||||||||
| 93202232 | AWN51316052 FRESA IN MD 3F D16.0XR0.5X52/62/150-16 | 16.0 | 3 | 16.0 | ALU | 52 | 150 | 62 | 0.5 | 38 | |||||||||||||
| 19585684 | AWN51320048 FRESA IN MD 3F D20.0XR0.5X48/58/100-20 | 20.0 | 3 | 20.0 | ALU | 48 | 100 | 58 | 0.5 | 38 | |||||||||||||
| 15343711 | AWN51320055 FRESA IN MD 3F D20.0XR0.5X55/65/160-20 | 20.0 | 3 | 20.0 | ALU | 55 | 160 | 65 | 0.5 | 38 | |||||||||||||
AWN513 - DLC A-WING   | |||||||||||||||||||||||
| 64398259 | AWN51303011C FR. IN MD 3F D3.0XR0.2X11/16/55-6 DLC | 3.0 | 3 | 6.0 | ALU | 11 | 55 | 16 | 0.2 | 38 | |||||||||||||
| 14221544 | AWN51304013C FR. IN MD 3F D4.0XR0.2X13/18/55-6 DLC | 4.0 | 3 | 6.0 | ALU | 13 | 55 | 18 | 0.2 | 38 | |||||||||||||
| 80761350 | AWN51305017C FR. IN MD 3F D5.0XR0.2X17/22/55-6 DLC | 5.0 | 3 | 6.0 | ALU | 17 | 55 | 22 | 0.2 | 38 | |||||||||||||
| 27460282 | AWN51306017C FR. IN MD 3F D6.0XR0.3X17/24/60-6 DLC | 6.0 | 3 | 6.0 | ALU | 17 | 60 | 24 | 0.3 | 38 | |||||||||||||
| 19306640 | AWN51306025C FR. IN MD 3F D6.0XR0.3X25/32/80-6 DLC | 6.0 | 3 | 6.0 | ALU | 25 | 80 | 32 | 0.3 | 38 | |||||||||||||
| 37097296 | AWN51308022C FR. IN MD 3F D8.0XR0.3X22/29/70-8 DLC | 8.0 | 3 | 8.0 | ALU | 22 | 70 | 29 | 0.3 | 38 | |||||||||||||
| 15044307 | AWN51308030C FR. IN MD 3F D8.0XR0.3X30/37/90-8 DLC | 8.0 | 3 | 8.0 | ALU | 30 | 90 | 37 | 0.3 | 38 | |||||||||||||
| 68456994 | AWN51310027C FR. IN MD 3F D10.0XR0.5X27/35/75-10 DLC | 10.0 | 3 | 10.0 | ALU | 27 | 75 | 35 | 0.5 | 38 | |||||||||||||
| 86247649 | AWN51310040C FR. IN MD 3F D10.0XR0.5X40/48/100-10 DLC | 10.0 | 3 | 10.0 | ALU | 40 | 100 | 48 | 0.5 | 38 | |||||||||||||
| 84820085 | AWN51312035C FR. IN MD 3F D12.0XR0.5X35/45/90-12 DLC | 12.0 | 3 | 12.0 | ALU | 35 | 90 | 45 | 0.5 | 38 | |||||||||||||
| 22923453 | AWN51312050C FR. IN MD 3F D12.0XR0.5X50/60/110-12 DLC | 12.0 | 3 | 12.0 | ALU | 50 | 110 | 60 | 0.5 | 38 | |||||||||||||
| 58525124 | AWN51316042C FR. IN MD 3F D16.0XR0.5X42/52/100-16 DLC | 16.0 | 3 | 16.0 | ALU | 42 | 100 | 52 | 0.5 | 38 | |||||||||||||
| 86628492 | AWN51316052C FR. IN MD 3F D16.0XR0.5X52/62/150-16 DLC | 16.0 | 3 | 16.0 | ALU | 52 | 150 | 62 | 0.5 | 38 | |||||||||||||
| 43950080 | AWN51320048C FR. IN MD 3F D20.0XR0.5X48/58/100-20 DLC | 20.0 | 3 | 20.0 | ALU | 48 | 100 | 58 | 0.5 | 38 | |||||||||||||
| 79551751 | AWN51320055C FR. IN MD 3F D20.0XR0.5X55/65/160-20 DLC | 20.0 | 3 | 20.0 | ALU | 55 | 160 | 65 | 0.5 | 38 | |||||||||||||

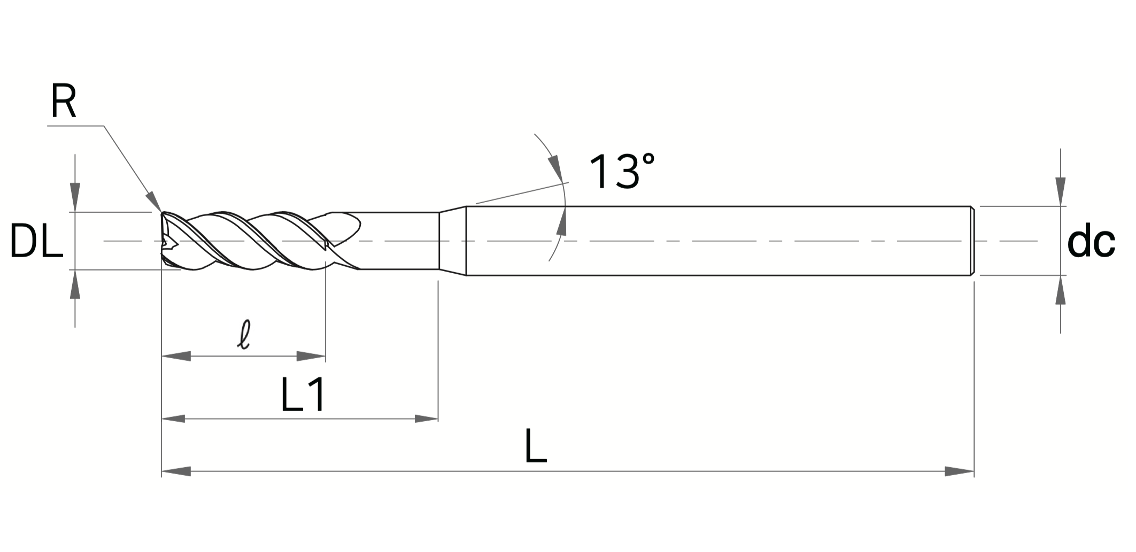

AWR313 A-WING   | |||||||||||||||||||||||
| 96021216 | AWR31301001 FRESA IN MD 3F D1.0XR0.1X3/8/50-6 | 1.0 | 3 | 6.0 | ALU | 3 | 50 | 8 | 0.1 | 45 | |||||||||||||
| 92683446 | AWR31301501 FRESA IN MD 3F D1.5XR0.1X5/10/50-6 | 1.5 | 3 | 6.0 | ALU | 5 | 50 | 10 | 0.1 | 45 | |||||||||||||
| 67313047 | AWR31302001 FRESA IN MD 3F D2.0XR0.1X6/11/50-6 | 2.0 | 3 | 6.0 | ALU | 6 | 50 | 11 | 0.1 | 45 | |||||||||||||
| 62568074 | AWR31302502 FRESA IN MD 3F D2.5XR0.2X10/15/50-6 | 2.5 | 3 | 6.0 | ALU | 10 | 50 | 15 | 0.2 | 45 | |||||||||||||
| 51732000 | AWR31303001 FRESA IN MD 3F D3.0XR0.1X12/17/60-6 | 3.0 | 3 | 6.0 | ALU | 12 | 60 | 17 | 0.1 | 45 | |||||||||||||
| 71834064 | AWR31303002 FRESA IN MD 3F D3.0XR0.2X12/17/60-6 | 3.0 | 3 | 6.0 | ALU | 12 | 60 | 17 | 0.2 | 45 | |||||||||||||
| 99434432 | AWR31304002 FRESA IN MD 3F D4.0XR0.2X14/19/60-6 | 4.0 | 3 | 6.0 | ALU | 14 | 60 | 19 | 0.2 | 45 | |||||||||||||
| 85301308 | AWR31304005 FRESA IN MD 3F D4.0XR0.5X14/19/60-6 | 4.0 | 3 | 6.0 | ALU | 14 | 60 | 19 | 0.5 | 45 | |||||||||||||
| 98367348 | AWR31304010 FRESA IN MD 3F D4.0XR1.0X14/19/60-6 | 4.0 | 3 | 6.0 | ALU | 14 | 60 | 19 | 1.0 | 45 | |||||||||||||
| 33153307 | AWR31306003 FRESA IN MD 3F D6.0XR0.3X17/24/60-6 | 6.0 | 3 | 6.0 | ALU | 17 | 60 | 24 | 0.3 | 45 | |||||||||||||
| 15281213 | AWR31306005 FRESA IN MD 3F D6.0XR0.5X17/24/60-6 | 6.0 | 3 | 6.0 | ALU | 17 | 60 | 24 | 0.5 | 45 | |||||||||||||
| 22718437 | AWR31306010 FRESA IN MD 3F D6.0XR1.0X17/24/60-6 | 6.0 | 3 | 6.0 | ALU | 17 | 60 | 24 | 1.0 | 45 | |||||||||||||
| 77035327 | AWR31306015 FRESA IN MD 3F D6.0XR1.5X17/24/60-6 | 6.0 | 3 | 6.0 | ALU | 17 | 60 | 24 | 1.5 | 45 | |||||||||||||
| 55424259 | AWR31306020 FRESA IN MD 3F D6.0XR2.0X17/24/60-6 | 6.0 | 3 | 6.0 | ALU | 17 | 60 | 24 | 2.0 | 45 | |||||||||||||
| 87246241 | AWR31308003 FRESA IN MD 3F D8.0XR0.3X20/27/60-8 | 8.0 | 3 | 8.0 | ALU | 20 | 60 | 27 | 0.3 | 45 | |||||||||||||
| 73595757 | AWR31308005 FRESA IN MD 3F D8.0XR0.5X20/27/60-8 | 8.0 | 3 | 8.0 | ALU | 20 | 60 | 27 | 0.5 | 45 | |||||||||||||
| 64166889 | AWR31308010 FRESA IN MD 3F D8.0XR1.0X20/27/60-8 | 8.0 | 3 | 8.0 | ALU | 20 | 60 | 27 | 1.0 | 45 | |||||||||||||
| 73956239 | AWR31308015 FRESA IN MD 3F D8.0XR1.5X20/27/60-8 | 8.0 | 3 | 8.0 | ALU | 20 | 60 | 27 | 1.5 | 45 | |||||||||||||
| 11094326 | AWR31308020 FRESA IN MD 3F D8.0XR2.0X20/27/60-8 | 8.0 | 3 | 8.0 | ALU | 20 | 60 | 27 | 2.0 | 45 | |||||||||||||
| 76668850 | AWR31308030 FRESA IN MD 3F D8.0XR3.0X20/27/60-8 | 8.0 | 3 | 8.0 | ALU | 20 | 60 | 27 | 3.0 | 45 | 2.32 | ||||||||||||
| 10992527 | AWR31310003 FRESA IN MD 3F D10.0XR0.3X25/33/70-10 | 10.0 | 3 | 10.0 | ALU | 25 | 70 | 33 | 0.3 | 45 | |||||||||||||
| 16097984 | AWR31310005 FRESA IN MD 3F D10.0XR0.5X25/33/70-10 | 10.0 | 3 | 10.0 | ALU | 25 | 70 | 33 | 0.5 | 45 | |||||||||||||
| 68545388 | AWR31310010 FRESA IN MD 3F D10.0XR1.0X25/33/70-10 | 10.0 | 3 | 10.0 | ALU | 25 | 70 | 33 | 1.0 | 45 | |||||||||||||
| 93331345 | AWR31310015 FRESA IN MD 3F D10.0XR1.5X25/33/70-10 | 10.0 | 3 | 10.0 | ALU | 25 | 70 | 33 | 1.5 | 45 | |||||||||||||
| 85309682 | AWR31310020 FRESA IN MD 3F D10.0XR2.0X25/33/70-10 | 10.0 | 3 | 10.0 | ALU | 25 | 70 | 33 | 2.0 | 45 | |||||||||||||
| 87600729 | AWR31310030 FRESA IN MD 3F D10.0XR3.0X25/33/70-10 | 10.0 | 3 | 10.0 | ALU | 25 | 70 | 33 | 3.0 | 45 | |||||||||||||
| 26608301 | AWR31310040 FRESA IN MD 3F D10.0XR4.0X25/33/70-10 | 10.0 | 3 | 10.0 | ALU | 25 | 70 | 33 | 4.0 | 45 | |||||||||||||
| 44840877 | AWR31312005 FRESA IN MD 3F D12.0XR0.5X30/40/80-12 | 12.0 | 3 | 12.0 | ALU | 30 | 80 | 40 | 0.5 | 45 | |||||||||||||
| 69164554 | AWR31312010 FRESA IN MD 3F D12.0XR1.0X30/40/80-12 | 12.0 | 3 | 12.0 | ALU | 30 | 80 | 40 | 1.0 | 45 | |||||||||||||
| 13800943 | AWR31312020 FRESA IN MD 3F D12.0XR2.0X30/40/80-12 | 12.0 | 3 | 12.0 | ALU | 30 | 80 | 40 | 2.0 | 45 | |||||||||||||
| 57342839 | AWR31312030 FRESA IN MD 3F D12.0XR3.0X30/40/80-12 | 12.0 | 3 | 12.0 | ALU | 30 | 80 | 40 | 3.0 | 45 | |||||||||||||
| 62448295 | AWR31312040 FRESA IN MD 3F D12.0XR4.0X30/40/80-12 | 12.0 | 3 | 12.0 | ALU | 30 | 80 | 40 | 4.0 | 45 | |||||||||||||
| 91918147 | AWR31314005 FRESA IN MD 3F D14.0XR0.5X35/45/85-16 | 14.0 | 3 | 16.0 | ALU | 35 | 85 | 45 | 0.5 | 45 | |||||||||||||
| 61863854 | AWR31314010 FRESA IN MD 3F D14.0XR1.0X35/45/85-16 | 14.0 | 3 | 16.0 | ALU | 35 | 85 | 45 | 1.0 | 45 | |||||||||||||
| 43529479 | AWR31314010S14 FRESA IN MD 3F D14.0XR1.0X35/45/85-14 | 14.0 | 3 | 14.0 | ALU | 35 | 85 | 45 | 1.0 | 45 | |||||||||||||
| 65038746 | AWR31314020 FRESA IN MD 3F D14.0XR2.0X35/45/85-16 | 14.0 | 3 | 16.0 | ALU | 35 | 85 | 45 | 2.0 | 45 | |||||||||||||
| 74828098 | AWR31314020S14 FRESA IN MD 3F D14.0XR2.0X35/45/85-14 | 14.0 | 3 | 14.0 | ALU | 35 | 85 | 45 | 2.0 | 45 | |||||||||||||
| 40089911 | AWR31314030 FRESA IN MD 3F D14.0XR3.0X35/45/85-16 | 14.0 | 3 | 16.0 | ALU | 35 | 85 | 45 | 3.0 | 45 | |||||||||||||
| 52693671 | AWR31314030S14 FRESA IN MD 3F D14.0XR3.0X35/45/85-14 | 14.0 | 3 | 14.0 | ALU | 35 | 85 | 45 | 3.0 | 45 | |||||||||||||
| 60613536 | AWR31314040 FRESA IN MD 3F D14.0XR4.0X35/45/85-16 | 14.0 | 3 | 16.0 | ALU | 35 | 85 | 45 | 4.0 | 45 | |||||||||||||
| 65718993 | AWR31314040S14 FRESA IN MD 3F D14.0XR4.0X35/45/85-14 | 14.0 | 3 | 14.0 | ALU | 35 | 85 | 45 | 4.0 | 45 | |||||||||||||
| 60532097 | AWR31314050 FRESA IN MD 3F D14.0XR5.0X35/45/85-16 | 14.0 | 3 | 16.0 | ALU | 35 | 85 | 45 | 5.0 | 45 | |||||||||||||
| 48791822 | AWR31314050S14 FRESA IN MD 3F D14.0XR5.0X35/45/85-14 | 14.0 | 3 | 14.0 | ALU | 35 | 85 | 45 | 5.0 | 45 | |||||||||||||
| 79709597 | AWR31316005 FRESA IN MD 3F D16.0XR0.5X40/50/90-16 | 16.0 | 3 | 16.0 | ALU | 40 | 90 | 50 | 0.5 | 45 | |||||||||||||
| 57656608 | AWR31316010 FRESA IN MD 3F D16.0XR1.0X40/50/90-16 | 16.0 | 3 | 16.0 | ALU | 40 | 90 | 50 | 1.0 | 45 | |||||||||||||
| 87167181 | AWR31316020 FRESA IN MD 3F D16.0XR2.0X40/50/90-16 | 16.0 | 3 | 16.0 | ALU | 40 | 90 | 50 | 2.0 | 45 | |||||||||||||
| 56208685 | AWR31316030 FRESA IN MD 3F D16.0XR3.0X40/50/90-16 | 16.0 | 3 | 16.0 | ALU | 40 | 90 | 50 | 3.0 | 45 | |||||||||||||
| 56188325 | AWR31316040 FRESA IN MD 3F D16.0XR4.0X40/50/90-16 | 16.0 | 3 | 16.0 | ALU | 40 | 90 | 50 | 4.0 | 45 | |||||||||||||
| 25229829 | AWR31316050 FRESA IN MD 3F D16.0XR5.0X40/50/90-16 | 16.0 | 3 | 16.0 | ALU | 40 | 90 | 50 | 5.0 | 45 | |||||||||||||
| 14896757 | AWR31320005 FRESA IN MD 3F D20.0XR0.5X45/55/100-20 | 20.0 | 3 | 20.0 | ALU | 45 | 100 | 55 | 0.5 | 45 | |||||||||||||
| 13469193 | AWR31320010 FRESA IN MD 3F D20.0XR1.0X45/55/100-20 | 20.0 | 3 | 20.0 | ALU | 45 | 100 | 55 | 1.0 | 45 | |||||||||||||
| 80009000 | AWR31320020 FRESA IN MD 3F D20.0XR2.0X45/55/100-20 | 20.0 | 3 | 20.0 | ALU | 45 | 100 | 55 | 2.0 | 45 | |||||||||||||
| 81395845 | AWR31320030 FRESA IN MD 3F D20.0XR3.0X45/55/100-20 | 20.0 | 3 | 20.0 | ALU | 45 | 100 | 55 | 3.0 | 45 | |||||||||||||
| 60750060 | AWR31320040 FRESA IN MD 3F D20.0XR4.0X45/55/100-20 | 20.0 | 3 | 20.0 | ALU | 45 | 100 | 55 | 4.0 | 45 | |||||||||||||
| 16664444 | AWR31320050 FRESA IN MD 3F D20.0XR5.0X45/55/100-20 | 20.0 | 3 | 20.0 | ALU | 45 | 100 | 55 | 5.0 | 45 | |||||||||||||
AWR313 - DLC A-WING   | |||||||||||||||||||||||
| 24274153 | AWR31301001C FR. IN MD 3F D1.0XR0.1X3/8/50-6 DLC | 1.0 | 3 | 6.0 | ALU | 3 | 50 | 8 | 0.1 | 45 | |||||||||||||
| 99216467 | AWR31301501C FR. IN MD 3F D1.5XR0.1X5/10/50-6 DLC | 1.5 | 3 | 6.0 | ALU | 5 | 50 | 10 | 0.1 | 45 | |||||||||||||
| 56035052 | AWR31302001C FR. IN MD 3F D2.0XR0.1X6/11/50-6 DLC | 2.0 | 3 | 6.0 | ALU | 6 | 50 | 11 | 0.1 | 45 | |||||||||||||
| 24573556 | AWR31302502C FR. IN MD 3F D2.5XR0.2X10/15/50-6 DLC | 2.5 | 3 | 6.0 | ALU | 10 | 50 | 15 | 0.2 | 45 | |||||||||||||
| 90610362 | AWR31303001C FR. IN MD 3F D3.0XR0.1X12/17/60-6 DLC | 3.0 | 3 | 6.0 | ALU | 12 | 60 | 17 | 0.1 | 45 | |||||||||||||
| 90087002 | AWR31303002C FR. IN MD 3F D3.0XR0.2X12/17/60-6 DLC | 3.0 | 3 | 6.0 | ALU | 12 | 60 | 17 | 0.2 | 45 | |||||||||||||
| 52996687 | AWR31304002C FR. IN MD 3F D4.0XR0.2X14/19/60-6 DLC | 4.0 | 3 | 6.0 | ALU | 14 | 60 | 19 | 0.2 | 45 | 0.54 | ||||||||||||
| 84336025 | AWR31304005C FR. IN MD 3F D4.0XR0.5X14/19/60-6 DLC | 4.0 | 3 | 6.0 | ALU | 14 | 60 | 19 | 0.5 | 45 | |||||||||||||
| 85682149 | AWR31304010C FR. IN MD 3F D4.0XR1.0X14/19/60-6 DLC | 4.0 | 3 | 6.0 | ALU | 14 | 60 | 19 | 1.0 | 45 | |||||||||||||
| 79529972 | AWR31306003C FR. IN MD 3F D6.0XR0.3X17/24/60-6 DLC | 6.0 | 3 | 6.0 | ALU | 17 | 60 | 24 | 0.3 | 45 | |||||||||||||
| 92596014 | AWR31306005C FR. IN MD 3F D6.0XR0.5X17/24/60-6 DLC | 6.0 | 3 | 6.0 | ALU | 17 | 60 | 24 | 0.5 | 45 | |||||||||||||
| 67687897 | AWR31306010C FR. IN MD 3F D6.0XR1.0X17/24/60-6 DLC | 6.0 | 3 | 6.0 | ALU | 17 | 60 | 24 | 1.0 | 45 | |||||||||||||
| 69978945 | AWR31306015C FR. IN MD 3F D6.0XR1.5X17/24/60-6 DLC | 6.0 | 3 | 6.0 | ALU | 17 | 60 | 24 | 1.5 | 45 | |||||||||||||
| 67586098 | AWR31306020C FR. IN MD 3F D6.0XR2.0X17/24/60-6 DLC | 6.0 | 3 | 6.0 | ALU | 17 | 60 | 24 | 2.0 | 45 | |||||||||||||
| 80189858 | AWR31308003C FR. IN MD 3F D8.0XR0.3X20/27/60-8 DLC | 8.0 | 3 | 8.0 | ALU | 20 | 60 | 27 | 0.3 | 45 | |||||||||||||
| 94663105 | AWR31308005C FR. IN MD 3F D8.0XR0.5X20/27/60-8 DLC | 8.0 | 3 | 8.0 | ALU | 20 | 60 | 27 | 0.5 | 45 | |||||||||||||
| 23357964 | AWR31308010C FR. IN MD 3F D8.0XR1.0X20/27/60-8 DLC | 8.0 | 3 | 8.0 | ALU | 20 | 60 | 27 | 1.0 | 45 | |||||||||||||
| 57994352 | AWR31308015C FR. IN MD 3F D8.0XR1.5X20/27/60-8 DLC | 8.0 | 3 | 8.0 | ALU | 20 | 60 | 27 | 1.5 | 45 | |||||||||||||
| 94037944 | AWR31308020C FR. IN MD 3F D8.0XR2.0X20/27/60-8 DLC | 8.0 | 3 | 8.0 | ALU | 20 | 60 | 27 | 2.0 | 45 | |||||||||||||
| 38674333 | AWR31308030C FR. IN MD 3F D8.0XR3.0X20/27/60-8 DLC | 8.0 | 3 | 8.0 | ALU | 20 | 60 | 27 | 3.0 | 45 | |||||||||||||
| 93936145 | AWR31310003C FR. IN MD 3F D10.0XR0.3X25/33/70-10 DLC | 10.0 | 3 | 10.0 | ALU | 25 | 70 | 33 | 0.3 | 45 | |||||||||||||
| 37165329 | AWR31310005C FR. IN MD 3F D10.0XR0.5X25/33/70-10 DLC | 10.0 | 3 | 10.0 | ALU | 25 | 70 | 33 | 0.5 | 45 | |||||||||||||
| 20238158 | AWR31310010C FR. IN MD 3F D10.0XR1.0X25/33/70-10 DLC | 10.0 | 3 | 10.0 | ALU | 25 | 70 | 33 | 1.0 | 45 | |||||||||||||
| 45024116 | AWR31310015C FR. IN MD 3F D10.0XR1.5X25/33/70-10 DLC | 10.0 | 3 | 10.0 | ALU | 25 | 70 | 33 | 1.5 | 45 | |||||||||||||
| 25282536 | AWR31310020C FR. IN MD 3F D10.0XR2.0X25/33/70-10 DLC | 10.0 | 3 | 10.0 | ALU | 25 | 70 | 33 | 2.0 | 45 | |||||||||||||
| 68824431 | AWR31310030C FR. IN MD 3F D10.0XR3.0X25/33/70-10 DLC | 10.0 | 3 | 10.0 | ALU | 25 | 70 | 33 | 3.0 | 45 | |||||||||||||
| 10646411 | AWR31310040C FR. IN MD 3F D10.0XR4.0X25/33/70-10 DLC | 10.0 | 3 | 10.0 | ALU | 25 | 70 | 33 | 4.0 | 45 | |||||||||||||
| 15751868 | AWR31312005C FR. IN MD 3F D12.0XR0.5X30/40/80-12 DLC | 12.0 | 3 | 12.0 | ALU | 30 | 80 | 40 | 0.5 | 45 | |||||||||||||
| 29762832 | AWR31312010C FR. IN MD 3F D12.0XR1.0X30/40/80-12 DLC | 12.0 | 3 | 12.0 | ALU | 30 | 80 | 40 | 1.0 | 45 | |||||||||||||
| 65806424 | AWR31312020C FR. IN MD 3F D12.0XR2.0X30/40/80-12 DLC | 12.0 | 3 | 12.0 | ALU | 30 | 80 | 40 | 2.0 | 45 | |||||||||||||
| 90130102 | AWR31312030C FR. IN MD 3F D12.0XR3.0X30/40/80-12 DLC | 12.0 | 3 | 12.0 | ALU | 30 | 80 | 40 | 3.0 | 45 | |||||||||||||
| 86330050 | AWR31312040C FR. IN MD 3F D12.0XR4.0X30/40/80-12 DLC | 12.0 | 3 | 12.0 | ALU | 30 | 80 | 40 | 4.0 | 45 | |||||||||||||
| 73141850 | AWR31314005C FR. IN MD 3F D14.0XR0.5X35/45/85-16 DLC | 14.0 | 3 | 16.0 | ALU | 35 | 85 | 45 | 0.5 | 45 | |||||||||||||
| 50585860 | AWR31314010C FR. IN MD 3F D14.0XR1.0X35/45/85-16 DLC | 14.0 | 3 | 16.0 | ALU | 35 | 85 | 45 | 1.0 | 45 | |||||||||||||
| 83815045 | AWR31314010S14C FR. IN MD 3F D14.0XR1.0X35/45/85-14 DLC | 14.0 | 3 | 14.0 | ALU | 35 | 85 | 45 | 1.0 | 45 | |||||||||||||
| 24229820 | AWR31314020C FR. IN MD 3F D14.0XR2.0X35/45/85-16 DLC | 14.0 | 3 | 16.0 | ALU | 35 | 85 | 45 | 2.0 | 45 | |||||||||||||
| 76677224 | AWR31314020S14C FR. IN MD 3F D14.0XR2.0X35/45/85-14 DLC | 14.0 | 3 | 14.0 | ALU | 35 | 85 | 45 | 2.0 | 45 | |||||||||||||
| 18499205 | AWR31314030C FR. IN MD 3F D14.0XR3.0X35/45/85-16 DLC | 14.0 | 3 | 16.0 | ALU | 35 | 85 | 45 | 3.0 | 45 | |||||||||||||
| 77982630 | AWR31314030S14C FR. IN MD 3F D14.0XR3.0X35/45/85-14 DLC | 14.0 | 3 | 14.0 | ALU | 35 | 85 | 45 | 3.0 | 45 | |||||||||||||
| 83088086 | AWR31314040C FR. IN MD 3F D14.0XR4.0X35/45/85-16 DLC | 14.0 | 3 | 16.0 | ALU | 35 | 85 | 45 | 4.0 | 45 | |||||||||||||
| 25854989 | AWR31314040S14C FR. IN MD 3F D14.0XR4.0X35/45/85-14 DLC | 14.0 | 3 | 14.0 | ALU | 35 | 85 | 45 | 4.0 | 45 | |||||||||||||
| 14114712 | AWR31314050C FR. IN MD 3F D14.0XR5.0X35/45/85-16 DLC | 14.0 | 3 | 16.0 | ALU | 35 | 85 | 45 | 5.0 | 45 | |||||||||||||
| 74563422 | AWR31314050S14C FR. IN MD 3F D14.0XR5.0X35/45/85-14 DLC | 14.0 | 3 | 14.0 | ALU | 35 | 85 | 45 | 5.0 | 45 | |||||||||||||
| 93761281 | AWR31316005C FR. IN MD 3F D16.0XR0.5X40/50/90-16 DLC | 16.0 | 3 | 16.0 | ALU | 40 | 90 | 50 | 0.5 | 45 | |||||||||||||
| 82021005 | AWR31316010C FR. IN MD 3F D16.0XR1.0X40/50/90-16 DLC | 16.0 | 3 | 16.0 | ALU | 40 | 90 | 50 | 1.0 | 45 | |||||||||||||
| 71687933 | AWR31316020C FR. IN MD 3F D16.0XR2.0X40/50/90-16 DLC | 16.0 | 3 | 16.0 | ALU | 40 | 90 | 50 | 2.0 | 45 | |||||||||||||
| 51042149 | AWR31316030C FR. IN MD 3F D16.0XR3.0X40/50/90-16 DLC | 16.0 | 3 | 16.0 | ALU | 40 | 90 | 50 | 3.0 | 45 | |||||||||||||
| 81959926 | AWR31316040C FR. IN MD 3F D16.0XR4.0X40/50/90-16 DLC | 16.0 | 3 | 16.0 | ALU | 40 | 90 | 50 | 4.0 | 45 | |||||||||||||
| 39281513 | AWR31316050C FR. IN MD 3F D16.0XR5.0X40/50/90-16 DLC | 16.0 | 3 | 16.0 | ALU | 40 | 90 | 50 | 5.0 | 45 | |||||||||||||
| 99730222 | AWR31320005C FR. IN MD 3F D20.0XR0.5X45/55/100-20 DLC | 20.0 | 3 | 20.0 | ALU | 45 | 100 | 55 | 0.5 | 45 | |||||||||||||
| 15800960 | AWR31320010C FR. IN MD 3F D20.0XR1.0X45/55/100-20 DLC | 20.0 | 3 | 20.0 | ALU | 45 | 100 | 55 | 1.0 | 45 | |||||||||||||
| 85155176 | AWR31320020C FR. IN MD 3F D20.0XR2.0X45/55/100-20 DLC | 20.0 | 3 | 20.0 | ALU | 45 | 100 | 55 | 2.0 | 45 | |||||||||||||
| 76229308 | AWR31320030C FR. IN MD 3F D20.0XR3.0X45/55/100-20 DLC | 20.0 | 3 | 20.0 | ALU | 45 | 100 | 55 | 3.0 | 45 | 0.84 | ||||||||||||
| 12925473 | AWR31320040C FR. IN MD 3F D20.0XR4.0X45/55/100-20 DLC | 20.0 | 3 | 20.0 | ALU | 45 | 100 | 55 | 4.0 | 45 | |||||||||||||
| 60247060 | AWR31320050C FR. IN MD 3F D20.0XR5.0X45/55/100-20 DLC | 20.0 | 3 | 20.0 | ALU | 45 | 100 | 55 | 5.0 | 45 | |||||||||||||
UDR503 U-WING   | |||||||||||||||||||||||
| 63330486 | UDR50302003SE1 FRESA IN MD 3F D2.0XR0.3X6/45-6 2 : 2) | 2.0 | 3 | 6 | 30-50 | 6 | 45 | 0.3 | 45 | ||||||||||||||
| 50564658 | UDR50303003SE1 FRESA IN MD 3F D3.0XR0.3×8/45-6 (R2 : 3) | 3.0 | 3 | 6 | 30-50 | 8 | 45 | 0.3 | 45 | ||||||||||||||
| 97998017 | UDR50306005 - U-WING FRESA IN MD 3F D6,0/R0,5/10/90/6 | 6.0 | 3 | 6 | 30-50 | 10 | 90 | 0.5 | 45 | ||||||||||||||
| 75965388 | UDR50306010 - U-WING FRESA IN MD 3F D6,0/R1,0/10/90/6 | 6.0 | 3 | 6 | 30-50 | 10 | 90 | 1 | 45 | ||||||||||||||
| 14089116 | UDR50306020 - U-WING FRESA IN MD 3F D6,0/R2,0/10/90/6 | 6.0 | 3 | 6 | 30-50 | 10 | 90 | 2.0 | 45 | ||||||||||||||
| 92369199 | UDR50308005 - U-WING FRESA IN MD 3F D8,0/R0,5/16/100/8 | 8.0 | 3 | 8 | 30-50 | 16 | 100 | 0.5 | 45 | ||||||||||||||
| 40805638 | UDR50308010 - U-WING FRESA IN MD 3F D8,0/R1,0/16/100/8 | 8.0 | 3 | 8 | 30-50 | 16 | 100 | 1 | 45 | ||||||||||||||
| 29085722 | UDR50308020 - U-WING FRESA IN MD 3F D8,0/R2,0/16/100/8 | 8.0 | 3 | 8 | 30-50 | 16 | 100 | 2.0 | 45 | ||||||||||||||
| 17365806 | UDR50310005 - U-WING FRESA IN MD 3F D10,0/R0,5/20/100/10 | 10.0 | 3 | 10 | 30-50 | 20 | 100 | 0.5 | 45 | ||||||||||||||
| 45489533 | UDR50310010 - U-WING FRESA IN MD 3F D10,0/R1,0/20/100/10 | 10.0 | 3 | 10 | 30-50 | 20 | 100 | 1 | 45 | ||||||||||||||
| 33769616 | UDR50310020 - U-WING FRESA IN MD 3F D10,0/R2,0/20/100/10 | 10.0 | 3 | 10 | 30-50 | 20 | 100 | 2.0 | 45 | ||||||||||||||
| 72206057 | UDR50312005 - U-WING FRESA IN MD 3F D12,0/R0,5/24/110/12 | 12.0 | 3 | 12 | 30-50 | 24 | 110 | 0.5 | 45 | ||||||||||||||
| 50173427 | UDR50312010 - U-WING FRESA IN MD 3F D12,0/R1,0/24/110/12 | 12.0 | 3 | 12 | 30-50 | 24 | 110 | 1 | 45 | ||||||||||||||
| 28140799 | UDR50312020 - U-WING FRESA IN MD 3F D12,0/R2,0/24/110/12 | 12.0 | 3 | 12 | 30-50 | 24 | 110 | 2.0 | 45 | ||||||||||||||
| 26733595 | UDR50316005 - U-WING FRESA IN MD 3F D16,0/R0,5/32/150/16 | 16.0 | 3 | 16 | 30-50 | 32 | 150 | 0.5 | 45 | ||||||||||||||
| 44544610 | UDR50316010 - U-WING FRESA IN MD 3F D16,0/R1,0/32/150/16 | 16.0 | 3 | 16 | 30-50 | 32 | 150 | 1 | 45 | ||||||||||||||
| 32824694 | UDR50320005 - U-WING FRESA IN MD 3F D20,0/R0,5/40/150/20 | 20.0 | 3 | 20 | 30-50 | 40 | 150 | 0.5 | 45 | ||||||||||||||
| 21104778 | UDR50320010 - U-WING FRESA IN MD 3F D20,0/R1,0/40/150/20 | 20.0 | 3 | 20 | 30-50 | 40 | 150 | 1 | 45 | ||||||||||||||
