Z3 - SFERICA

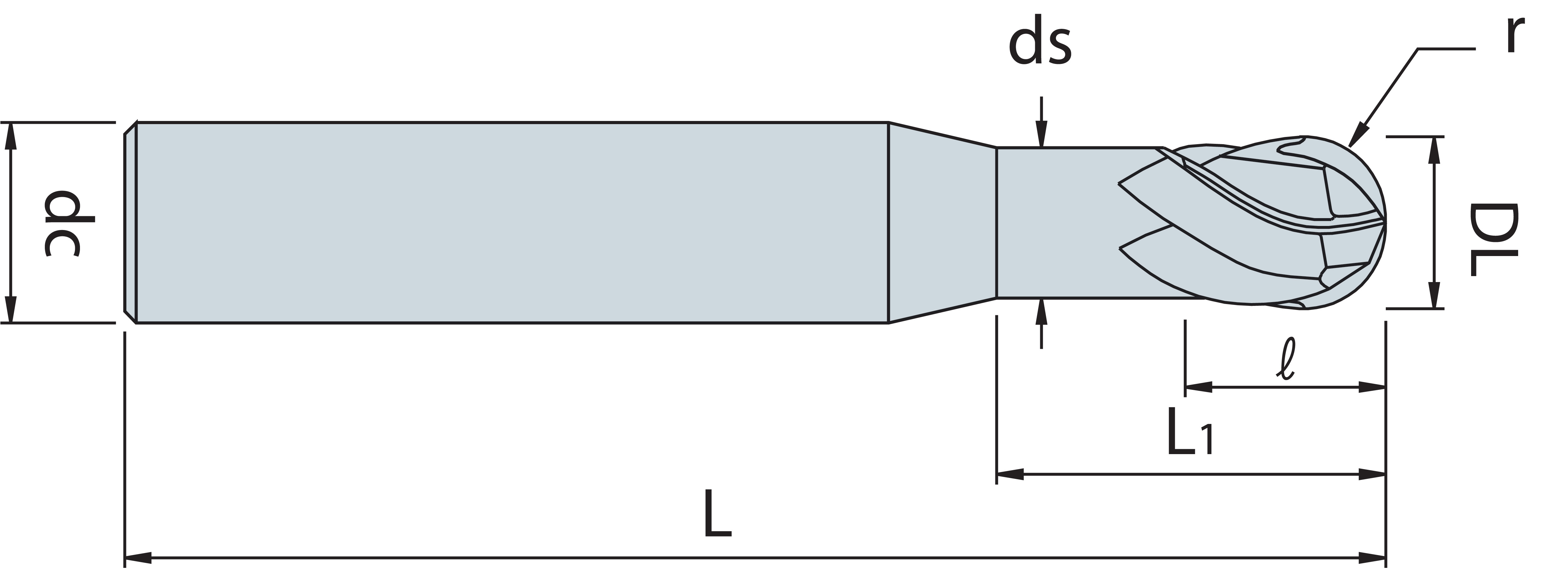

Codice | Descrizione | Diametro | HRc | L2 | L1 L.Utile | L3 L.Scarico | D2 D.Gambo | Raggio | Disp. | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

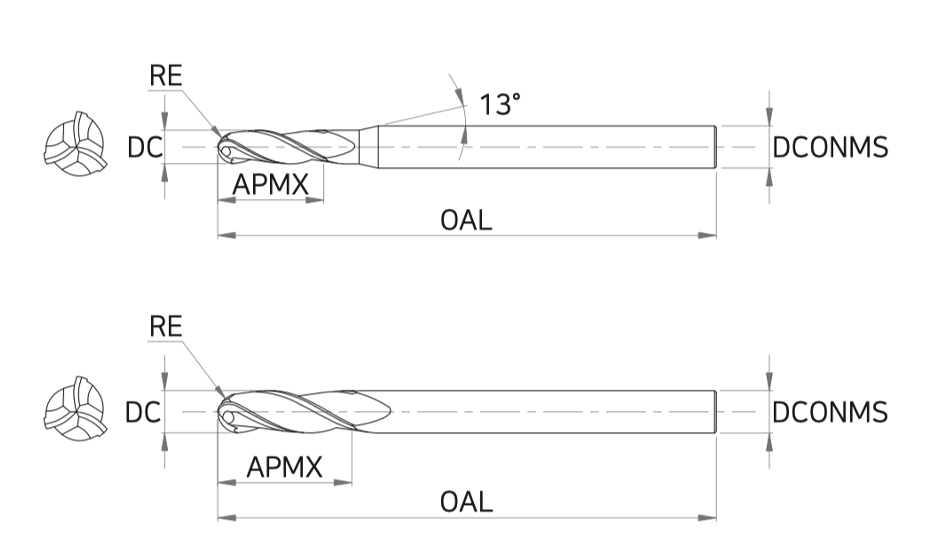

DB703 ZAMUS STAR ![]() | |||||||||||||||||||||||
12367389 | DB703020 FRESA IN MD 3F R1,0/2,5/5/50/6 | 2 | Fino a 55 | 50 | 2.5 | 5 | 6 | 1 | |||||||||||||||
97912603 | DB703025 FRESA IN MD 3F R1,25/3/7/50/6 | 2.5 | Fino a 55 | 50 | 3 | 7 | 6 | 1.25 | |||||||||||||||
12369307 | DB703030 FRESA IN MD 3F R1,5/4/10/60/6 | 3 | Fino a 55 | 60 | 4 | 10 | 6 | 1.5 | |||||||||||||||
34629127 | DB703030S FRESA IN MD 3F R1,5/4/10/50/6 | 3 | Fino a 55 | 50 | 4 | 10 | 6 | 1.5 | |||||||||||||||
52440142 | DB703031 FRESA IN MD 3F R1,5/4/10/70/6 | 3 | Fino a 55 | 70 | 4 | 10 | 6 | 1.5 | |||||||||||||||
12370103 | DB703040 FRESA IN MD 3F R2,0/5/10/60/6 | 4 | Fino a 55 | 60 | 5 | 10 | 6 | 2 | |||||||||||||||
89469378 | DB703040S FRESA IN MD 3F R2,0/5/10/50/6 | 4 | Fino a 55 | 50 | 5 | 10 | 6 | 2 | |||||||||||||||
96967681 | DB703041 FRESA IN MD 3F R2,0/5/10/70/6 | 4 | Fino a 55 | 70 | 5 | 10 | 6 | 2 | |||||||||||||||
35091409 | DB703050 FRESA IN MD 3F R2,5/6/12/60/6 | 5 | Fino a 55 | 60 | 6 | 12 | 6 | 2.5 | |||||||||||||||
12372495 | DB703060 FRESA IN MD 3F R3,0/7/12/60/6 | 6 | Fino a 55 | 60 | 7 | 12 | 6 | 3 | |||||||||||||||
12372252 | DB703061 FRESA IN MD 3F R3,0/7/12/90/6 | 6 | Fino a 55 | 90 | 7 | 12 | 6 | 3 | |||||||||||||||
12371428 | DB703080 FRESA IN MD 3F R4,0/9/15/70/8 | 8 | Fino a 55 | 70 | 9 | 15 | 8 | 4 | |||||||||||||||
10244371 | DB703081 FRESA IN MD 3F R4,0/9/15/100/8 | 8 | Fino a 55 | 100 | 9 | 15 | 8 | 4 | |||||||||||||||
12370344 | DB703100 FRESA IN MD 3F R5,0/11/25/75/10 | 10 | Fino a 55 | 75 | 11 | 25 | 10 | 5 | |||||||||||||||
12370105 | DB703101 FRESA IN MD 3F R5,0/11/25/100/10 | 10 | Fino a 55 | 100 | 11 | 25 | 10 | 5 | |||||||||||||||
12371264 | DB703120 FRESA IN MD 3F R6,0/12/25/80/12 | 12 | Fino a 55 | 80 | 12 | 25 | 12 | 6 | |||||||||||||||
85710046 | DB703121 FRESA IN MD 3F R6,0/12/25/110/12 | 12 | Fino a 55 | 110 | 12 | 25 | 12 | 6 | |||||||||||||||
ESB703 E-STAR ![]() | |||||||||||||||||||||||
79797760 | ESB703020 FRESA IN MD 3F R1,0/2,5/5/50/6 | 2 | 50-63 | 50 | 2.5 | 5 | 6 | 1 | |||||||||||||||
19308332 | ESB703025 FRESA IN MD 3F R1,25/3/7/50/6 | 2.5 | 50-63 | 50 | 3 | 7 | 6 | 1.25 | |||||||||||||||
66629920 | ESB703030 FRESA IN MD 3F R1,5/4/10/60/6 | 3 | 50-63 | 60 | 4 | 10 | 6 | 1.5 | |||||||||||||||
56296848 | ESB703030S FRESA IN MD 3F R1,5/4/10/50/6 | 3 | 50-63 | 50 | 4 | 10 | 6 | 1.5 | |||||||||||||||
72680299 | ESB703031 FRESA IN MD 3F R1,5/4/10/70/6 | 3 | 50-63 | 70 | 4 | 10 | 6 | 1.5 | |||||||||||||||
60940024 | ESB703040 FRESA IN MD 3F R2,0/5/10/60/6 | 4 | 50-63 | 60 | 5 | 10 | 6 | 2 | |||||||||||||||
49199747 | ESB703040S FRESA IN MD 3F R2,0/5/10/50/6 | 4 | 50-63 | 50 | 5 | 10 | 6 | 2 | |||||||||||||||
18241251 | ESB703041 FRESA IN MD 3F R2,0/5/10/70/6 | 4 | 50-63 | 70 | 5 | 10 | 6 | 2 | |||||||||||||||
78689959 | ESB703050 FRESA IN MD 3F R2,5/6/12/60/6 | 5 | 50-63 | 60 | 6 | 12 | 6 | 2.5 | |||||||||||||||
56636971 | ESB703060 FRESA IN MD 3F R3,0/7/12/60/6 | 6 | 50-63 | 60 | 7 | 12 | 6 | 3 | |||||||||||||||
35991187 | ESB703061 FRESA IN MD 3F R3,0/7/12/90/6 | 6 | 50-63 | 90 | 7 | 12 | 6 | 3 | |||||||||||||||
55189047 | ESB703080 FRESA IN MD 3F R4,0/9/15/70/8 | 8 | 50-63 | 70 | 9 | 15 | 8 | 4 | |||||||||||||||
13917839 | ESB703081 FRESA IN MD 3F R4,0/9/15/100/8 | 8 | 50-63 | 100 | 9 | 15 | 8 | 4 | |||||||||||||||
53741123 | ESB703100 FRESA IN MD 3F R5,0/11/25/75/10 | 10 | 50-63 | 75 | 11 | 25 | 10 | 5 | |||||||||||||||
40593642 | ESB703101 FRESA IN MD 3F R5,0/11/25/100/10 | 10 | 50-63 | 100 | 11 | 25 | 10 | 5 | |||||||||||||||
70104215 | ESB703120 FRESA IN MD 3F R6,0/12/25/80/12 | 12 | 50-63 | 80 | 12 | 25 | 12 | 6 | |||||||||||||||
89302075 | ESB703121 FRESA IN MD 3F R6,0/12/25/110/12 | 12 | 50-63 | 110 | 12 | 25 | 12 | 6 | |||||||||||||||

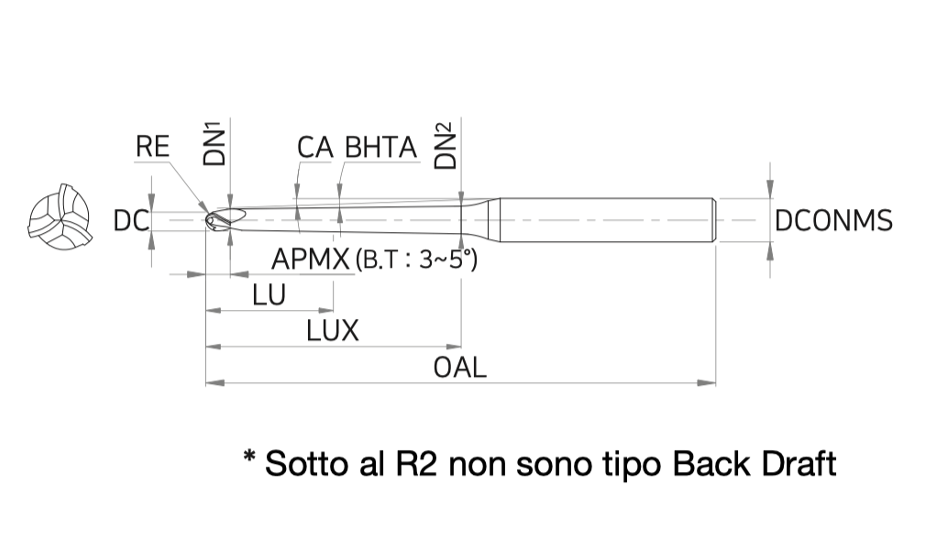

ESTNB30 E-STAR ![]() | |||||||||||||||||||||||
55820924 | ESTNB3020-12-04 FRESA IN MD 3F R1,0/1,7/12/55/6 | 2 | 50-63 | 55 | 1.7 | 12 | 6 | 1 | |||||||||||||||
73611580 | ESTNB3020-16-04 FRESA IN MD 3F R1,0/1,7/16/60/6 | 2 | 50-63 | 60 | 1.7 | 16 | 6 | 1 | |||||||||||||||
63278508 | ESTNB3020-20-04 FRESA IN MD 3F R1,0/1,7/20/65/6 | 2 | 50-63 | 65 | 1.7 | 20 | 6 | 1 | |||||||||||||||
95603489 | ESTNB3020-20-09 FRESA IN MD 3F R1,0/1,7/20/65/6 | 2 | 50-63 | 65 | 1.7 | 20 | 6 | 1 | |||||||||||||||
57146689 | ESTNB3020-25-09 FRESA IN MD 3F R1,0/1,7/25/65/6 | 2 | 50-63 | 65 | 1.7 | 25 | 6 | 1 | |||||||||||||||
46813619 | ESTNB3020-30-04 FRESA IN MD 3F R1,0/1,7/30/70/6 | 2 | 50-63 | 70 | 1.7 | 30 | 6 | 1 | |||||||||||||||
27575039 | ESTNB3020-30-09 FRESA IN MD 3F R1,0/1,7/30/70/6 | 2 | 50-63 | 70 | 1.7 | 30 | 6 | 1 | |||||||||||||||
79118239 | ESTNB3020-35-09 FRESA IN MD 3F R1,0/1,7/35/75/6 | 2 | 50-63 | 75 | 1.7 | 35 | 6 | 1 | |||||||||||||||
90817796 | ESTNB3020-40-04 FRESA IN MD 3F R1,0/1,7/40/80/6 | 2 | 50-63 | 80 | 1.7 | 40 | 6 | 1 | |||||||||||||||
40641080 | ESTNB3020-40-09 FRESA IN MD 3F R1,0/1,7/40/80/6 | 2 | 50-63 | 80 | 1.7 | 40 | 6 | 1 | |||||||||||||||
11089788 | ESTNB3020-50-09 FRESA IN MD 3F R1,0/1,7/50/90/6 | 2 | 50-63 | 90 | 1.7 | 50 | 6 | 1 | |||||||||||||||
18567732 | ESTNB3020-60-09 FRESA IN MD 3F R1,0/1,7/60/100/6 | 2 | 50-63 | 100 | 1.7 | 60 | 6 | 1 | |||||||||||||||
27452880 | ESTNB3020-70-09 FRESA IN MD 3F R1,0/1,7/70/110/6 | 2 | 50-63 | 110 | 1.7 | 70 | 6 | 1 | |||||||||||||||
76181672 | ESTNB3020-8-04 FRESA IN MD 3F R1,0/1,7/8/50/6 | 2 | 50-63 | 50 | 1.7 | 8 | 6 | 1 | |||||||||||||||
96786736 | ESTNB3030-16-04 FRESA IN MD 3F R1,5/2,5/16/55/6 | 3 | 50-63 | 55 | 2.5 | 16 | 6 | 1.5 | |||||||||||||||
17079089 | ESTNB3030-20-04 FRESA IN MD 3F R1,5/2,5/20/60/6 | 3 | 50-63 | 60 | 2.5 | 20 | 6 | 1.5 | |||||||||||||||
77527797 | ESTNB3030-30-04 FRESA IN MD 3F R1,5/2,5/30/70/6 | 3 | 50-63 | 70 | 2.5 | 30 | 6 | 1.5 | |||||||||||||||
85468022 | ESTNB3030-30-09 FRESA IN MD 3F R1,5/2,5/30/70/6 | 3 | 50-63 | 70 | 2.5 | 30 | 6 | 1.5 | |||||||||||||||
23571390 | ESTNB3030-40-04 FRESA IN MD 3F R1,5/2,5/40/80/6 | 3 | 50-63 | 80 | 2.5 | 40 | 6 | 1.5 | |||||||||||||||
44176454 | ESTNB3030-40-09 FRESA IN MD 3F R1,5/2,5/40/80/6 | 3 | 50-63 | 80 | 2.5 | 40 | 6 | 1.5 | |||||||||||||||
11810753 | ESTNB3030-50-09 FRESA IN MD 3F R1,5/2,5/50/90/6 | 3 | 50-63 | 90 | 2.5 | 50 | 6 | 1.5 | |||||||||||||||
72259462 | ESTNB3030-60-09 FRESA IN MD 3F R1,5/2,5/60/100/6 | 3 | 50-63 | 100 | 2.5 | 60 | 6 | 1.5 | |||||||||||||||
42708171 | ESTNB3030-70-09 FRESA IN MD 3F R1,5/2,5/70/110/6 | 3 | 50-63 | 110 | 2.5 | 70 | 6 | 1.5 | |||||||||||||||
53000523 | ESTNB3030-8-04 FRESA IN MD 3F R1,5/2,5/8/50/6 | 3 | 50-63 | 50 | 2.5 | 8 | 6 | 1.5 | |||||||||||||||
54387368 | ESTNB3040-20-10 FRESA IN MD 3F R2,0/8/20/70/8 | 4 | 50-63 | 70 | 8 | 20 | 8 | 2 | |||||||||||||||
52959803 | ESTNB3040-30-10 FRESA IN MD 3F R2,0/8/30/80/8 | 4 | 50-63 | 80 | 8 | 30 | 8 | 2 | |||||||||||||||
63252156 | ESTNB3040-40-10 FRESA IN MD 3F R2,0/8/40/90/8 | 4 | 50-63 | 90 | 8 | 40 | 8 | 2 | |||||||||||||||
81042811 | ESTNB3040-50-10 FRESA IN MD 3F R2,0/8/50/100/8 | 4 | 50-63 | 100 | 8 | 50 | 8 | 2 | |||||||||||||||
19146179 | ESTNB3040-60-10 FRESA IN MD 3F R2,0/8/60/110/8 | 4 | 50-63 | 110 | 8 | 60 | 8 | 2 | |||||||||||||||
10220311 | ESTNB3050-30-10 FRESA IN MD 3F R2,5/10/30/80/8 | 5 | 50-63 | 80 | 10 | 30 | 8 | 2.5 | |||||||||||||||
60356307 | ESTNB3050-40-10 FRESA IN MD 3F R2,5/10/40/90/8 | 5 | 50-63 | 90 | 10 | 40 | 8 | 2.5 | |||||||||||||||
50023236 | ESTNB3050-60-10 FRESA IN MD 3F R2,5/10/60/110/8 | 5 | 50-63 | 110 | 10 | 60 | 8 | 2.5 | |||||||||||||||

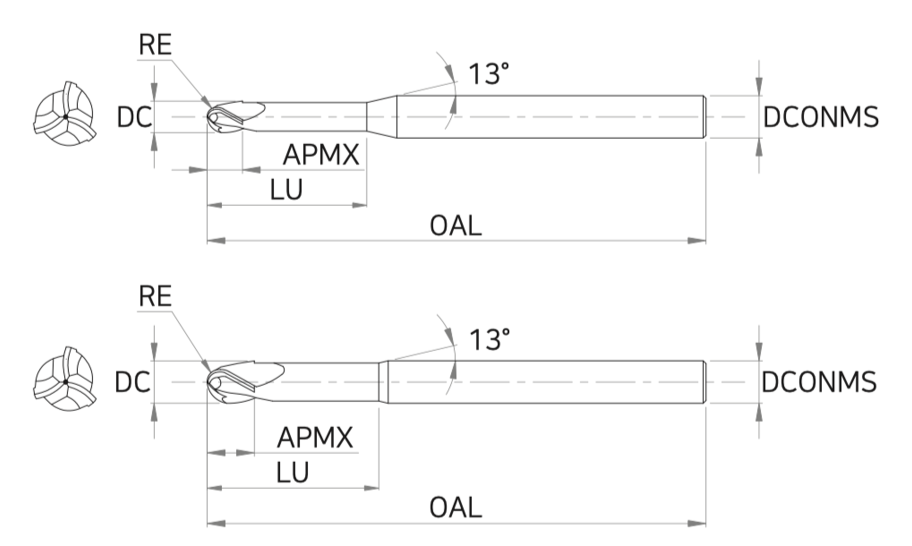

UB503 U-WING ![]() | |||||||||||||||||||||||
90831462 | UB503010 FRESA IN MD 3F R0,5/1/50/6 | 1 | 30-50 | 50 | 1 | 6 | 0.5 | ||||||||||||||||
89424259 | UB503015 FRESA IN MD 3F R0,75/1,5/50/6 | 1.5 | 30-50 | 50 | 1.5 | 6 | 0.75 | ||||||||||||||||
37860697 | UB503020 FRESA IN MD 3F R1,0/2/50/6 | 2 | 30-50 | 50 | 2 | 6 | 1 | ||||||||||||||||
86609849 | UB503030 FRESA IN MD 3F R1,5/3/60/6 | 3 | 30-50 | 60 | 3 | 6 | 1.5 | ||||||||||||||||
74889933 | UB503040 FRESA IN MD 3F R2,0/4/70/6 | 4 | 30-50 | 70 | 4 | 6 | 2 | ||||||||||||||||
63170017 | UB503050 FRESA IN MD 3F R2,5/5/80/6 | 5 | 30-50 | 80 | 5 | 6 | 2.5 | ||||||||||||||||
51450100 | UB503060 FRESA IN MD 3F R3,0/6/90/6 | 6 | 30-50 | 90 | 6 | 6 | 3 | ||||||||||||||||
79573827 | UB503080 FRESA IN MD 3F R4,0/8/100/8 | 8 | 30-50 | 100 | 8 | 8 | 4 | ||||||||||||||||
28010267 | UB503100 FRESA IN MD 3F R5,0/10/100/10 | 10 | 30-50 | 100 | 10 | 10 | 5 | ||||||||||||||||
16290351 | UB503120 FRESA IN MD 3F R6,0/12/110/12 | 12 | 30-50 | 110 | 12 | 12 | 6 | ||||||||||||||||

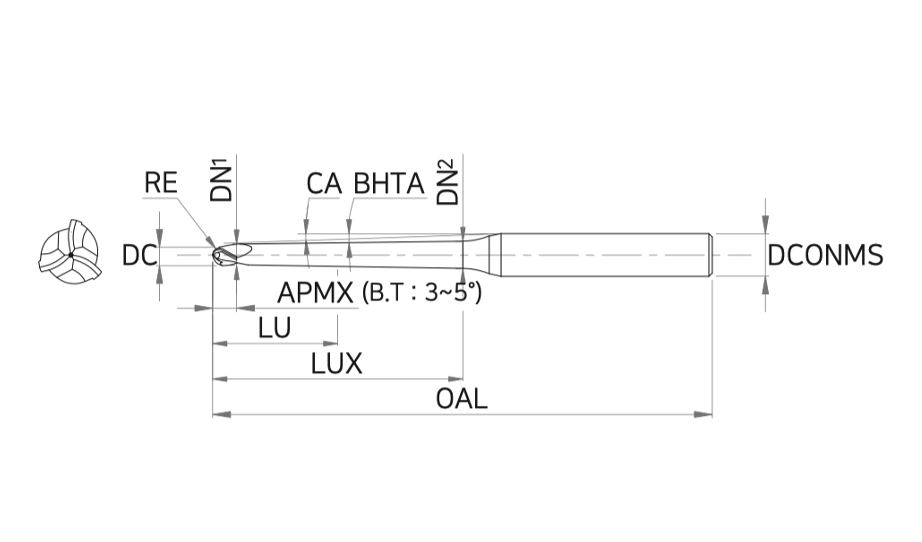

ZSTNB30 ZAMUS STAR ![]() | |||||||||||||||||||||||
12367831 | ZSTNB3020-12-04 FRESA IN MD 3F R1,0/1,7/12/55/6 | 2 | Fino a 55 | 55 | 1.7 | 12 | 6 | 1 | |||||||||||||||
12367832 | ZSTNB3020-16-04 FRESA IN MD 3F R1,0/1,7/16/60/6 | 2 | Fino a 55 | 60 | 1.7 | 16 | 6 | 1 | |||||||||||||||
12367833 | ZSTNB3020-20-04 FRESA IN MD 3F R1,0/1,7/20/65/6 | 2 | Fino a 55 | 65 | 1.7 | 20 | 6 | 1 | |||||||||||||||
12367834 | ZSTNB3020-20-09 FRESA IN MD 3F R1,0/1,7/20/65/6 | 2 | Fino a 55 | 65 | 1.7 | 20 | 6 | 1 | |||||||||||||||
12367835 | ZSTNB3020-25-09 FRESA IN MD 3F R1,0/1,7/25/65/6 | 2 | Fino a 55 | 65 | 1.7 | 25 | 6 | 1 | |||||||||||||||
12367836 | ZSTNB3020-30-04 FRESA IN MD 3F R1,0/1,7/30/70/6 | 2 | Fino a 55 | 70 | 1.7 | 30 | 6 | 1 | |||||||||||||||
12367837 | ZSTNB3020-30-09 FRESA IN MD 3F R1,0/1,7/30/70/6 | 2 | Fino a 55 | 70 | 1.7 | 30 | 6 | 1 | |||||||||||||||
12367838 | ZSTNB3020-35-09 FRESA IN MD 3F R1,0/1,7/35/75/6 | 2 | Fino a 55 | 75 | 1.7 | 35 | 6 | 1 | |||||||||||||||
12367839 | ZSTNB3020-40-04 FRESA IN MD 3F R1,0/1,7/40/80/6 | 2 | Fino a 55 | 80 | 1.7 | 40 | 6 | 1 | |||||||||||||||
12367840 | ZSTNB3020-40-09 FRESA IN MD 3F R1,0/1,7/40/80/6 | 2 | Fino a 55 | 80 | 1.7 | 40 | 6 | 1 | |||||||||||||||
12367841 | ZSTNB3020-50-09 FRESA IN MD 3F R1,0/1,7/50/90/6 | 2 | Fino a 55 | 90 | 1.7 | 50 | 6 | 1 | |||||||||||||||
12367842 | ZSTNB3020-60-09 FRESA IN MD 3F R1,0/1,7/60/100/6 | 2 | Fino a 55 | 100 | 1.7 | 60 | 6 | 1 | |||||||||||||||
12367843 | ZSTNB3020-70-09 FRESA IN MD 3F R1,0/1,7/70/110/6 | 2 | Fino a 55 | 110 | 1.7 | 70 | 6 | 1 | |||||||||||||||
12367844 | ZSTNB3020-8-04 FRESA IN MD 3F R1,0/1,7/8/50/6 | 2 | Fino a 55 | 50 | 1.7 | 8 | 6 | 1 | |||||||||||||||
12369718 | ZSTNB3030-16-04 FRESA IN MD 3F R1,5/2,5/16/55/6 | 3 | Fino a 55 | 55 | 2.5 | 16 | 6 | 1.5 | |||||||||||||||
12369719 | ZSTNB3030-20-04 FRESA IN MD 3F R1,5/2,5/20/60/6 | 3 | Fino a 55 | 60 | 2.5 | 20 | 6 | 1.5 | |||||||||||||||
12369720 | ZSTNB3030-30-04 FRESA IN MD 3F R1,5/2,5/30/70/6 | 3 | Fino a 55 | 70 | 2.5 | 30 | 6 | 1.5 | |||||||||||||||
12369721 | ZSTNB3030-30-09 FRESA IN MD 3F R1,5/2,5/30/70/6 | 3 | Fino a 55 | 70 | 2.5 | 30 | 6 | 1.5 | |||||||||||||||
12369722 | ZSTNB3030-40-04 FRESA IN MD 3F R1,5/2,5/40/80/6 | 3 | Fino a 55 | 80 | 2.5 | 40 | 6 | 1.5 | |||||||||||||||
12369723 | ZSTNB3030-40-09 FRESA IN MD 3F R1,5/2,5/40/80/6 | 3 | Fino a 55 | 80 | 2.5 | 40 | 6 | 1.5 | |||||||||||||||
12369724 | ZSTNB3030-50-09 FRESA IN MD 3F R1,5/2,5/50/90/6 | 3 | Fino a 55 | 90 | 2.5 | 50 | 6 | 1.5 | |||||||||||||||
12369727 | ZSTNB3030-60-09 FRESA IN MD 3F R1,5/2,5/60/100/6 | 3 | Fino a 55 | 100 | 2.5 | 60 | 6 | 1.5 | |||||||||||||||
12369725 | ZSTNB3030-70-09 FRESA IN MD 3F R1,5/2,5/70/110/6 | 3 | Fino a 55 | 110 | 2.5 | 70 | 6 | 1.5 | |||||||||||||||
12369726 | ZSTNB3030-8-04 FRESA IN MD 3F R1,5/2,5/8/50/6 | 3 | Fino a 55 | 50 | 2.5 | 8 | 6 | 1.5 | |||||||||||||||
12370818 | ZSTNB3040-20-10 FRESA IN MD 3F R2,0/8/20/70/8 | 4 | Fino a 55 | 70 | 8 | 20 | 8 | 2 | |||||||||||||||
12370819 | ZSTNB3040-30-10 FRESA IN MD 3F R2,0/8/30/80/8 | 4 | Fino a 55 | 80 | 8 | 30 | 8 | 2 | |||||||||||||||
12370820 | ZSTNB3040-40-10 FRESA IN MD 3F R2,0/8/40/90/8 | 4 | Fino a 55 | 90 | 8 | 40 | 8 | 2 | |||||||||||||||
12370821 | ZSTNB3040-50-10 FRESA IN MD 3F R2,0/8/50/100/8 | 4 | Fino a 55 | 100 | 8 | 50 | 8 | 2 | |||||||||||||||
12370822 | ZSTNB3040-60-10 FRESA IN MD 3F R2,0/8/60/110/8 | 4 | Fino a 55 | 110 | 8 | 60 | 8 | 2 | |||||||||||||||
12373981 | ZSTNB3050-30-10 FRESA IN MD 3F R2,5/10/30/80/8 | 5 | Fino a 55 | 80 | 10 | 30 | 8 | 2.5 | |||||||||||||||
12373982 | ZSTNB3050-40-10 FRESA IN MD 3F R2,5/10/40/90/8 | 5 | Fino a 55 | 90 | 10 | 40 | 8 | 2.5 | |||||||||||||||
12373983 | ZSTNB3050-60-10 FRESA IN MD 3F R2,5/10/60/110/8 | 5 | Fino a 55 | 110 | 10 | 60 | 8 | 2.5 |
