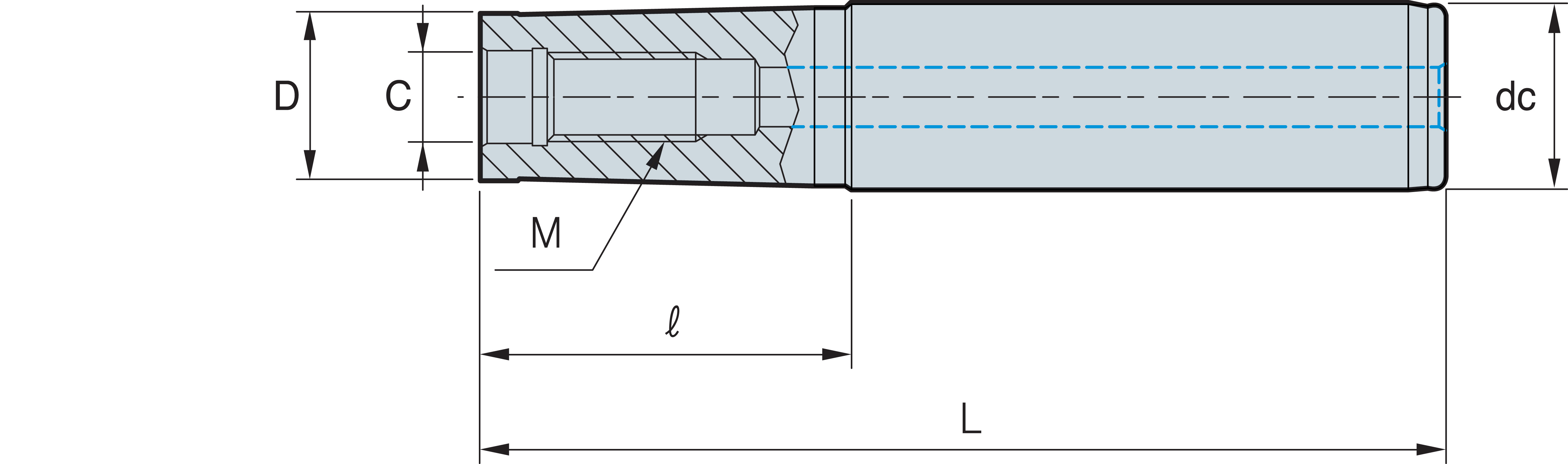

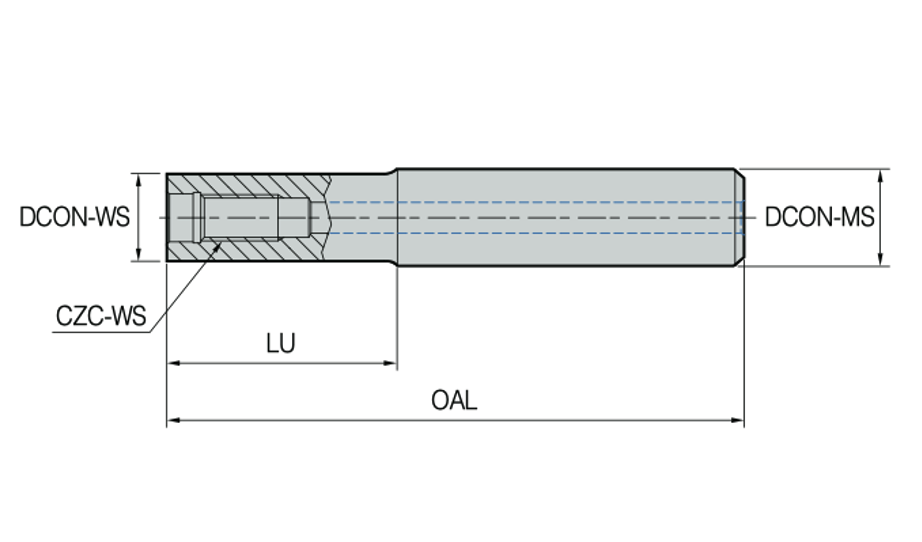

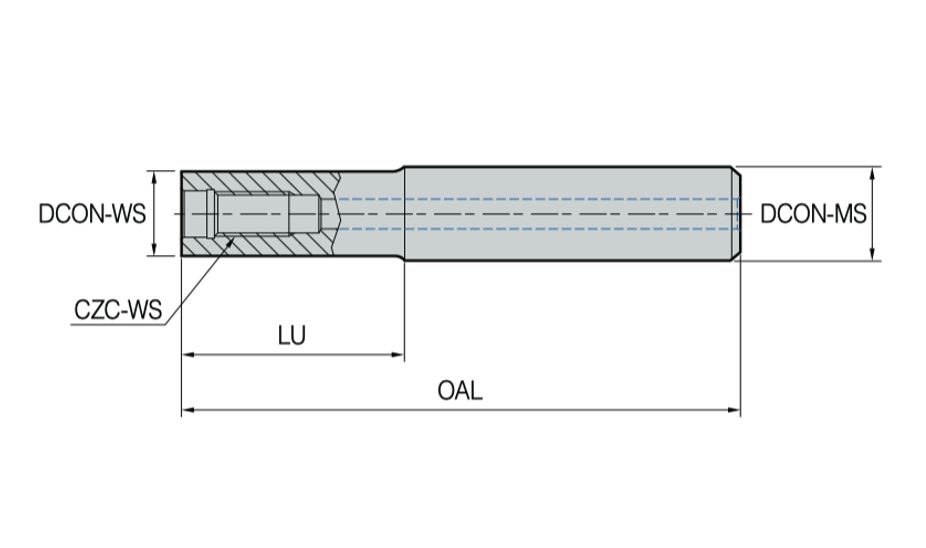

Prolunghe

Lunghezza (L) OAL

Lunghezza Utile (l) LE/LU/APMX/LCF

Attacco Filettato (M)

Diametro Attacco (dc) DCONS-MS (CIL)

Centraggio (C)

DCONS-WS

Codice	Descrizione	Lunghezza (L) OAL	Lunghezza Utile (l) LE/LU/APMX/LCF	Attacco Filettato (M)	Diametro Attacco (dc) DCONS-MS (CIL)	Centraggio (C)	DCONS-WS
MAT C
69793124	MAT-M08-010-S16S-C-150 ADATTATORI MODULARI	150	10	M08	16	8.5	14.5
60867257	MAT-M08-010-S16S-C-180 ADATTATORI MODULARI	180	10	M08	16	8.5	14.5
71159609	MAT-M08-010-S16S-C-250 ADATTATORI MODULARI	250	10	M08	16	8.5	14.5
12346109	MAT-M08-080-S16S-C ADATTATORI MODULARI	150	80	M8	16	8.5	14.5
12346088	MAT-M08-110-S16S-C ADATTATORI MODULARI	180	110	M8	16	8.5	14.5
12346123	MAT-M08-150-S16S-C ADATTATORI MODULARI	250	150	M8	16	8.5	14.5
82859166	MAT-M10-010-S20S-C-170 ADATTATORI MODULARI	170	10	M10	20	10.5	18
12346075	MAT-M10-010-S20S-C-200 ADATTATORI MODULARI	200	10	M10	20	10.5	18
71118890	MAT-M10-010-S20S-C-300 ADATTATORI MODULARI	300	10	M10	20	10.5	18
12346099	MAT-M10-090-S20S-C ADATTATORI MODULARI	170	90	M10	20	10.5	18
12346079	MAT-M10-110-S20S-C ADATTATORI MODULARI	200	110	M10	20	10.5	18
87539733	MAT-M10-175-S20S-C ADATTATORI MODULARI	300	175	M10	20	10.5	18
32662089	MAT-M12-015-S25S-C-170 ADATTATORI MODULARI	170	15	M12	25	12.5	22.5
63579867	MAT-M12-015-S25S-C-200 ADATTATORI MODULARI	200	15	M12	25	12.5	22.5
72465014	MAT-M12-015-S25S-C-300 ADATTATORI MODULARI	300	15	M12	25	12.5	22.5
12346091	MAT-M12-090-S25S-C ADATTATORI MODULARI	170	90	M12	25	12.5	22.5
21070325	MAT-M12-110-S25S-C ADATTATORI MODULARI	200	110	M12	25	12.5	22.5
50580897	MAT-M12-175-S25S-C ADATTATORI MODULARI	300	175	M12	25	12.5	22.5
53226434	MAT-M16-020-S32S-C-180 ADATTATORI MODULARI	180	20	M16	32	17.0	28.5
73831499	MAT-M16-020-S32S-C-210 ADATTATORI MODULARI	210	20	M16	32	17.0	28.5
18571430	MAT-M16-020-S32S-C-300 ADATTATORI MODULARI	300	20	M16	32	17.0	28.5
12346080	MAT-M16-090-S32S-C ADATTATORI MODULARI	180	90	M16	32	17.0	28.5
43832616	MAT-M16-120-S32S-C ADATTATORI MODULARI	210	120	M16	32	17.0	28.5
12346095	MAT-M16-175-S32S-C ADATTATORI MODULARI	300	175	M16	32	17.0	28.5
MAT S
12346125	MAT-M06-020-S10S ADATTATORI MODULARI	70	20	M6	10	6.5
12346096	MAT-M08-020-S16S ADATTATORI MODULARI	80	20	M8	16	8.5
12346086	MAT-M10-030-S20S ADATTATORI MODULARI	100	30	M10	20	10.5
12346078	MAT-M12-030-S25S ADATTATORI MODULARI	110	30	M12	25	12.5
12346122	MAT-M16-035-S32S ADATTATORI MODULARI	125	35	M16	32	17.0
12346106	MAT-M6B-020-S12S ADATTATORI MODULARI	76	20	M6	12	6.5
12346089	MAT-M6B-040-S12S ADATTATORI MODULARI	96	40	M6	12	6.5
MAT T
12346120	MAT-M06-040-S12T ADATTATORI MODULARI	96	40	M6	12	6.5
12346101	MAT-M06-065-S16T ADATTATORI MODULARI	125	65	M6	16	6.5
12346077	MAT-M08-040-S16T ADATTATORI MODULARI	100	40	M8	16	8.5
12346090	MAT-M08-065-S16T ADATTATORI MODULARI	125	65	M8	16	8.5
12346126	MAT-M08-080-S20T ADATTATORI MODULARI	150	80	M8	20	8.5
12346107	MAT-M08-110-S25T ADATTATORI MODULARI	190	110	M8	25	8.5
12346121	MAT-M10-050-S20T ADATTATORI MODULARI	120	50	M10	20	10.5
12346102	MAT-M10-070-S20T ADATTATORI MODULARI	140	70	M10	20	10.5
12346082	MAT-M10-090-S25T ADATTATORI MODULARI	170	90	M10	25	10.5
12346114	MAT-M10-110-S25T ADATTATORI MODULARI	190	110	M10	25	10.5
12346097	MAT-M10-130-S32T ADATTATORI MODULARI	220	130	M10	32	10.5
12346112	MAT-M12-050-S25T ADATTATORI MODULARI	130	50	M12	25	12.5
12346093	MAT-M12-070-S25T ADATTATORI MODULARI	150	70	M12	25	12.5
12346127	MAT-M12-090-S25T ADATTATORI MODULARI	170	90	M12	25	12.5
12346108	MAT-M12-110-S32T ADATTATORI MODULARI	200	110	M12	32	12.5
12346087	MAT-M12-175-S40T ADATTATORI MODULARI	300	175	M12	40	12.5
12346103	MAT-M16-055-S32T ADATTATORI MODULARI	145	55	M16	32	17.0
12346083	MAT-M16-080-S32T ADATTATORI MODULARI	170	80	M16	32	17.0
12346117	MAT-M16-120-S32T ADATTATORI MODULARI	210	120	M16	32	17.0
12346098	MAT-M16-175-S40T ADATTATORI MODULARI	300	175	M16	40	17.0
12346081	MAT-M6B-065-S16T ADATTATORI MODULARI	125	65	M6	16	6.5
12346116	MAT-M6B-080-S16T ADATTATORI MODULARI	140	80	M6	16	6.5
S-IHCC
23348549	S-IHCC20167-M10 L.TOT 167 SCAR.37 ADATTATORI MODULARI	167	37	M10	20	10.5	19.6
76136076	S-IHCC20217-M10 L.TOT 217 SCAR.37 ADATTATORI MODULARI	217	37	M10	20	10.5	19.6
85945787	S-IHCC25212-M12 L.TOT 212 SCAR.62 ADATTATORI MODULARI	212	62	M12	25	12.5	24.6
66224566	S-IHCC25262-M12 L.TOT 262 SCAR.62 ADATTATORI MODULARI	262	62	M12	25	12.5	24.6
87754194	S-IHCC30155-M16 L.TOT 155 SCAR.55 ADATTATORI MODULARI	155	55	M16	32	17.0	29.5
81160094	S-IHCC30205-M16 L.TOT 205 SCAR.55 ADATTATORI MODULARI	205	55	M16	32	17.0	29.5
67067690	S-IHCC30255-M16 L.TOT 255 SCAR.55 ADATTATORI MODULARI	255	55	M16	32	17.0	29.5
