Frese Smussi Integrali

Diametro Lavoro (DL) DC

Numero Taglienti (Z)

Lunghezza (L1) LU

Lunghezza (L2)

D2 D.Gambo

L3 L.Scarico

Angolo/Elica

Diametro (d)

Codice	Descrizione	Diametro Lavoro (DL) DC	Numero Taglienti (Z)	Lunghezza (L1) LU	Lunghezza (L2)	D2 D.Gambo	L3 L.Scarico	Angolo/Elica	Diametro (d)
BFT
76085187	BFT0660W D6.0X1.73X15/50-6	6	4	1.73	15	6	50	60
12372205	BFT0690W D6.0X2.8X15/50-6	6	4	2.8	15	6	50	90
49959165	BFT0860W D8.0X3.8X20/60-8	8	4	3.8	20	8	60	60
12371282	BFT0890W D8.0X3.8X20/60-8	8	4	3.8	20	8	60	90
58260288	BFT1060W D10.0X2.8X25/70-10		4	2.8	25	10	70	60
12370366	BFT1090W D10.0X4.8X25/70-10	10	4	4.8	25	10	70	90
82581331	BFT1260W D12.0X3.4X30/75-12		4	3.4	30	12	75	60
12371184	BFT1290W D12.0X5.8X30/75-12	12	4	5.8	30	12	75	90

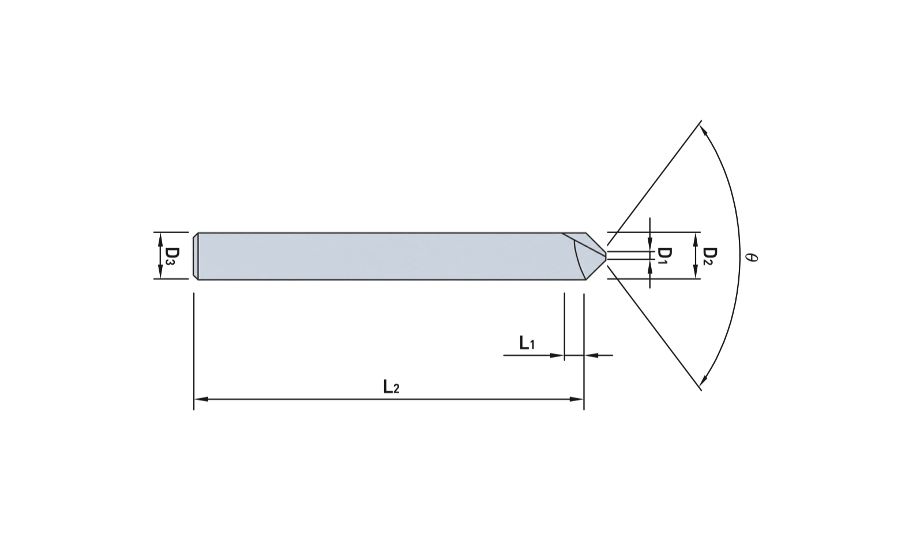

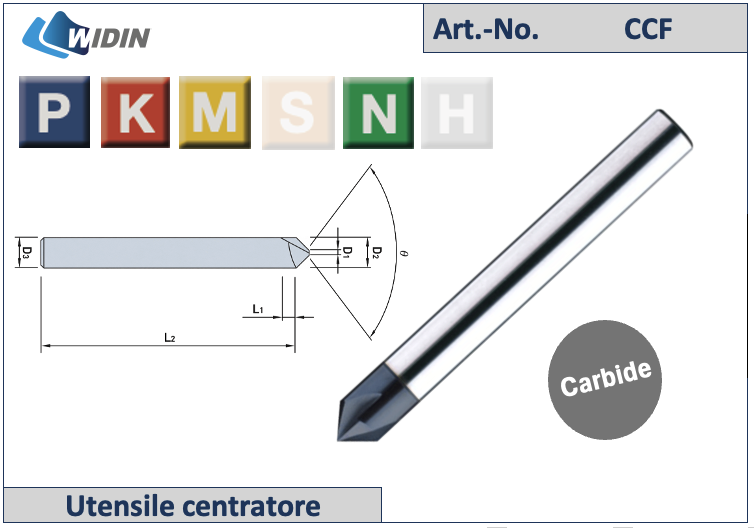

CCF CENTERING TOOL
73731446	CCF502020S4 D2,0/0,85/50/4/90°			0.85	50	6		90	2
39978900	CCF502040S4 D4,0/1,85/50/4/90°			1.85	50	6		90	4
57789917	CCF502060 D6,0/2,85/50/6/90°			2.85	50	6		90	6
85913644	CCF502080 D8,0/3,8/60/8 90°			3.8	60	8		90	8
84506439	CCF502100 D10,0/4,75/70/10/90°			4.75	70	10		90	10
83099235	CCF502120 D12,0/5,75/75/12/90°			5.75	75	12		90	12
CCT CENTERING TOOL
12371470	CCT502080 D8,0/4/65/8 90°			4	65	8		90	8
12370210	CCT502100 D10,0/5/70/10 90°			5	70	10		90	10
CES CENTERING TOOL
69489473	CES302020 D2,0/5/50/3/90°		2	5	50	3		90	2
47456844	CES302020-C D2,0/5/50/3/90°		2	5	50	3		90	2
12369233	CES302030 D3,0/6/50/6/90°	3	2	6	50	6		90	3
22609807	CES302030-060S3 D3,0/6/50/3/60°		2	6	50	3		60	3
84486080	CES302030-C D3,0/6/50/6/90°		2	6	50	6		90	3
39013619	CES302030S3 D3,0/6/50/3/90°		2	6	50	3		90	3
27293702	CES302030S3-C D3,0/6/50/3/90°		2	6	50	3		90	3
12370082	CES302040 D4,0/8/50/6/90°	4	2	8	50	6		90	4
33384801	CES302040-060S4 D4,0/8/50/4/60°		2	8	50	4		60	4
61508529	CES302040-060S4-C D4,0/8/50/4/60°		2	8	50	4		60	4
68413478	CES302040-C D4,0/8/50/6/90°	4	2	8	50	6		90	4
79319543	CES302040S4 D4,0/8/50/4/90°		2	8	50	4		90	4
46974203	CES302040S4-C D4,0/8/50/4/90°		2	8	50	4		90	4
12373563	CES302050 D5,0/10/50/6/90°	5	2	10	50	6		90	5
11814454	CES302050-060S5 D5,0/10/50/5/60°		2	10	50	5		60	5
90094537	CES302050-060S5-C D5,0/10/50/5/60°		2	10	50	5		60	5
33847082	CES302050-C D5,0/10/50/6/90°		2	10	50	6		90	5
78374621	CES302050S5 D5,0/10/50/5/90°		2	10	50	5		90	5
66654705	CES302050S5-C D5,0/10/50/5/90°		2	10	50	5		90	5
12372283	CES302060 D6,0/12/60/6/90°	6	2	12	60	6		90	6
12372135	CES302060-C D6,0/12/60/6/90°	6	2	12	60	6		90	6
12371462	CES302080 D8,0/16/70/8/90°	8	2	16	70	8		90	8
67116986	CES302080-060 D8,0/16/70/8/60°		2	16	70	8		60	8
65709782	CES302080-060-C D8,0/16/70/8/60°		2	16	70	8		60	8
12371189	CES302080-C D8,0/16/70/8/90°	8	2	16	70	8		90	8
12370368	CES302100 D10,0/18/70/10 90°	10	2	18	70	10		90	10
82113593	CES302100-060 D10,0/18/70/10/60°		2	18	70	10		60	10
70393677	CES302100-060-C D10,0/18/70/10/60°		2	18	70	10		60	10
12370284	CES302100-C D10,0/18/70/10 90°	10	2	18	70	10		90	10
12371461	CES302120 D12,0/20/75/12 90°	12	2	20	75	12		90	12
36641131	CES302120-060 D12,0/20/75/12/60°		2	20	75	12		60	12
64764858	CES302120-060-C D12,0/20/75/12/60°		2	20	75	12		60	12
12371324	CES302120-C D12,0/20/75/12 90°	12	2	20	75	12		90	12
12374211	CES302140 D14,0/24/80/14 90°	14	2	24	80	14		90	14
61950450	CES302140-C D14,0/24/80/14 90°		2	24	80	14		90	14
12373562	CES302160 D16,0/26/80/16 90°	16	2	26	80	16		90	16
12373333	CES302160-C D16,0/26/80/16 90°	16	2	26	80	16		90	16
12374566	CES302200 D20,0/32/100/20 90°	20	2	32	100	20		90	20
12374567	CES302200-C D20,0/32/100/20 90°	20	2	32	100	20		90	20
CFT CENTERING TOOL
96165276	CFT0660W D6,0/5,1/50/6 60°	6	3	5.1	50	6		60	6
84445360	CFT0690W D6,0/3/50/6 90°	6	3	3.0	50	6		90	6
12371336	CFT0860W D8,0/6,9/60/8/60°	8	3	6.9	60	8		60	8
40380103	CFT0890W D8,0/4/60/8/90,0°	8	3	4	60	8		90	8
12370369	CFT1060W D10.0/8.6/70/10 60°	10	4	8.6	70	10		90	10
46471202	CFT1090W D10,0/5/70/10 90°	10	4	5	70	10		90	10
12371069	CFT1260W D12.0X10.3/75-12 60°	12	4	6	75	12		60	12
12718657	CFT1290W D12,0/6/75/12 90°	12	4	6	75	12		90	12

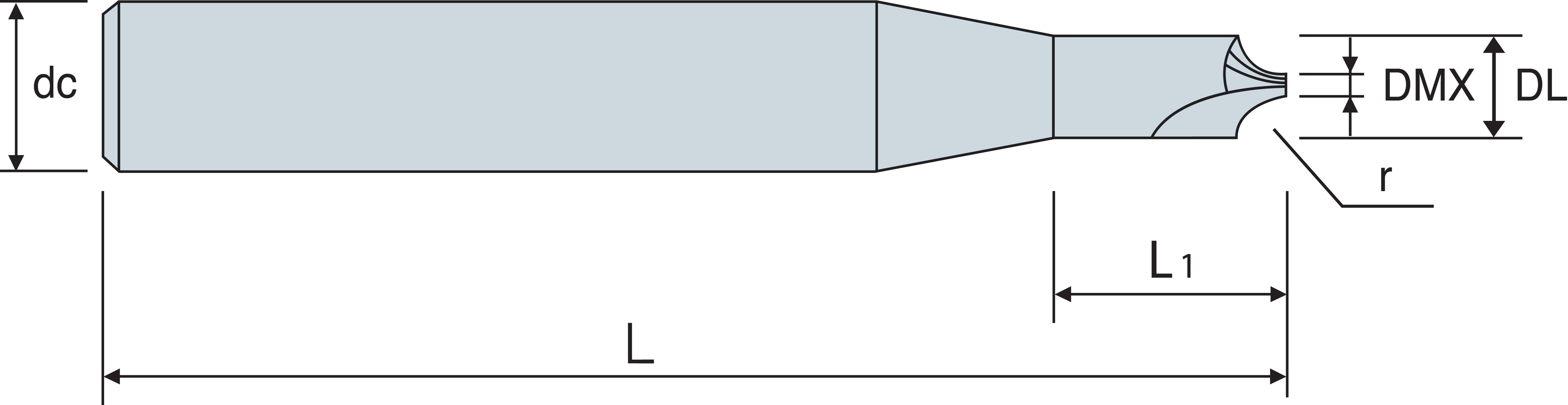

CRC CENTERING TOOL
12367396	CRC209050 D0,9/3/45/4/R0,5	0.9	2	3.0	45	4			0.9
12372527	CRC209075 D0,9/4/45/4/R0,75	0.9	2	4	45	4			0.9
12369152	CRC209100 D0,9/5/50/6/R1,0	0.9	2	5	50	6			0.9
12371468	CRC214150 D1,4/8/50/6/R1,5	1.4	2	8	50	6			1.4
12375556	CRC214200 D1,4/10/50/6/R2,0	1.4	2	10	50	6			1.4
12375370	CRC219250 D1,9/13/60/8/R2,5	1.9	2	13	60	8			1.9
12371467	CRC219300 D1,9/3/60/8/R3,0	1.9	2	3.0	60	8			1.9
12375487	CRC219350 D1,9/13/70/10/R3,5	1.9	2	13	70	10			1.9
12370186	CRC219400 D1,9/4/70/10/R4,0	1.9	2	4	70	10			1.9
12375258	CRC219450 D1,9/13/80/12/R4,5	1.9	2	13	80	12			1.9
12371466	CRC219500 D1,9/5/80/12/R5,0	1.9	2	5	80	12			1.9
12371299	CRC239200 D3,9/2/60/8/R2,0	3.9	2	2.0	60	8			3.9
12373173	CRC239600 D3,9/6/85/16/R6,0	3.9	2	6	85	16			3.9
12374570	CRC239800 D3,9/8/85/20/R8,0	3.9	2	8	85	20			3.9
12371269	CRC249150 D4,9/1,5/60/8/R1,5	4.9	2	1.5	60	8			4.9
12371181	CRC259100 D5,9/1/60/8/R1,0	5.9	2	1.0	60	8			5.9
12374571	CRC259700 D5,9/7/85/20/R7,0	5.9	2	7	85	20			5.9

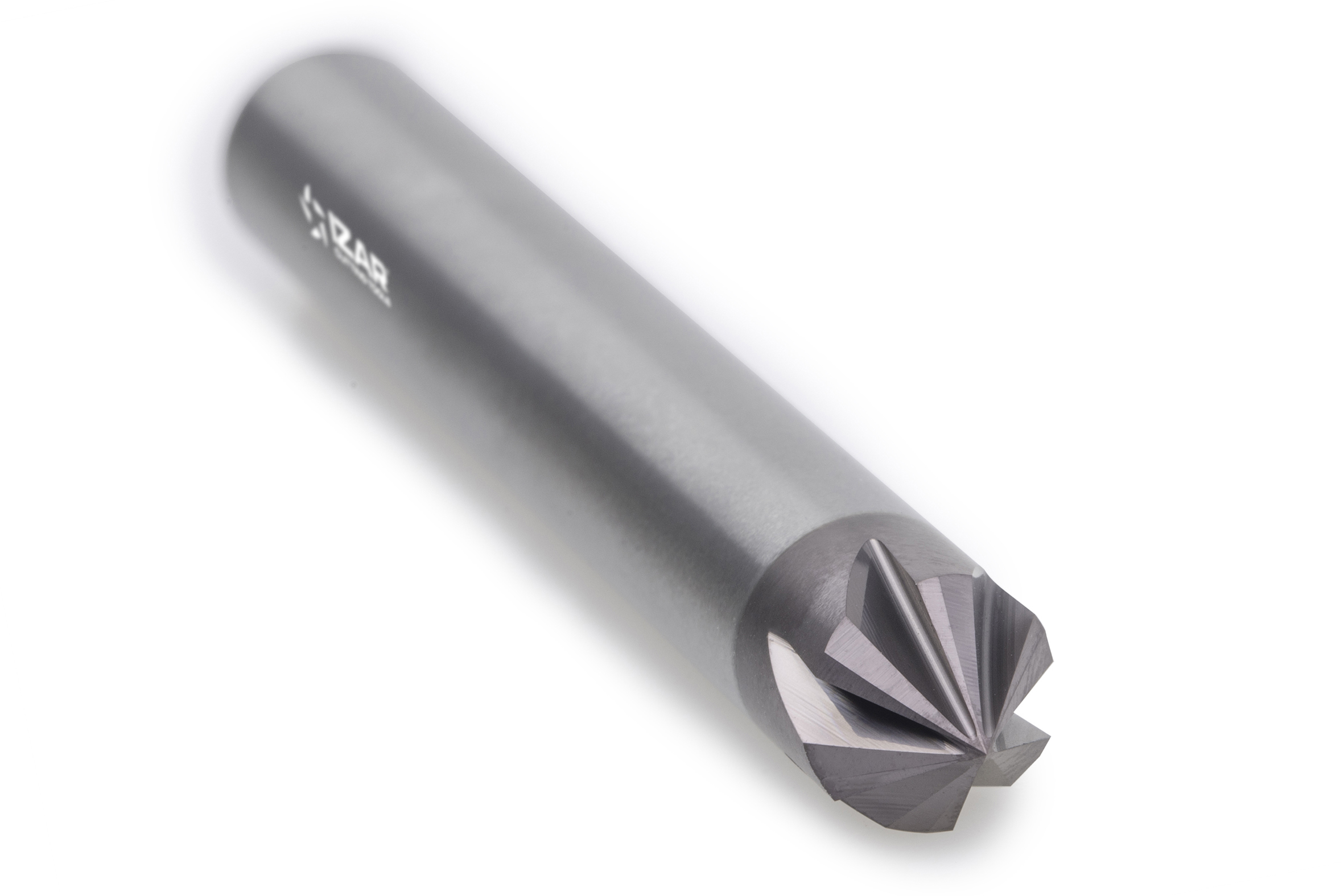

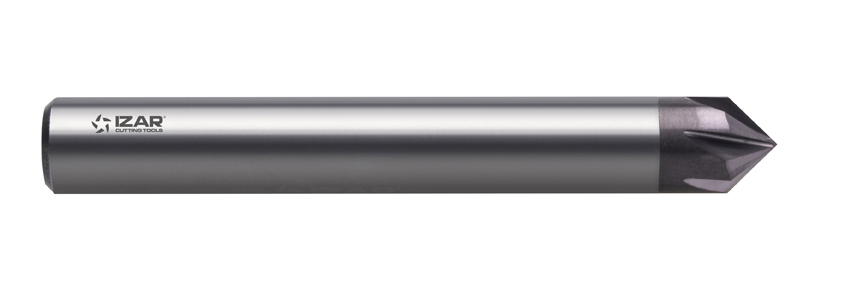

IZAR - 9451
16705556	(80557) CFTP0490-Z4 D4,0 90° Z4 TIALCN SMUSSATORE (80557)		4		50	4
84221474	(80563) CFTP0890-Z5 D8,0 90° Z5 TIALCN SMUSSATORE (80563)		5		60	8
79026506	(80564) CFTP1090-Z6 D10,0 90° Z6 TIALCN SMUSSATORE (80564)		6		75.00	10
61112290	CFTP1290-Z6 D12,0 90° Z6 TIALCN SMUSSATORE (80565)		6		75.00	12
LDS CENTERING TOOL
60577602	LDS030 D3,0/9/50/3 90°			9	50	3		90	3
12369320	LDS030A D3,0/9/50/3/120°			9	50	3		120	3
84479714	LDS040 D4,0/10/50/4 90°			10	50	4		90	4
68579244	LDS040A D4,0/10/50/4/120°			10	50	4		120	4
12373565	LDS050 D5,0/12/50/5/90°			12	50	5		90	5
12373157	LDS050A D5,0/12/50/5/120°			12	50	5		120	5
54466143	LDS060 D6,0/13/60/6/90°			13	60	6		90	6
46546617	LDS060A D6,0/13/60/6/120°			13	60	6		120	6
43691151	LDS080 D8,0/23/70/8 90°			23	70	8		90	8
74670342	LDS080A D8,0/23/70/8/120°			23	70	8		120	8
26674168	LDS100 D10,0/24/80/10 90°			24	80	10		90	10
12794075	LDS100A D10,0/24/80/10/120°			24	80	10		120	10
10733702	LDS120 D12,0/28/80/12 90°			28	80	12		90	12
40917800	LDS120A D12,0/28/80/12/120°			28	80	12		120	12
69041525	LDS160 D16,0/32/90/16 90°			32	90	16		90	16
12373137	LDS160A D16,0/32/90/16/120°			32	90	16		120	16
12374569	LDS200 D20,0/35/100/20 90°			35	100	20		90	20
12374344	LDS200A D20,0/35/100/20/120°			35	100	20		120	20
