Z6 - Piana

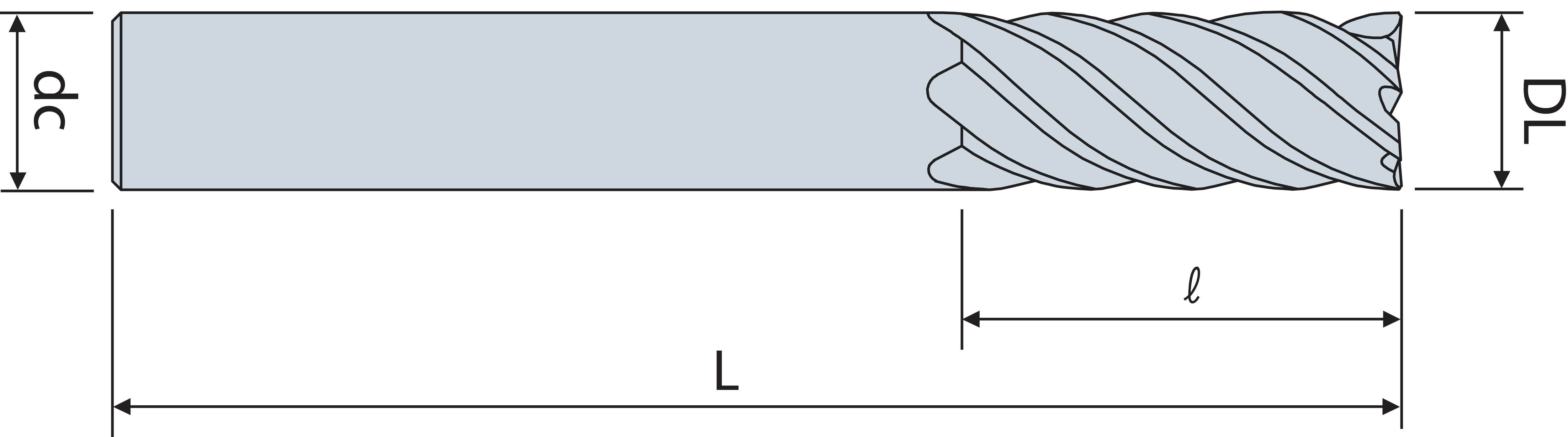

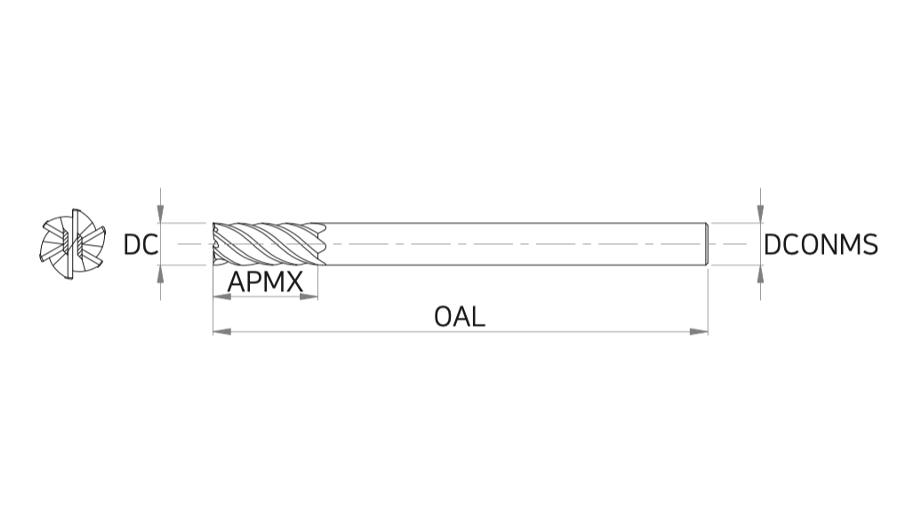

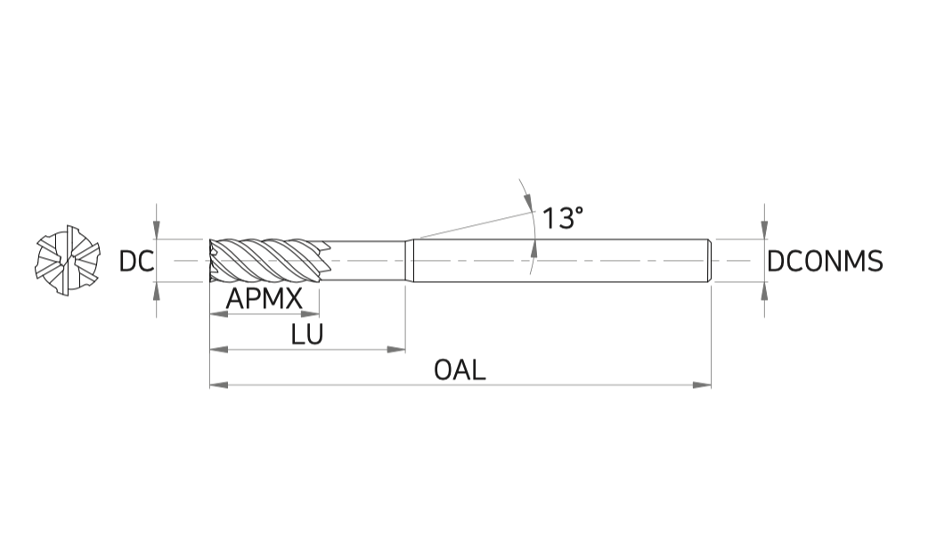

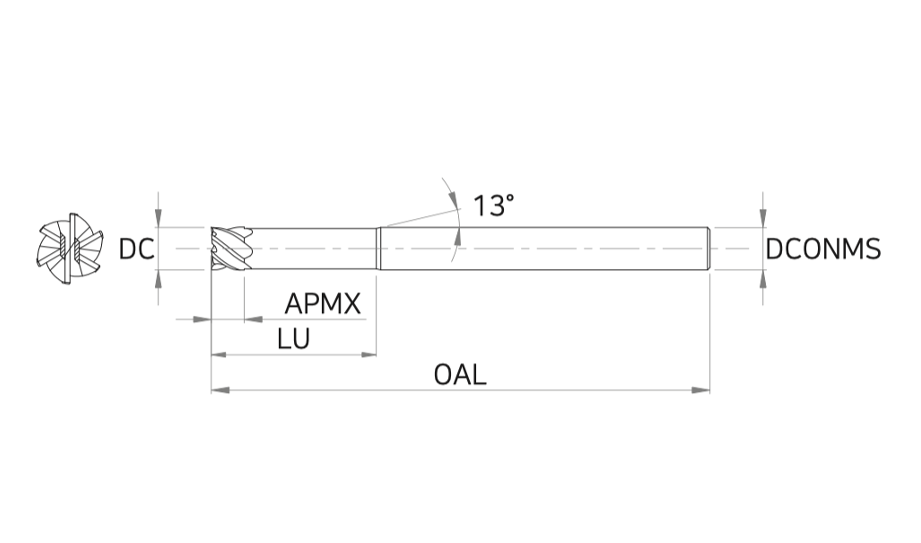

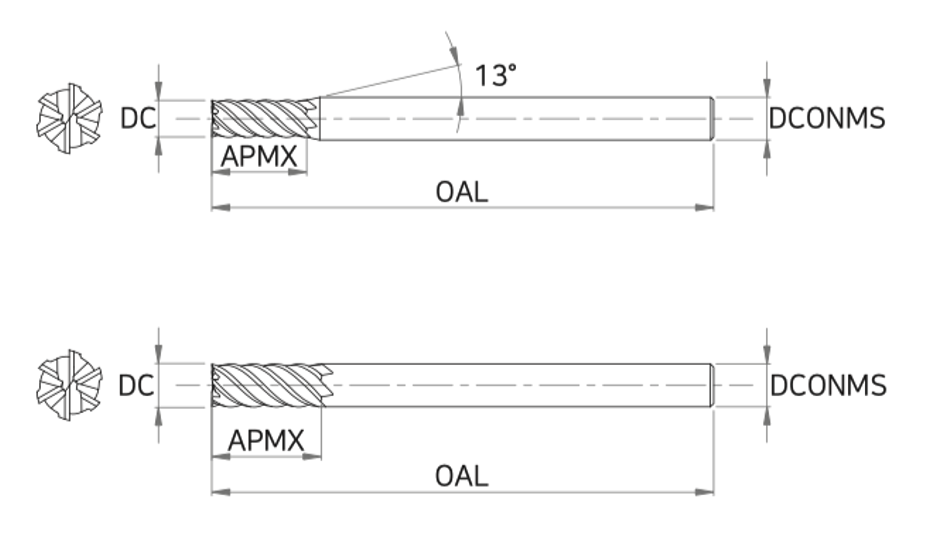

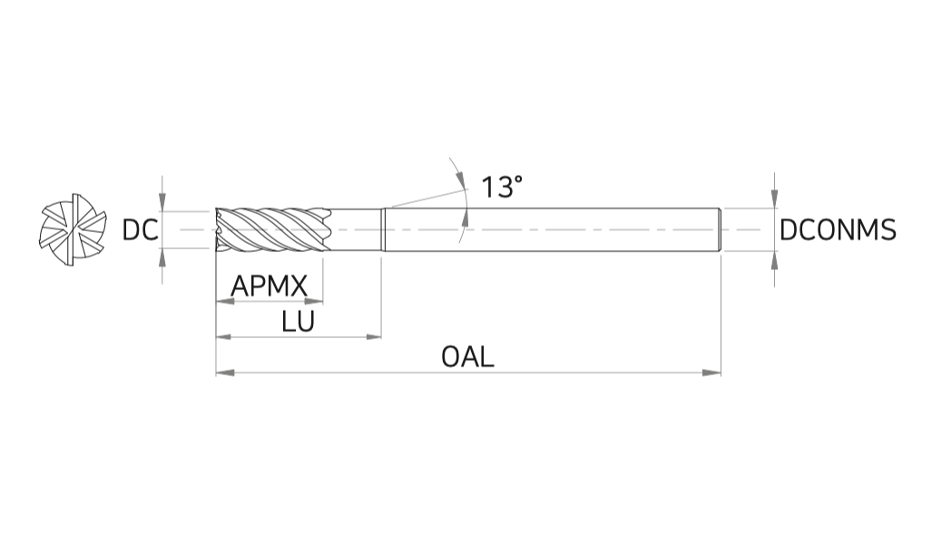

Diametro Lavoro (DL) DC

Numero Taglienti (Z)

Diametro Attacco (dc) DCONS-MS (CIL)

HRc

Lunghezza Utile (l) LE/LU/APMX/LCF

Lunghezza (L) OAL

Angolo/Elica

Inclinazione (y') BHTA

DN2

Lunghezza (L1) LU

Codice	Descrizione	Diametro Lavoro (DL) DC	Numero Taglienti (Z)	Diametro Attacco (dc) DCONS-MS (CIL)	HRc	Lunghezza Utile (l) LE/LU/APMX/LCF	Lunghezza (L) OAL	Angolo/Elica	Inclinazione (y') BHTA	DN2	Lunghezza (L1) LU
- ESE716 E-STAR
36315710	ESE716060 - E-STAR FRESA IN MD 6F D6,0/13/50/6	6.0	6	6	50-63	13	50	45	45
43793654	ESE716080 - E-STAR FRESA IN MD 6F D8,0/18/60/8	8.0	6	8	50-63	18	60	45	45
11427954	ESE716100 - E-STAR FRESA IN MD 6F D10,0/22/70/10	10.0	6	10	50-63	22	70	45	45
97185981	ESE716120 - E-STAR FRESA IN MD 6F D12,0/26/75/12	12.0	6	12	50-63	26	75	45	45
84038501	ESE716160 - E-STAR FRESA IN MD 6F D16,0/35/90/16	16.0	6	16	50-63	35	90	45	45
28232967	ESE716200 - E-STAR FRESA IN MD 6F D20,0/44/100/20	20.0	6	20	50-63	44	100	45	45
- SE506 S-WING
77416925	SE506060 - S-WING FRESA IN MD 6F D6,0/15/22/60/6	6.0	6	6	INOX	15	60	45			22
65697008	SE506080 - S-WING FRESA IN MD 6F D8,0/20/27/70/8	8.0	6	8	INOX	20	70	45			27
14133448	SE506100 - S-WING FRESA IN MD 6F D10,0/25/33/75/10	10.0	6	10	INOX	25	75	45			33
42257175	SE506120 - S-WING FRESA IN MD 6F D12,0/30/40/80/12	12.0	6	12	INOX	30	80	45			40
80693615	SE506160 - S-WING FRESA IN MD 6F D16,0/42/52/100/16	16.0	6	16	INOX	42	100	45			52
18817343	SE506200 - S-WING FRESA IN MD 6F D20,0/48/58/100/20	20.0	6	20	INOX	48	100	45			58
- UE506 U-WING
34817821	UE506060 - U-WING FRESA IN MD 6F D6,0/15/60/6	6.0	6	6	30-50	15	60	45	45	0.23
86843658	UE50606020 - U-WING FRESA IN MD 6F D6,0/20/70/6	6.0	6	6	30-50	20	70	45	45
55789360	UE50606030 - U-WING FRESA IN MD 6F D6,0/30/80/6	6.0	6	6	30-50	30	80	45	45
76877063	UE50606030110 - U-WING FRESA IN MD 6F D6,0/30/110/6	6.0	6	6	30-50	30	110	45	45
16196925	UE506070 - U-WING FRESA IN MD 6F D7,0/18/60/8	7.0	6	8	30-50	18	60	45	45
71248246	UE506080 - U-WING FRESA IN MD 6F D8,0/20/70/8	8.0	6	8	30-50	20	70	45	45
48325783	UE50608030 - U-WING FRESA IN MD 6F D8,0/30/80/8	8.0	6	8	30-50	30	80	45	45
92370676	UE50608035 - U-WING FRESA IN MD 6F D8,0/35/90/8	8.0	6	8	30-50	35	90	45	45
36585508	UE50608040 - U-WING FRESA IN MD 6F D8,0/40/90/8	8.0	6	8	30-50	40	90	45	45
97979133	UE50608040130 - U-WING FRESA IN MD 6F D8,0/40/130/8	8.0	6	8	30-50	40	130	45	45
81349888	UE506090 - U-WING FRESA IN MD 6F D9,0/22/70/10	9.0	6	10	30-50	22	70	45	45
81214841	UE506100 - U-WING FRESA IN MD 6F D10,0/25/75/10	10.0	6	10	30-50	25	75	45	45
30917203	UE50610030 - U-WING FRESA IN MD 6F D10,0/30/80/10	10.0	6	10	30-50	30	80	45	45
77063829	UE50610040 - U-WING FRESA IN MD 6F D10,0/40/90/10	10.0	6	10	30-50	40	90	45	45
45932936	UE50610050 - U-WING FRESA IN MD 6F D10,0/50/100/10	10.0	6	10	30-50	50	100	45	45
80147759	UE50610050150 - U-WING FRESA IN MD 6F D10,0/50/150/10	10.0	6	10	30-50	50	150	45	45
25564714	UE506110 - U-WING FRESA IN MD 6F D11,0/26/75/12	11.0	6	12	30-50	26	75	45	45
32242884	UE506120 - U-WING FRESA IN MD 6F D12,0/30/80/12	12.0	6	12	30-50	30	80	45	45
95337124	UE50612040 - U-WING FRESA IN MD 6F D12,0/40/90/12	12.0	6	12	30-50	40	90	45	45
55955765	UE50612050 - U-WING FRESA IN MD 6F D12,0/50/100/12	12.0	6	12	30-50	50	100	45	45
97668891	UE50612060 - U-WING FRESA IN MD 6F D12,0/60/110/12	12.0	6	12	30-50	60	110	45	45
40476519	UE50612060150 - U-WING FRESA IN MD 6F D12,0/60/150/12	12.0	6	12	30-50	60	150	45	45
59779541	UE506130 - U-WING FRESA IN MD 6F D13,0/32/85/14	13.0	6	14	30-50	32	85	45	45
48059624	UE506140 - U-WING FRESA IN MD 6F D14,0/32/85/14	14.0	6	14	30-50	32	85	45	45
12161267	UE506160 - U-WING FRESA IN MD 6F D16,0/40/100/16	16.0	6	16	30-50	40	100	45	45
46756848	UE506160110 - U-WING FRESA IN MD 6F D16,0/110/200/16	16.0	6	16	30-50	110	200	45	45
65030143	UE506160110250 - U-WING FRESA IN MD 6F D16,0/110/250/16	16.0	6	16	30-50	110	250	45	45
94956282	UE50616050 - U-WING FRESA IN MD 6F D16,0/50/110/16	16.0	6	16	30-50	50	110	45	45
71358926	UE50616060 - U-WING FRESA IN MD 6F D16,0/60/120/16	16.0	6	16	30-50	60	120	45	45
20019968	UE50616090 - U-WING FRESA IN MD 6F D16,0/90/150/16	16.0	6	16	30-50	90	150	45	45
20398179	UE506180 - U-WING FRESA IN MD 6F D18,0/44/100/18	18.0	6	18	30-50	44	100	45	45
68087721	UE506200 - U-WING FRESA IN MD 6F D20,0/45/100/20	20.0	6	20	30-50	45	100	45	45
84792167	UE506200110 - U-WING FRESA IN MD 6F D20,0/110/200/20	20.0	6	20	30-50	110	200	45	45
39700467	UE506200110250 - U-WING FRESA IN MD 6F D20,0/110/250/20	20.0	6	20	30-50	110	250	45	45
83283078	UE506200110300 - U-WING FRESA IN MD 6F D20,0/110/300/20	20.0	6	20	30-50	110	300	45	45
65934347	UE50620060 - U-WING FRESA IN MD 6F D20,0/60/120/20	20.0	6	20	30-50	60	120	45	45
30474049	UE50620070 - U-WING FRESA IN MD 6F D20,0/70/130/20	20.0	6	20	30-50	70	130	45	45
22267664	UE506250 - U-WING FRESA IN MD 6F D25,0/50/120/25	25.0	6	25	30-50	50	120	45	45
50391392	UE506251 - U-WING FRESA IN MD 6F D25,0/92/180/25	25.0	6	25	30-50	92	180	45	45

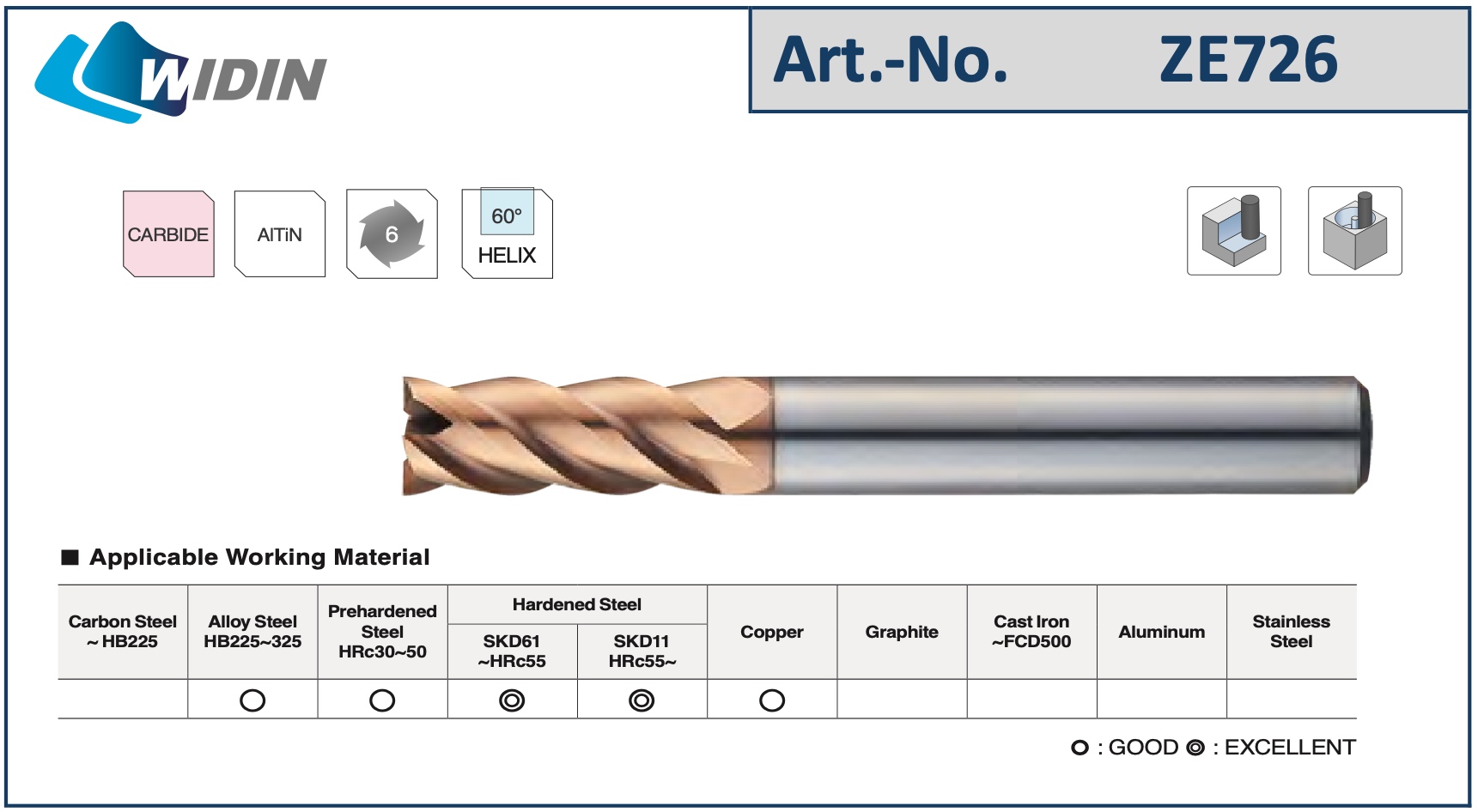

- ZE726 ZAMUS STAR
85336260	ZE726060 - ZAMUS STAR FRESA IN MD 6F D6,0/7/20/60/6	6.0	6	6	Fino a 70	7	60	60	60		20
12372001	ZE726080 - ZAMUS STAR FRESA IN MD 6F D8,0/9/25/70/8	8.0	6	8	Fino a 70	9	70	60	60		25
61896427	ZE726100 - ZAMUS STAR FRESA IN MD 6F D10,0/12/32/75/10	10.0	6	10	Fino a 70	12	75	60	60		32
79707443	ZE726120 - ZAMUS STAR FRESA IN MD 6F D12,0/15/38/80/12	12.0	6	12	Fino a 70	15	80	60	60		38
ESE726 E-STAR
17349362	ESE726060 - E-STAR FRESA IN MD 6F D6,0/7/20/60/6	6.0	6	6	50-63	7	60	60	60		20
64670950	ESE726080 - E-STAR FRESA IN MD 6F D8,0/9/25/70/8	8.0	6	8	50-63	9	70	60	60		25
83868809	ESE726100 - E-STAR FRESA IN MD 6F D10,0/12/32/75/10	10.0	6	10	50-63	12	75	60	60		32
85255654	ESE726120 - E-STAR FRESA IN MD 6F D12,0/15/38/80/12	12.0	6	12	50-63	15	80	60	60		38

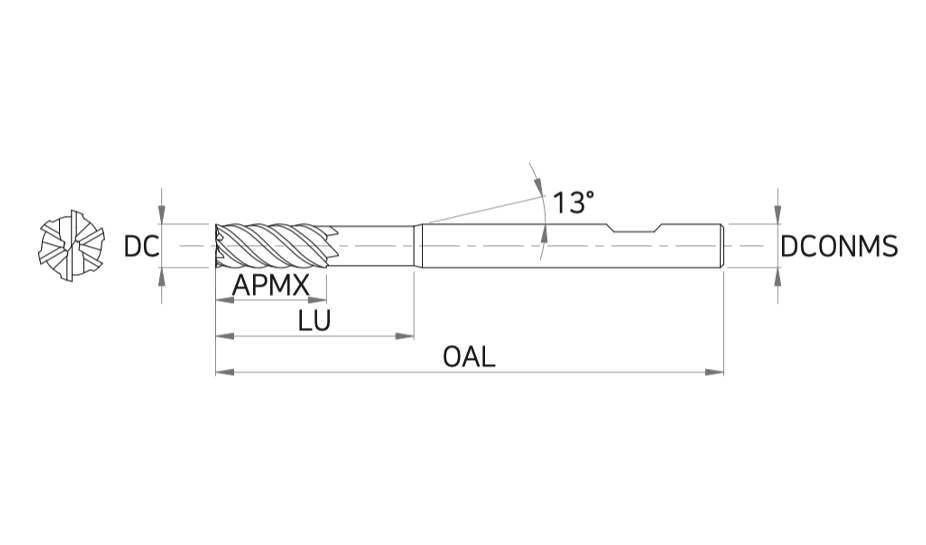

SE506 WELDON S-WING
10440572	SE506060F 6F D6.0 X 15/50-6 WELDON	6	6	6	INOX	15	50	45
19325719	SE506080F 6F D8.0 X 18/60-8 WELDON	8	6	8	INOX	18	60	45
98992648	SE506100F 6F D10.0 X 22/70-10 WELDON	10	6	10	INOX	22	70	45
38503220	SE506120F 6F D12.0 X 26/75-12 WELDON	12	6	12	INOX	26	75	45
47388368	SE506160F 6F D16.0 X 35/90-16 WELDON	16	6	16	INOX	35	90	45
97524364	SE506200F 6F D20.0 X 44/100-20 WELDON	20	6	20	INOX	44	100	45
ZE716 ZAMUS STAR
12373062	ZE716060 - ZAMUS STAR FRESA IN MD 6F D6,0/13/50/6	6.0	6	6	Fino a 70	13	50	50	50
12373063	ZE716080 - ZAMUS STAR FRESA IN MD 6F D8,0/18/60/8	8.0	6	8	Fino a 70	18	60	50	50
12371999	ZE716100 - ZAMUS STAR FRESA IN MD 6F D10,0/22/70/10	10.0	6	10	Fino a 70	22	70	50	50
12372000	ZE716120 - ZAMUS STAR FRESA IN MD 6F D12,0/26/75/12	12.0	6	12	Fino a 70	26	75	50	50
12374082	ZE716160 - ZAMUS STAR FRESA IN MD 6F D16,0/35/90/16	16.0	6	16	Fino a 70	35	90	50	50
12375079	ZE716200 - ZAMUS STAR FRESA IN MD 6F D20,0/44/100/20	20.0	6	20	Fino a 70	44	100	50	50
