Z2 - Conica Sferica

Diametro Lavoro (DL) DC

Numero Taglienti (Z)

Diametro Attacco (dc) DCONS-MS (CIL)

Raggio RE

HRc

Lunghezza Utile (l) LE/LU/APMX/LCF

Lunghezza (L) OAL

Angolo/Elica

Inclinazione (y') BHTA

DN2

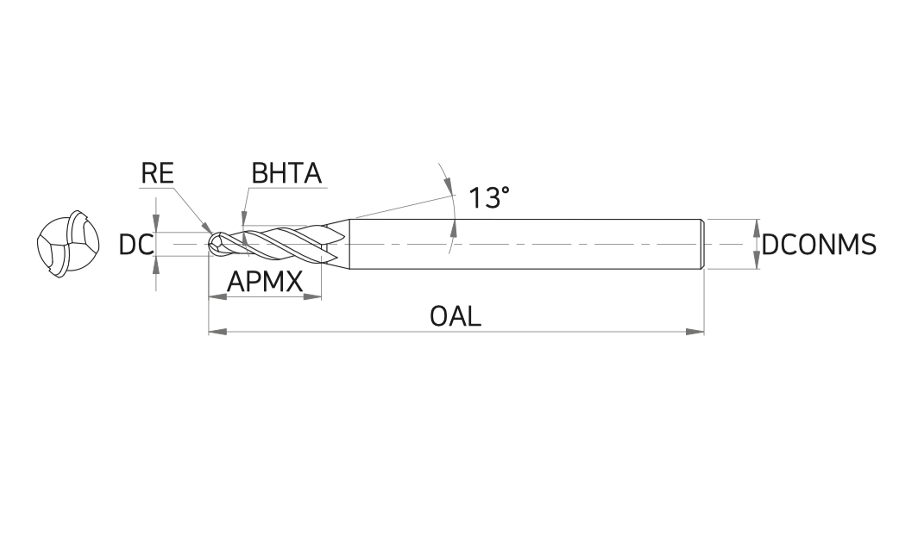

Codice	Descrizione	Diametro Lavoro (DL) DC	Numero Taglienti (Z)	Diametro Attacco (dc) DCONS-MS (CIL)	Raggio RE	HRc	Lunghezza Utile (l) LE/LU/APMX/LCF	Lunghezza (L) OAL	Angolo/Elica	Inclinazione (y') BHTA	DN2
UTB502 U-WING
92817029	UTB502003005 - U-WING FRESA IN MD 2F R0,15/1,2/40/4 , 0,5°	0.3	2	4	0.15	30-50	1.2	40	30	0.5
70784401	UTB50200301 - U-WING FRESA IN MD 2F R0,15/1,2/40/4 , 1°	0.3	2	4	0.15	30-50	1.2	40	30	1
38439060	UTB502003015 - U-WING FRESA IN MD 2F R0,15/1,2/40/4 , 1,5°	0.3	2	4	0.15	30-50	1.2	40	30	1.5
96093720	UTB50200302 - U-WING FRESA IN MD 2F R0,15/1,2/40/4 , 2°	0.3	2	4	0.15	30-50	1.2	40	30	2
43122955	UTB50200303 - U-WING FRESA IN MD 2F R0,15/1,2/40/4 , 3°	0.3	2	4	0.15	30-50	1.2	40	30	3
10777613	UTB50200305 - U-WING FRESA IN MD 2F R0,15/1,2/40/4 , 5°	0.3	2	4	0.15	30-50	1.2	40	30	5
68432274	UTB50200307 - U-WING FRESA IN MD 2F R0,15/1,5/40/4 , 7°	0.3	2	4	0.15	30-50	1.5	40	30	7
96556001	UTB50200310 - U-WING FRESA IN MD 2F R0,15/1,5/40/4 , 10°	0.3	2	4	0.15	30-50	1.5	40	30	10
83428880	UTB502004005 - U-WING FRESA IN MD 2F R0,2/1,6/40/4 , 0,5°	0.4	2	4	0.2	30-50	1.6	40	30	0.5
61396251	UTB50200401 - U-WING FRESA IN MD 2F R0,2/1,6/40/4 , 1°	0.4	2	4	0.2	30-50	1.6	40	30	1
79207267	UTB502004015 - U-WING FRESA IN MD 2F R0,2/1,6/40/4 , 1,5°	0.4	2	4	0.2	30-50	1.6	40	30	1.5
86705571	UTB50200402 - U-WING FRESA IN MD 2F R0,2/1,6/40/4 , 2°	0.4	2	4	0.2	30-50	1.6	40	30	2
14516585	UTB50200403 - U-WING FRESA IN MD 2F R0,2/1,6/40/4 , 3°	0.4	2	4	0.2	30-50	1.6	40	30	3
32327602	UTB50200405 - U-WING FRESA IN MD 2F R0,2/1,6/40/4 , 5°	0.4	2	4	0.2	30-50	1.6	40	30	5
10294973	UTB50200407 - U-WING FRESA IN MD 2F R0,2/2/40/4 , 7°	0.4	2	4	0.2	30-50	2	40	30	7
78262344	UTB50200410 - U-WING FRESA IN MD 2F R0,2/2/40/4 , 10°	0.4	2	4	0.2	30-50	2	40	30	10
66542428	UTB502005005 - U-WING FRESA IN MD 2F R0,25/2/45/4 , 0,5°	0.5	2	4	0.25	30-50	2	45	30	0.5
44509799	UTB50200501 - U-WING FRESA IN MD 2F R0,25/2/45/4 , 1°	0.5	2	4	0.25	30-50	2	45	30	1
21069967	UTB502005015 - U-WING FRESA IN MD 2F R0,25/2/45/4 , 1,5°	0.5	2	4	0.25	30-50	2	45	30	1.5
18255557	UTB50200502 - U-WING FRESA IN MD 2F R0,25/2/45/4 , 2°	0.5	2	4	0.25	30-50	2	45	30	2
86222929	UTB50200503 - U-WING FRESA IN MD 2F R0,25/2/45/4 3°	0.5	2	4	0.25	30-50	2	45	30	3
14033945	UTB50200505 - U-WING FRESA IN MD 2F R0,25/2/45/4 , 5°	0.5	2	4	0.25	30-50	2	45	30	5
42157672	UTB50200507 - U-WING FRESA IN MD 2F R0,25/2,5/45/4 , 7°	0.5	2	4	0.25	30-50	2.5	45	30	7
70281400	UTB50200510 - U-WING FRESA IN MD 2F R0,25/2,5/45/4 , 10°	0.5	2	4	0.25	30-50	2.5	45	30	10
18717839	UTB502006005 - U-WING FRESA IN MD 2F R0,3/2/45/4 , 0,5°	0.6	2	4	0.3	30-50	2	45	30	0.5
86685211	UTB50200601 - U-WING FRESA IN MD 2F R0,3/2/45/4 , 1°	0.6	2	4	0.3	30-50	2	45	30	1
74965294	UTB502006015 - U-WING FRESA IN MD 2F R0,3/2/45/4 , 1,5°	0.6	2	4	0.3	30-50	2	45	30	1.5
23401734	UTB50200602 - U-WING FRESA IN MD 2F R0,3/2/45/4 , 2°	0.6	2	4	0.3	30-50	2	45	30	2
61838173	UTB50200603 - U-WING FRESA IN MD 2F R0,3/2/45/4 , 3°	0.6	2	4	0.3	30-50	2	45	30	3
69336476	UTB50200605 - U-WING FRESA IN MD 2F R0,3/2/45/4 , 5°	0.6	2	4	0.3	30-50	2	45	30	5
47303849	UTB50200607 - U-WING FRESA IN MD 2F R0,3/2,5/45/4 , 7°	0.6	2	4	0.3	30-50	2.5	45	30	7
65114863	UTB50200610 - U-WING FRESA IN MD 2F R0,3/2,5/45/4 , 10°	0.6	2	4	0.3	30-50	2.5	45	30	10
72613167	UTB502007005 - U-WING FRESA IN MD 2F R0,35/2,5/45/4 , 0,5°	0.7	2	4	0.35	30-50	2.5	45	30	0.5
10736894	UTB50200701 - U-WING FRESA IN MD 2F R0,35/2,5/45/4 , 1°	0.7	2	4	0.35	30-50	2.5	45	30	1
78704266	UTB502007015 - U-WING FRESA IN MD 2F R0,35/2,5/45/4 , 1,5°	0.7	2	4	0.35	30-50	2.5	45	30	1.5
36046214	UTB50200702 - U-WING FRESA IN MD 2F R0,35/2,5/45/4 , 2°	0.7	2	4	0.35	30-50	2.5	45	30	2
14013585	UTB50200703 - U-WING FRESA IN MD 2F R0,35/2,5/45/4 , 3°	0.7	2	4	0.35	30-50	2.5	45	30	3
59948328	UTB50200705 - U-WING FRESA IN MD 2F R0,35/2,5/45/4 , 5°	0.7	2	4	0.35	30-50	2.5	45	30	5
77759343	UTB50200707 - U-WING FRESA IN MD 2F R0,35/3/45/4 , 7°	0.7	2	4	0.35	30-50	3	45	30	7
55726715	UTB50200710 - U-WING FRESA IN MD 2F R0,35/3/45/4 , 10°	0.7	2	4	0.35	30-50	3	45	30	10
83850442	UTB502008005 - U-WING FRESA IN MD 2F R0,4/3,2/45/4 , 0,5°	0.8	2	4	0.4	30-50	3.2	45	30	0.5
72130526	UTB50200801 - U-WING FRESA IN MD 2F R0,4/3,2/45/4 , 1°	0.8	2	4	0.4	30-50	3.2	45	30	1
50097897	UTB502008015 - U-WING FRESA IN MD 2F R0,4/3,2/45/4 , 1,5°	0.8	2	4	0.4	30-50	3.2	45	30	1.5
76814420	UTB50200802 - U-WING FRESA IN MD 2F R0,4/3,2/45/4 , 2°	0.8	2	4	0.4	30-50	3.2	45	30	2
14938148	UTB50200803 - U-WING FRESA IN MD 2F R0,4/3,2/45/4 , 3°	0.8	2	4	0.4	30-50	3.2	45	30	3
31341958	UTB50200805 - U-WING FRESA IN MD 2F R0,4/3,2/45/4 , 5°	0.8	2	4	0.4	30-50	3.2	45	30	5
88996619	UTB50200807 - U-WING FRESA IN MD 2F R0,4/3,2/45/4 , 7°	0.8	2	4	0.4	30-50	3.2	45	30	7
27120346	UTB50200810 - U-WING FRESA IN MD 2F R0,4/3,2/45/4 , 10°	0.8	2	4	0.4	30-50	3.2	45	30	10
55244073	UTB502010005 - U-WING FRESA IN MD 2F R0,5/4/50/4 , 0,5°	1.0	2	4	0.5	30-50	4	50	30	0.5	0.24
12586020	UTB50201001 - U-WING FRESA IN MD 2F R0,5/4/50/4 , 1°	1.0	2	4	0.5	30-50	4	50	30	1
90866104	UTB502010015 - U-WING FRESA IN MD 2F R0,5/4/50/4 , 1,5°	1.0	2	4	0.5	30-50	4	50	30	1.5
77738984	UTB50201002 - U-WING FRESA IN MD 2F R0,5/4/50/4 , 2°	1.0	2	4	0.5	30-50	4	50	30	2
13048302	UTB50201003 - U-WING FRESA IN MD 2F R0,5/4/50/4 , 3°	1.0	2	4	0.5	30-50	4	50	30	3
67888553	UTB50201005 - U-WING FRESA IN MD 2F R0,5/4/50/4 , 5°	1.0	2	4	0.5	30-50	4	50	30	5
13510584	UTB50201007 - U-WING FRESA IN MD 2F R0,5/4/50/4 , 7°	1.0	2	4	0.5	30-50	4	50	30	7
71165243	UTB50201010 - U-WING FRESA IN MD 2F R0,5/4/50/4 , 10°	1.0	2	4	0.5	30-50	4	50	30	10
27099986	UTB502015005 - U-WING FRESA IN MD 2F R0,75/6/50/4 , 0,5°	1.5	2	4	0.75	30-50	6	50	30	0.5
74441933	UTB50201501 - U-WING FRESA IN MD 2F R0,75/6/50/4 , 1°	1.5	2	4	0.75	30-50	6	50	30	1
42096593	UTB502015015 - U-WING FRESA IN MD 2F R0,75/6/50/4 , 1,5°	1.5	2	4	0.75	30-50	6	50	30	1.5
30376676	UTB50201502 - U-WING FRESA IN MD 2F R0,75/7/50/4 , 2°	1.5	2	4	0.75	30-50	7	50	30	2
98344048	UTB50201503 - U-WING FRESA IN MD 2F R0,75/8/50/4 , 3°	1.5	2	4	0.75	30-50	8	50	30	3
76311419	UTB50201505 - U-WING FRESA IN MD 2F R0,75/10/50/4 , 5°	1.5	2	4	0.75	30-50	10	50	30	5
14435146	UTB50201507 - U-WING FRESA IN MD 2F R0,75/10/50/4 , 7°	1.5	2	4	0.75	30-50	10	50	30	7
41151670	UTB50201510 - U-WING FRESA IN MD 2F R0,75/10/50/6 , 10°	1.5	2	6	0.75	30-50	10	50	30	10
78180905	UTB502020005 - U-WING FRESA IN MD 2F R1,0/6/50/4 , 0,5°	2.0	2	4	1	30-50	6	50	30	0.5
54741072	UTB50202001 - U-WING FRESA IN MD 2F R1,0/6/50/4 , 1°	2.0	2	4	1	30-50	6	50	30	1
72552088	UTB502020015 - U-WING FRESA IN MD 2F R1,0/6/50/4 , 1,5°	2.0	2	4	1	30-50	6	50	30	1.5
10675815	UTB50202002 - U-WING FRESA IN MD 2F R1,0/10/50/4 , 2°	2.0	2	4	1	30-50	10	50	30	2
28486831	UTB50202003 - U-WING FRESA IN MD 2F R1,0/10/50/4 , 3°	2.0	2	4	1	30-50	10	50	30	3
56610559	UTB50202005 - U-WING FRESA IN MD 2F R1,0/10/50/4 , 5°	2.0	2	4	1	30-50	10	50	30	5
44890642	UTB50202007 - U-WING FRESA IN MD 2F R1,0/10/50/6 , 7°	2.0	2	6	1	30-50	10	50	30	7
62701657	UTB50202010 - U-WING FRESA IN MD 2F R1,0/11/50/6 , 10°	2.0	2	6	1	30-50	11	50	30	10
